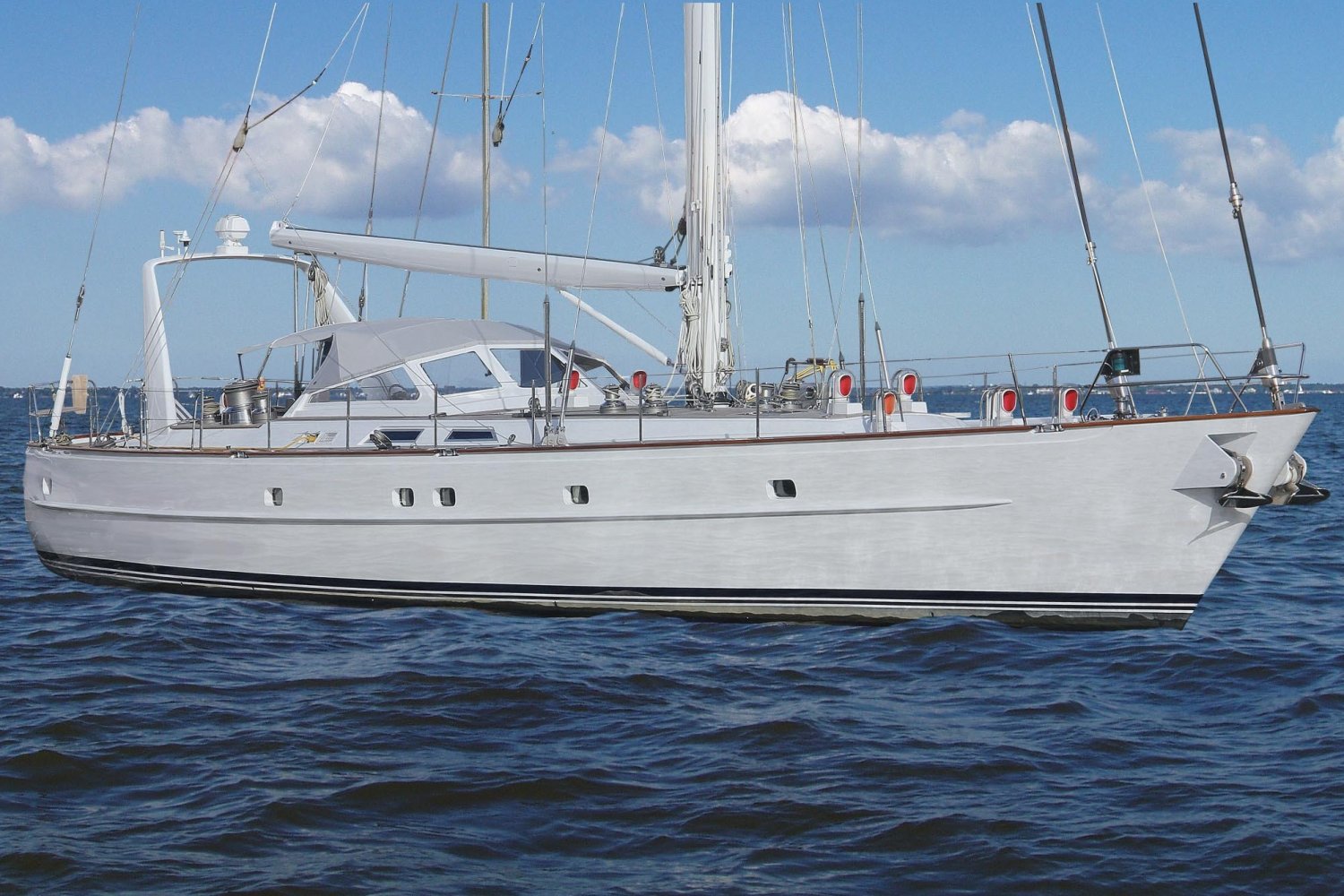

Algemeen
Merk
Nordia Van Dam 75
Bouwjaar
2000
Afmetingen
23.00 m x 6.00 m x 2.95 m
Materiaal
Aluminium
Motor
Perkins Sabre M265TI 265hp diesel
Ligplaats
Rotterdam (NL)
BTW status
Inclusief BTW
Ontwerper:
Robert van Dam
Werf:
Van Dam Nordia Shipyard (NL)
Rompvorm:
rondspant
Rompkleur:
wit
Dek en opbouw kleur:
wit
Dek en opbouw materiaal:
aluminium
with teak decking
Opbouw vorm, materiaal:
Aluminium
Ramen:
Safety glass in alu frames

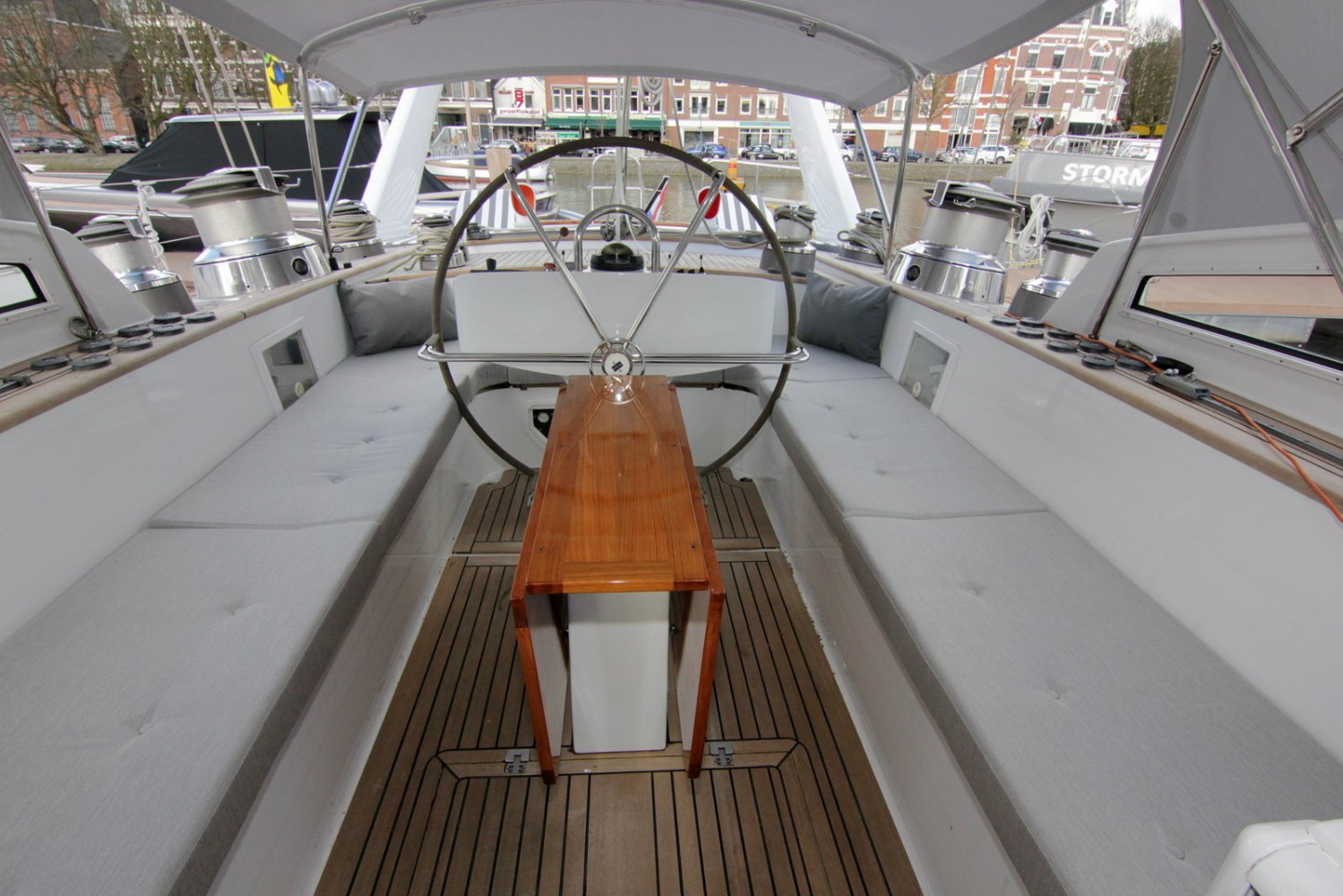

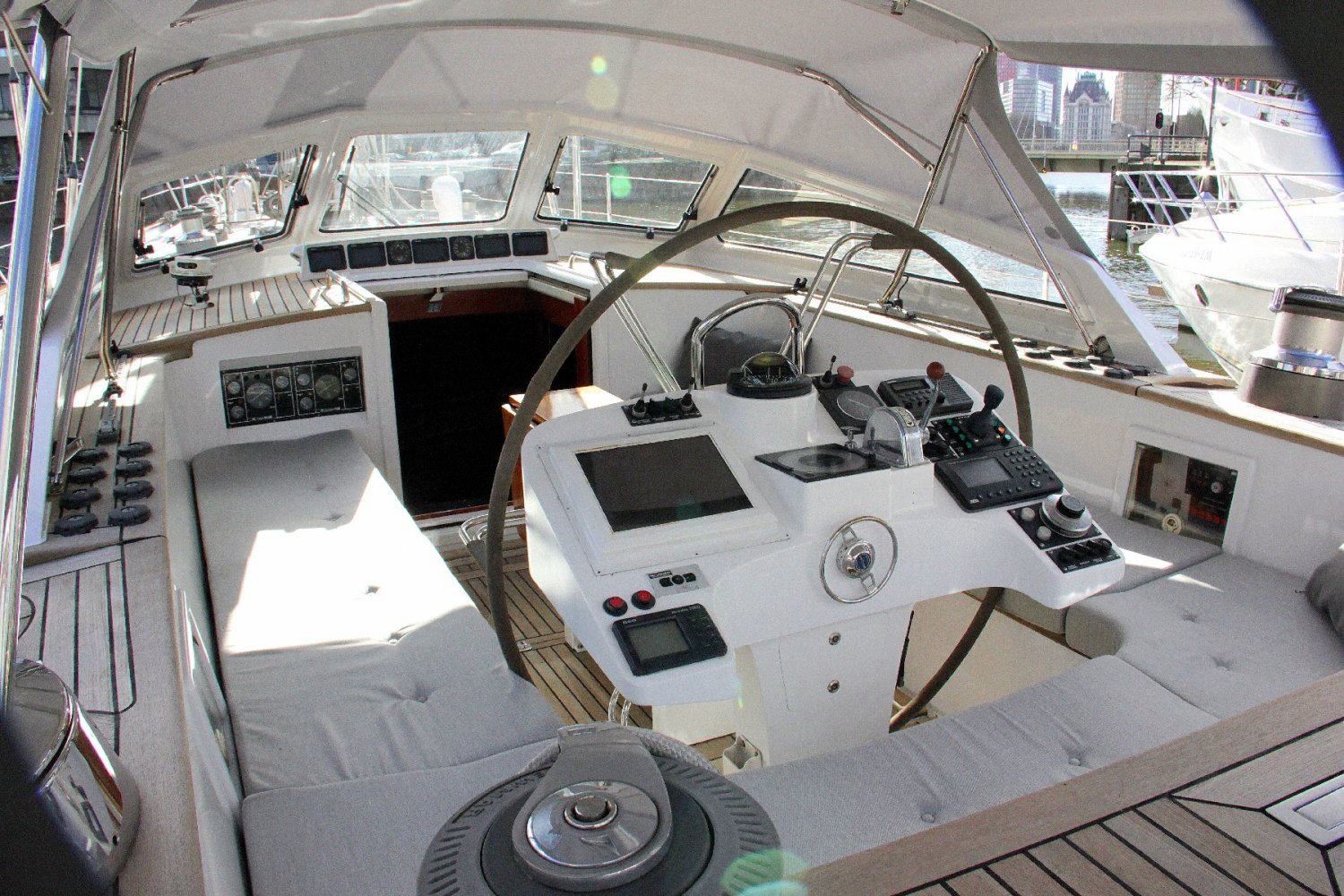

Kuip:
middenkuip
Doorvaarthoogte normaal:
3.100 cm
Diepgang:
295 cm
Waterverplaatsing:
69.000 kg
Ballast:
18.000 kg
lead

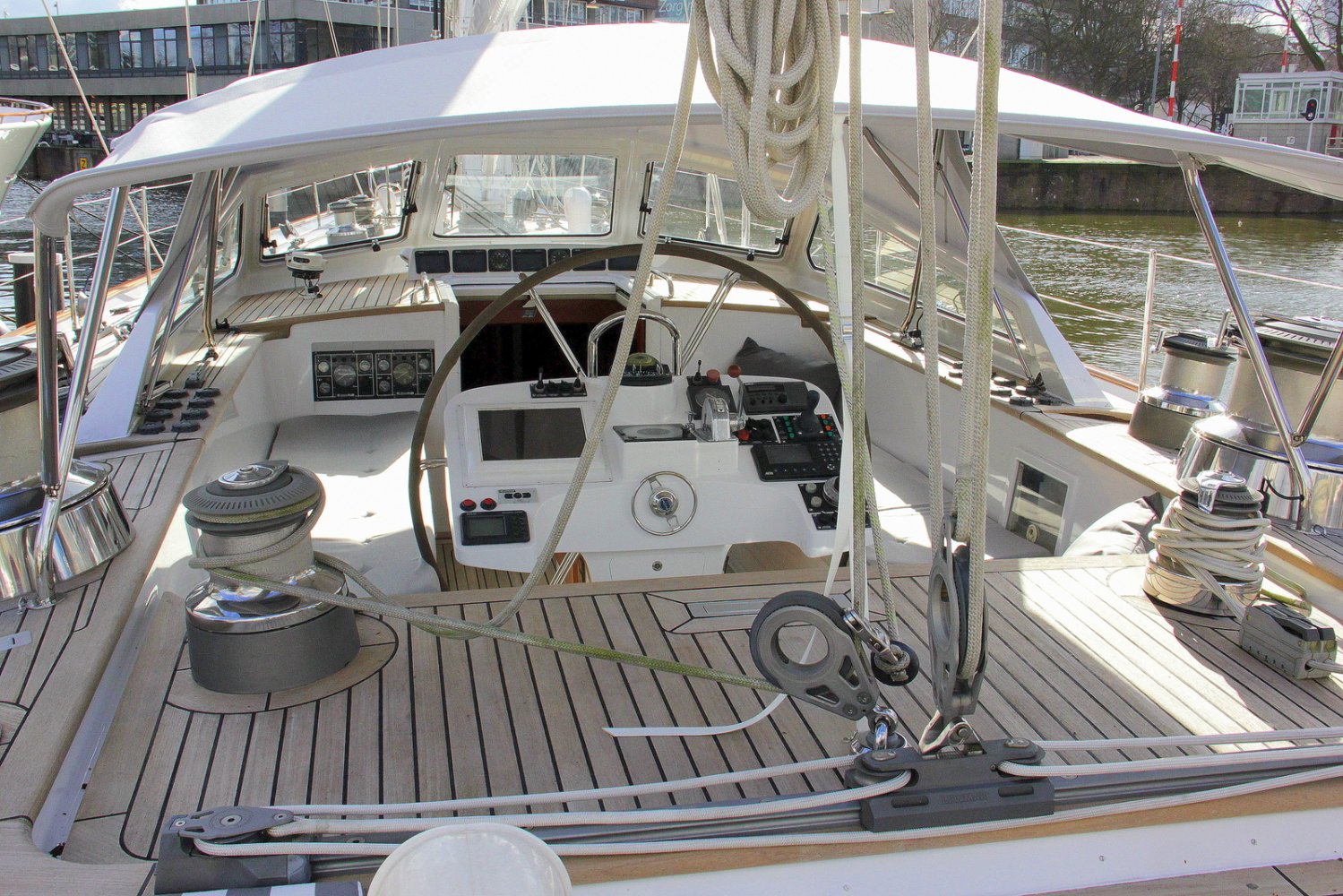

Besturing:
stuurwiel
Whitlock MAMBA-ROD system
Roer:
enkel
Balance
Accommodatie
Stahoogte:
210 cm

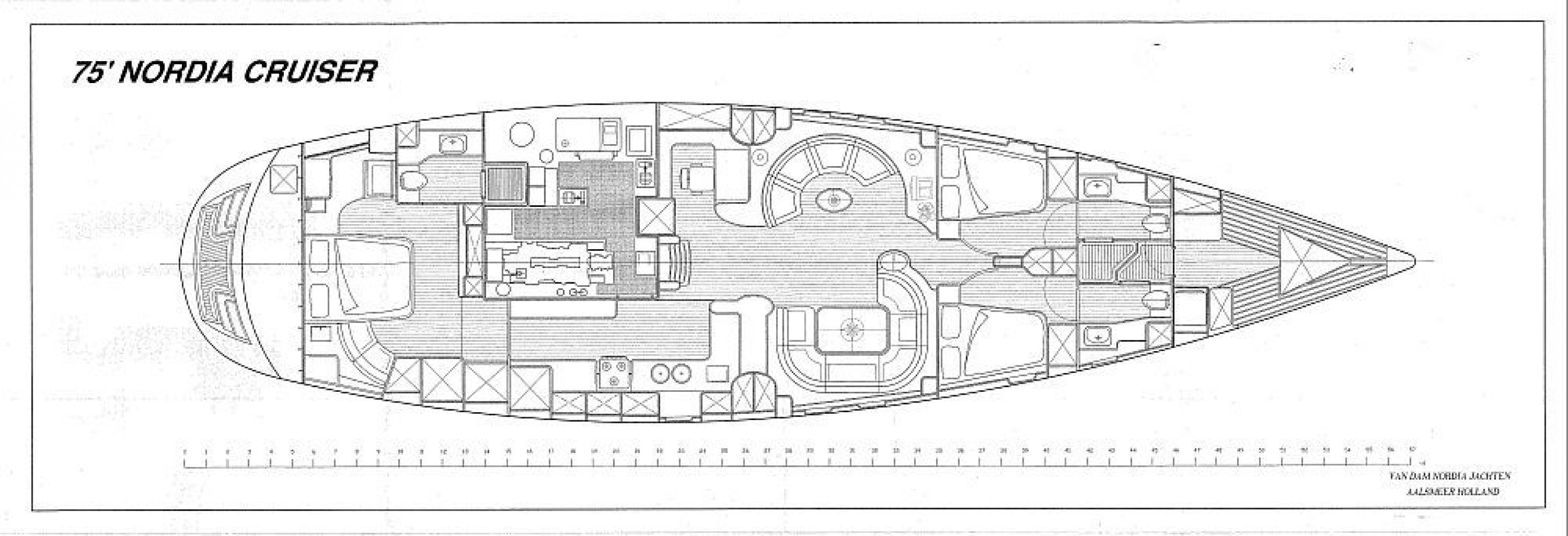

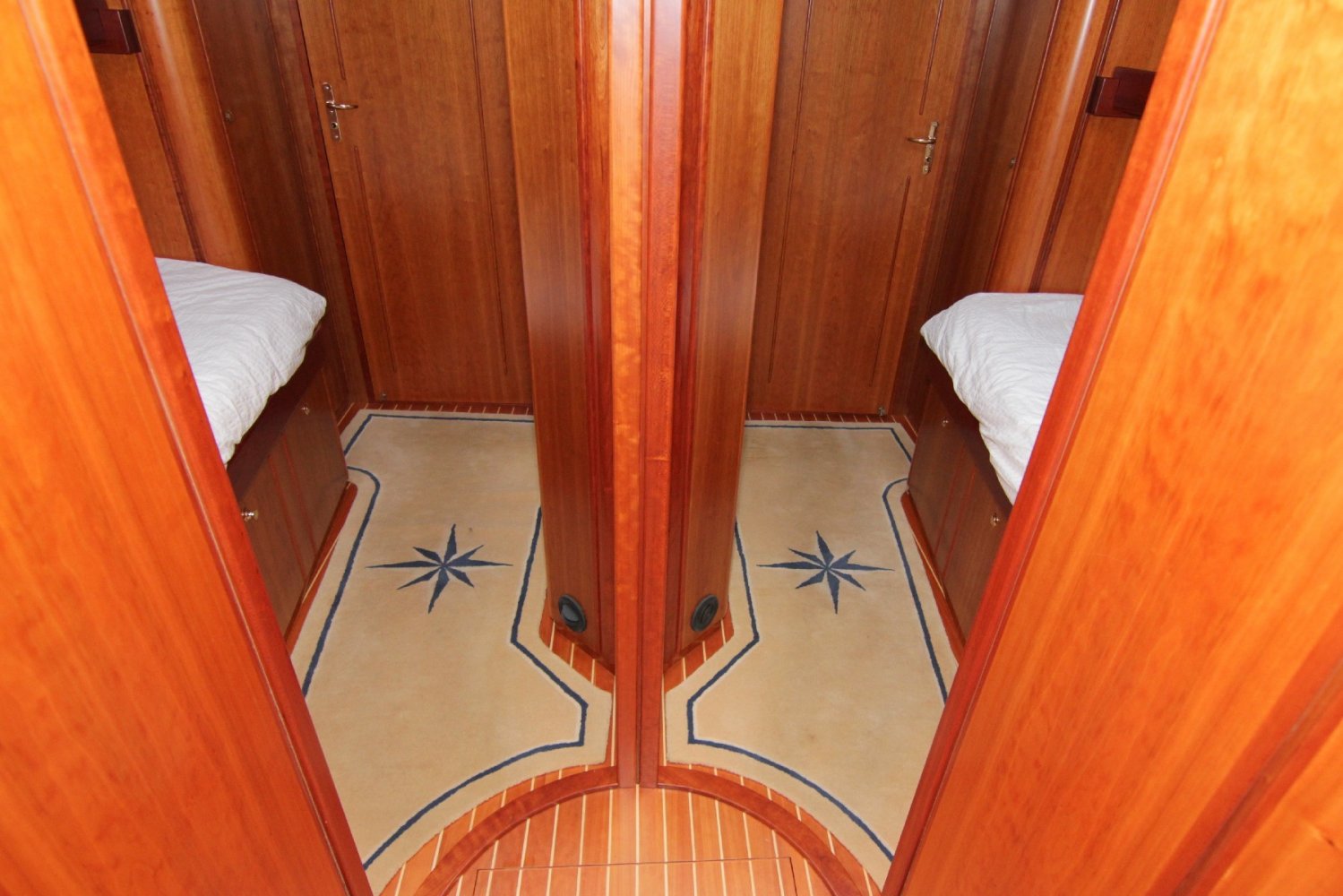

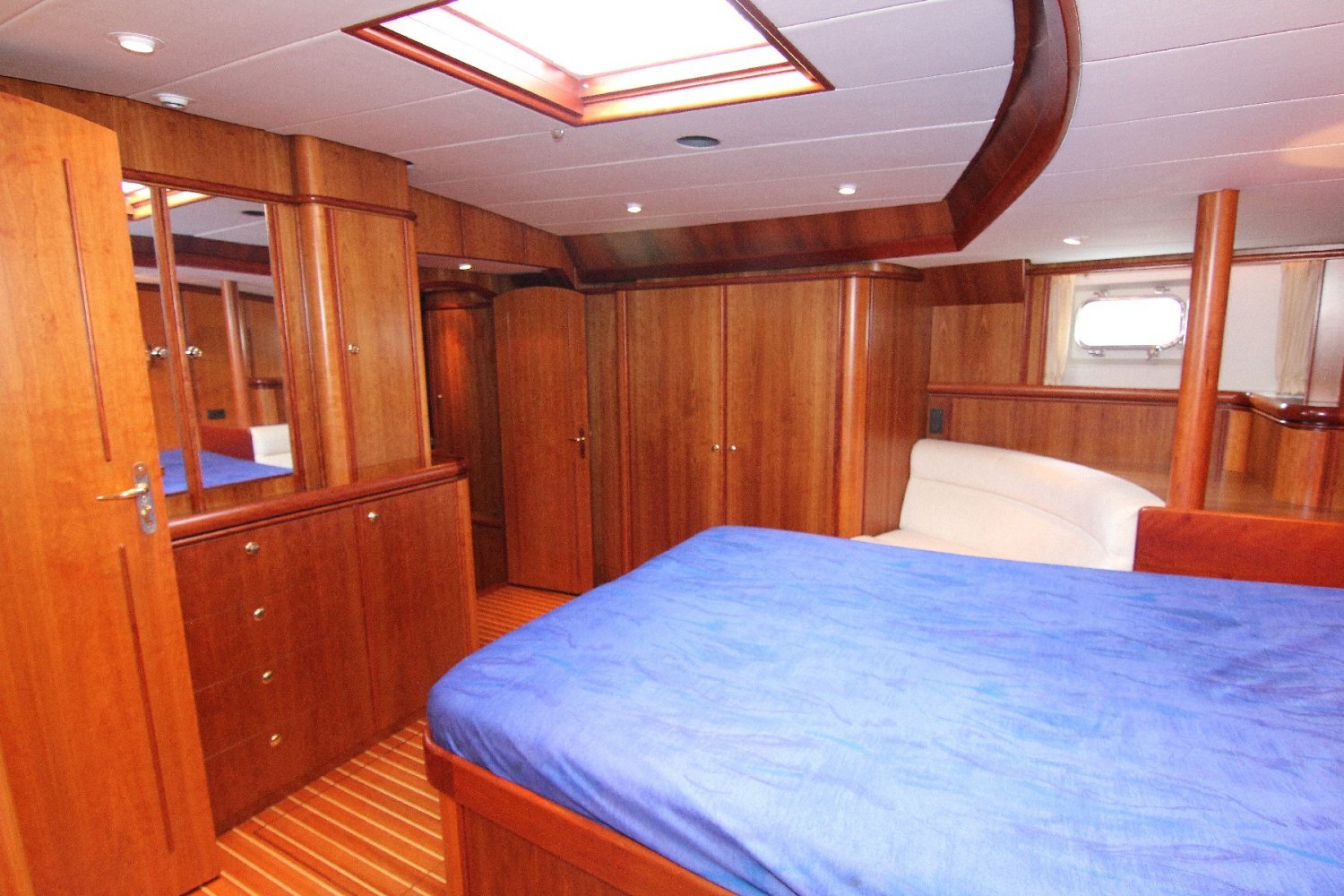

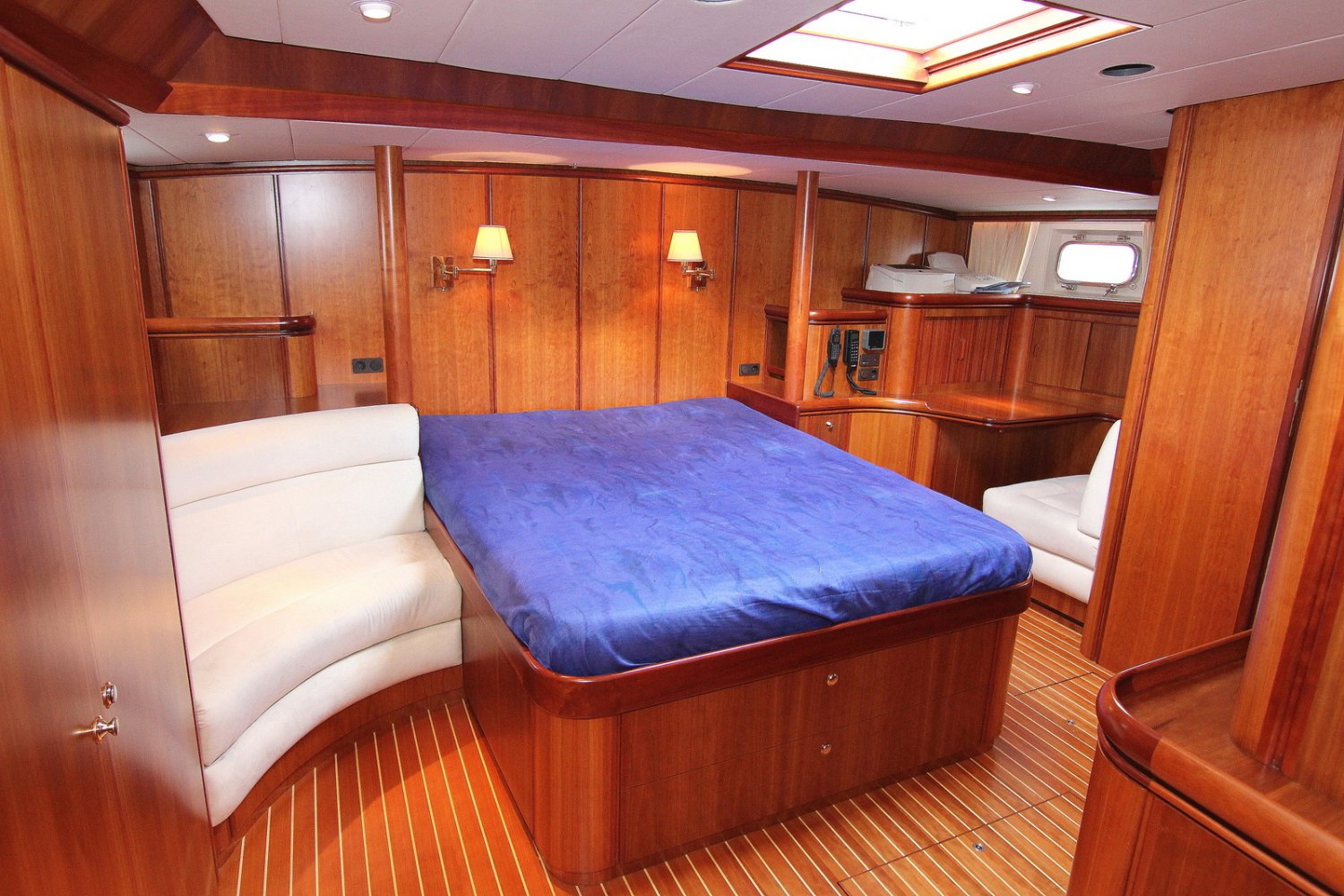

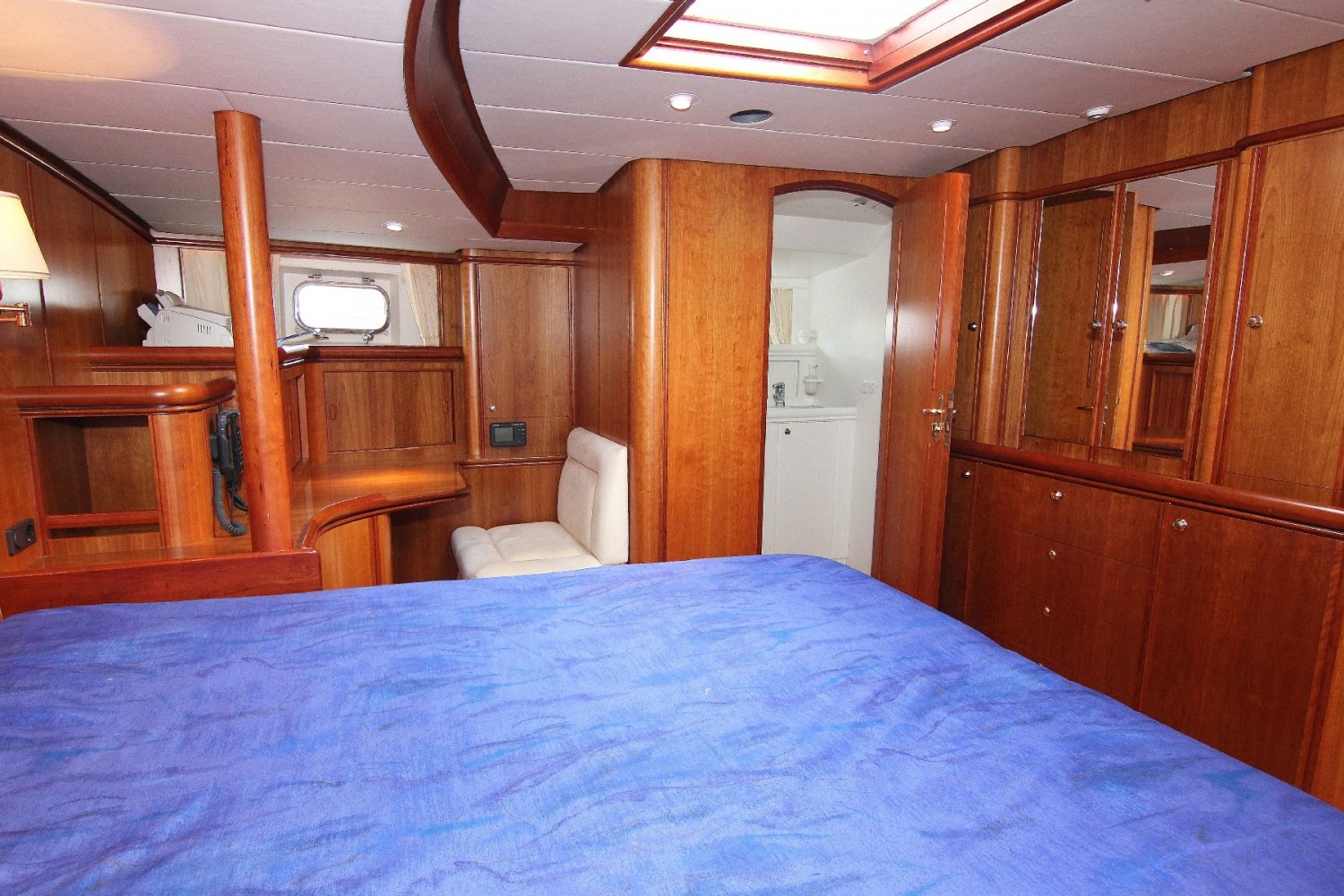

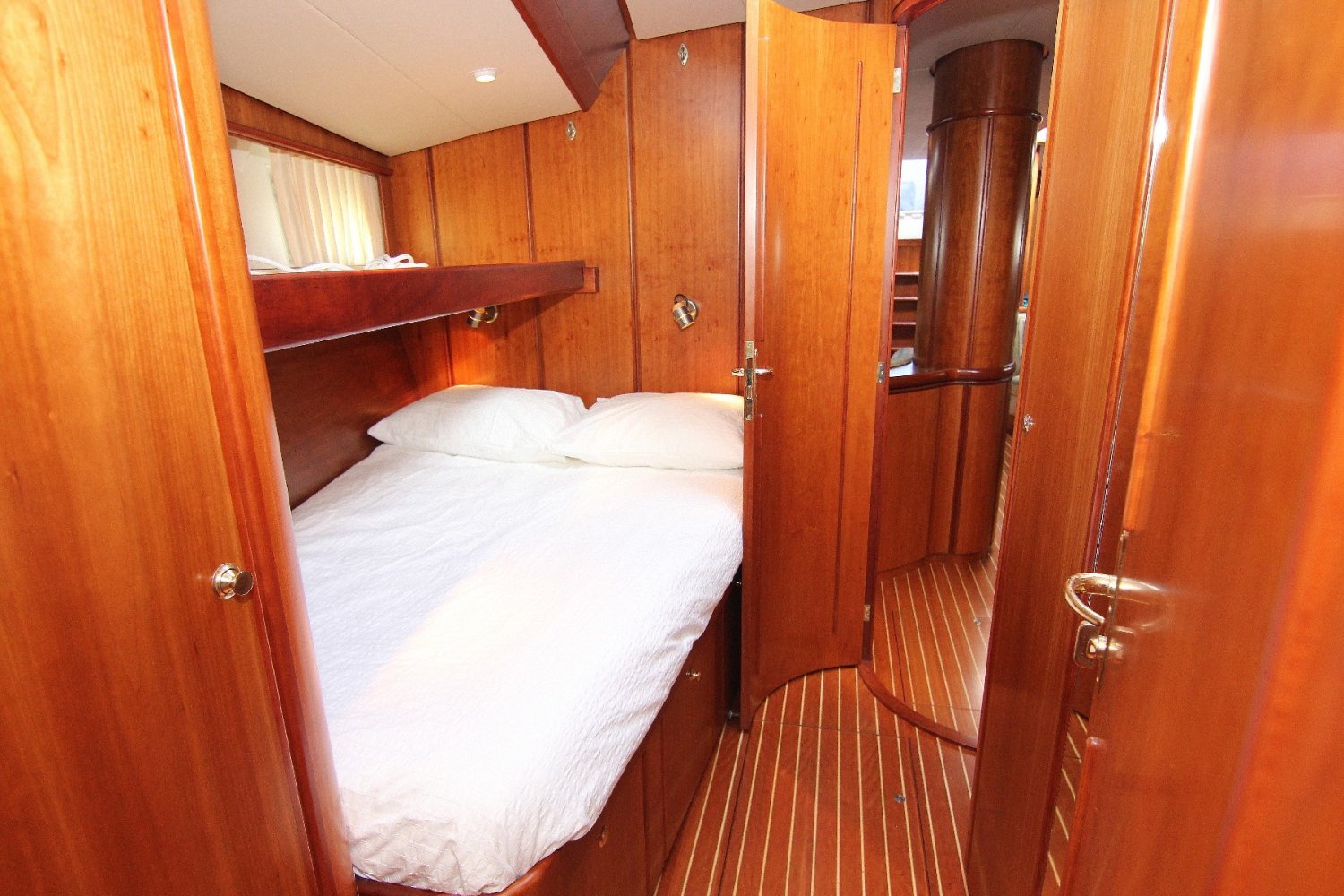

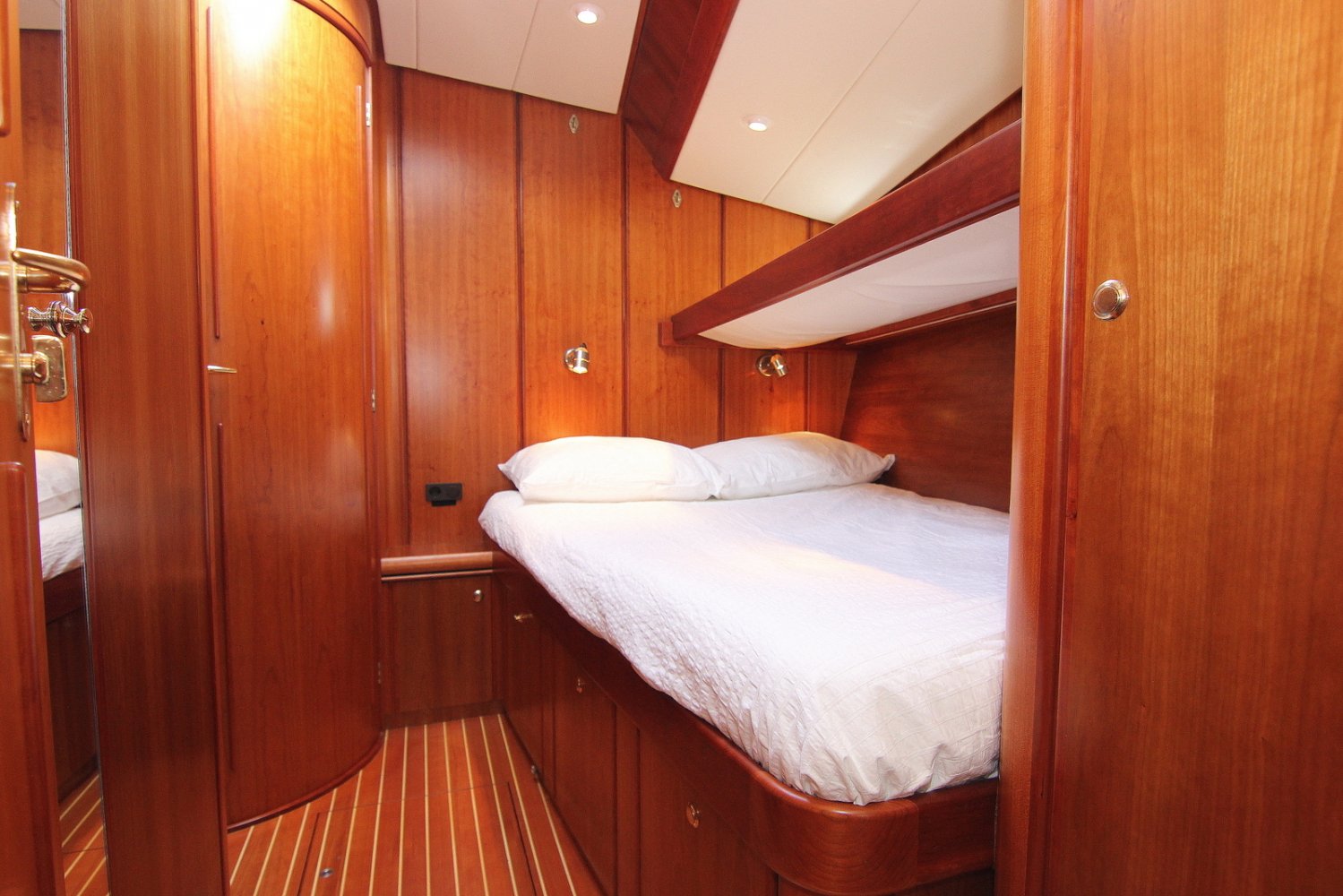

Hutten:
3
Ownerscabin + 2 guestcabins + possible crew cabin in bow
Slaapplaatsen:
vast: 6 extra: 2
6 fixed, 2 extra

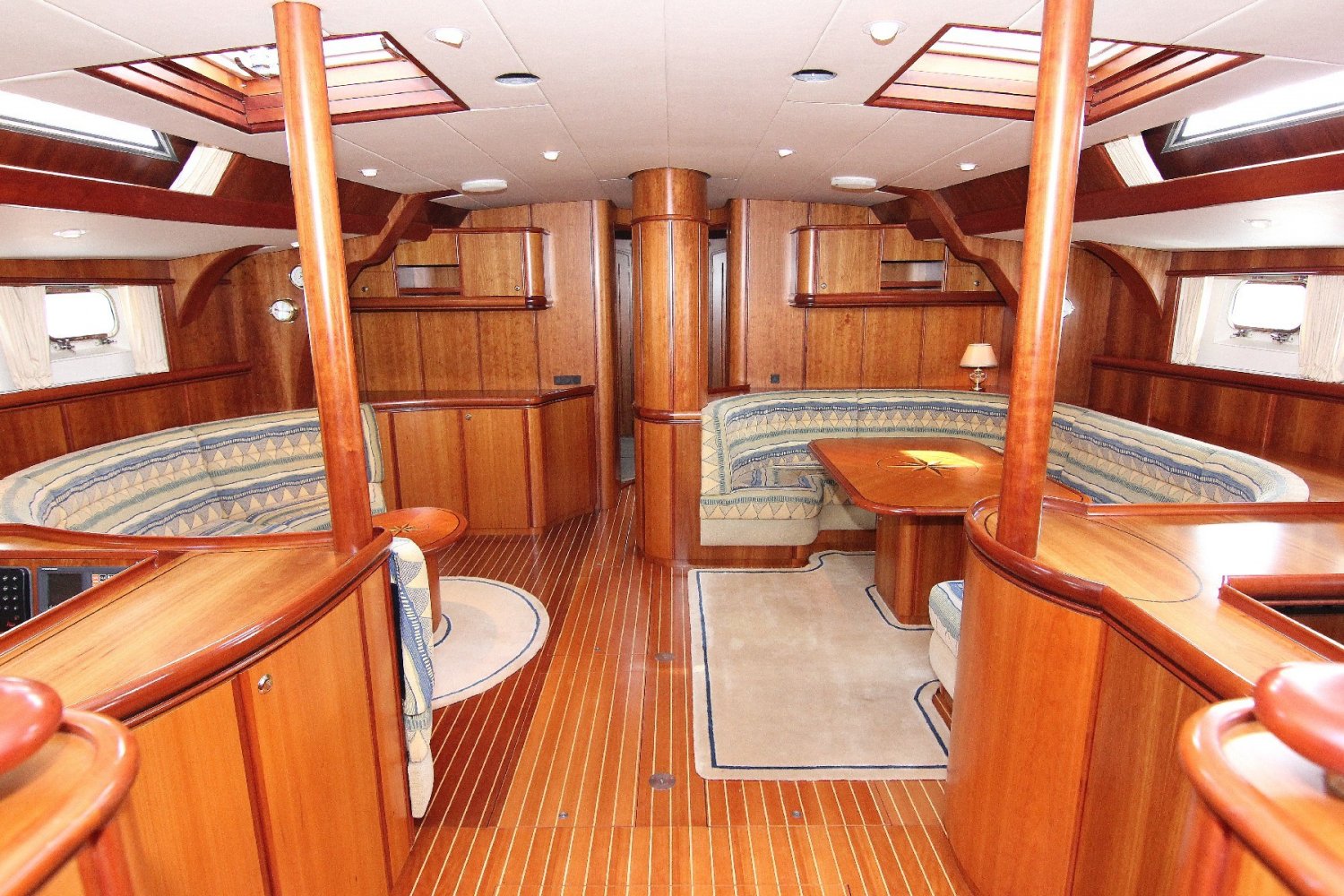

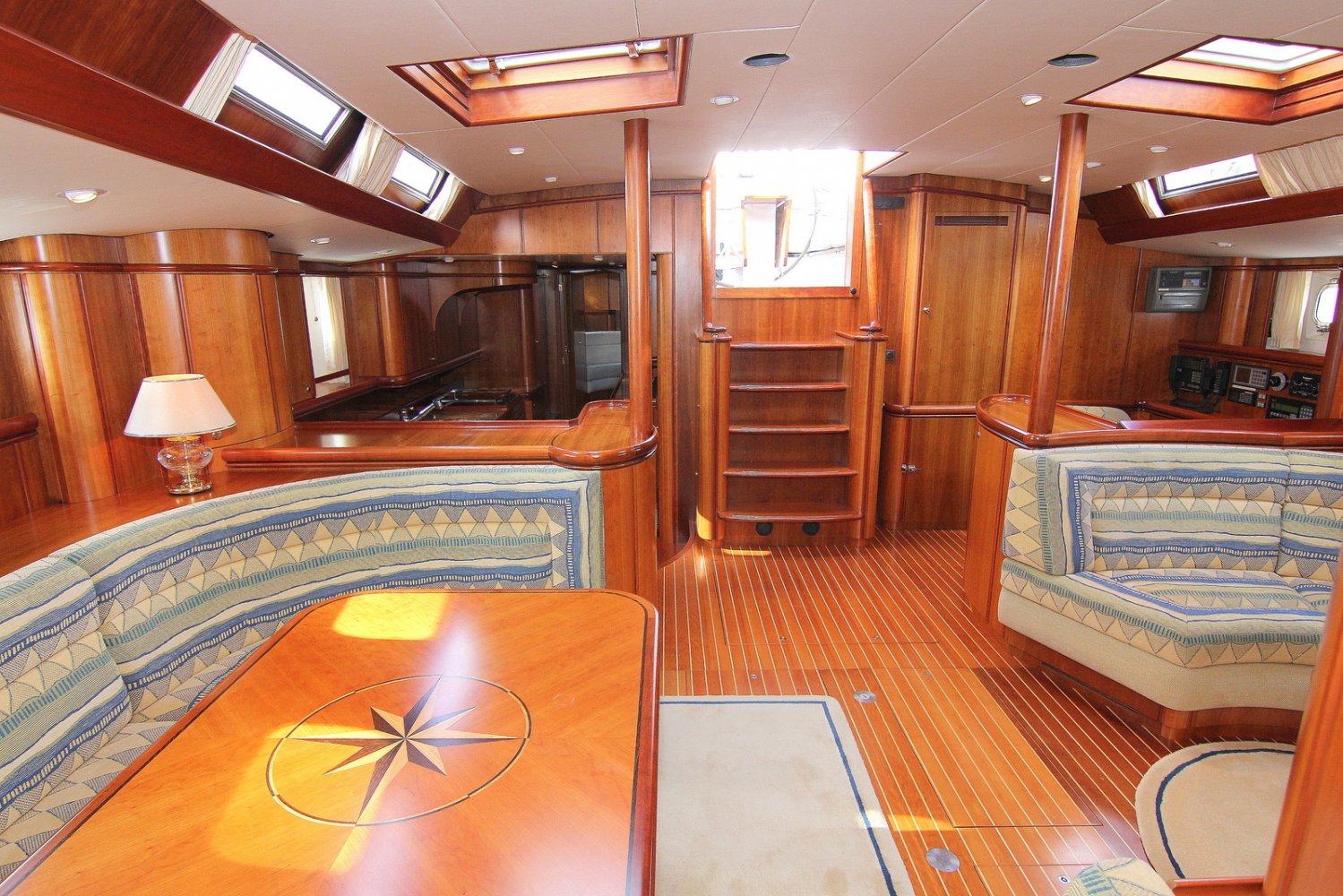

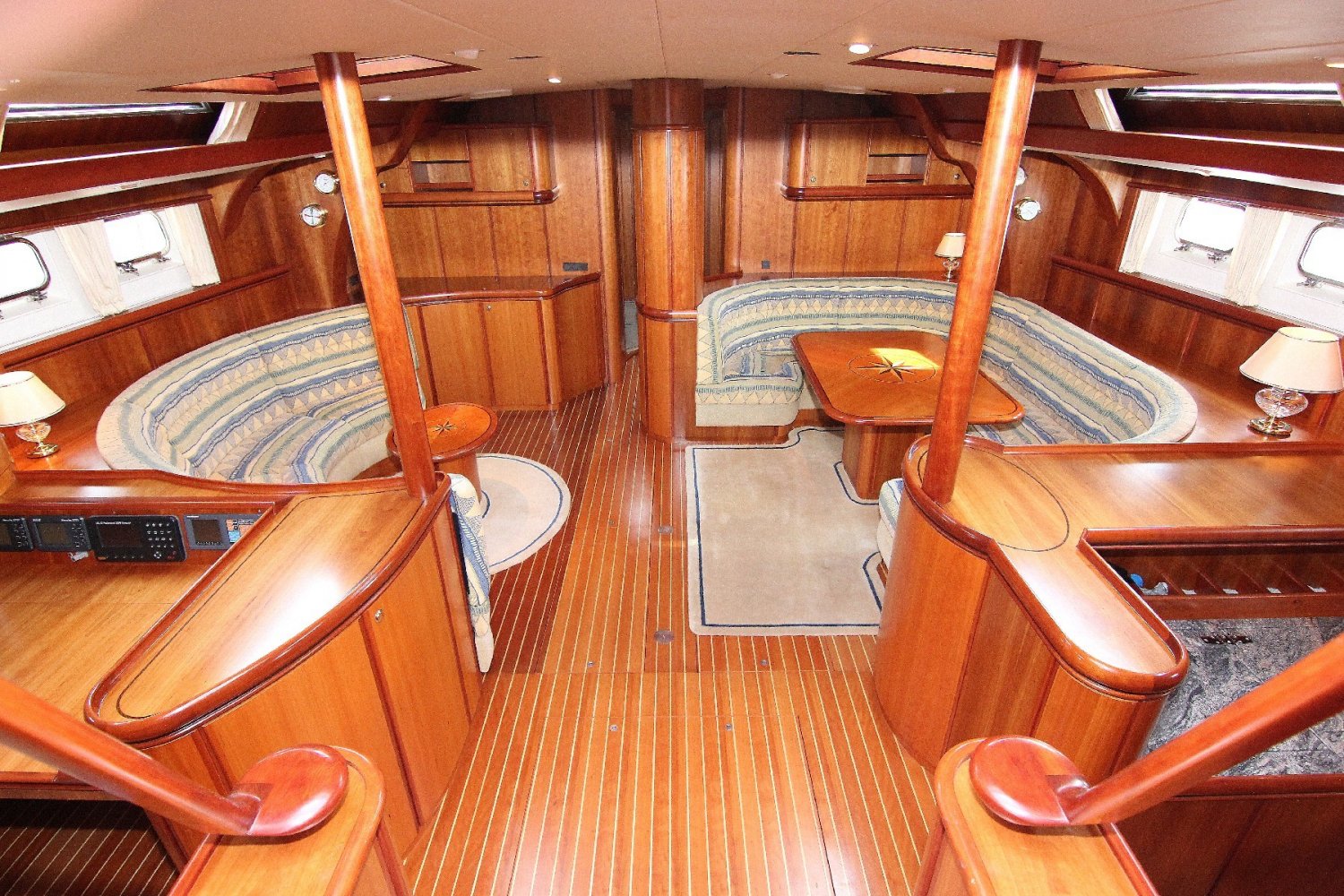

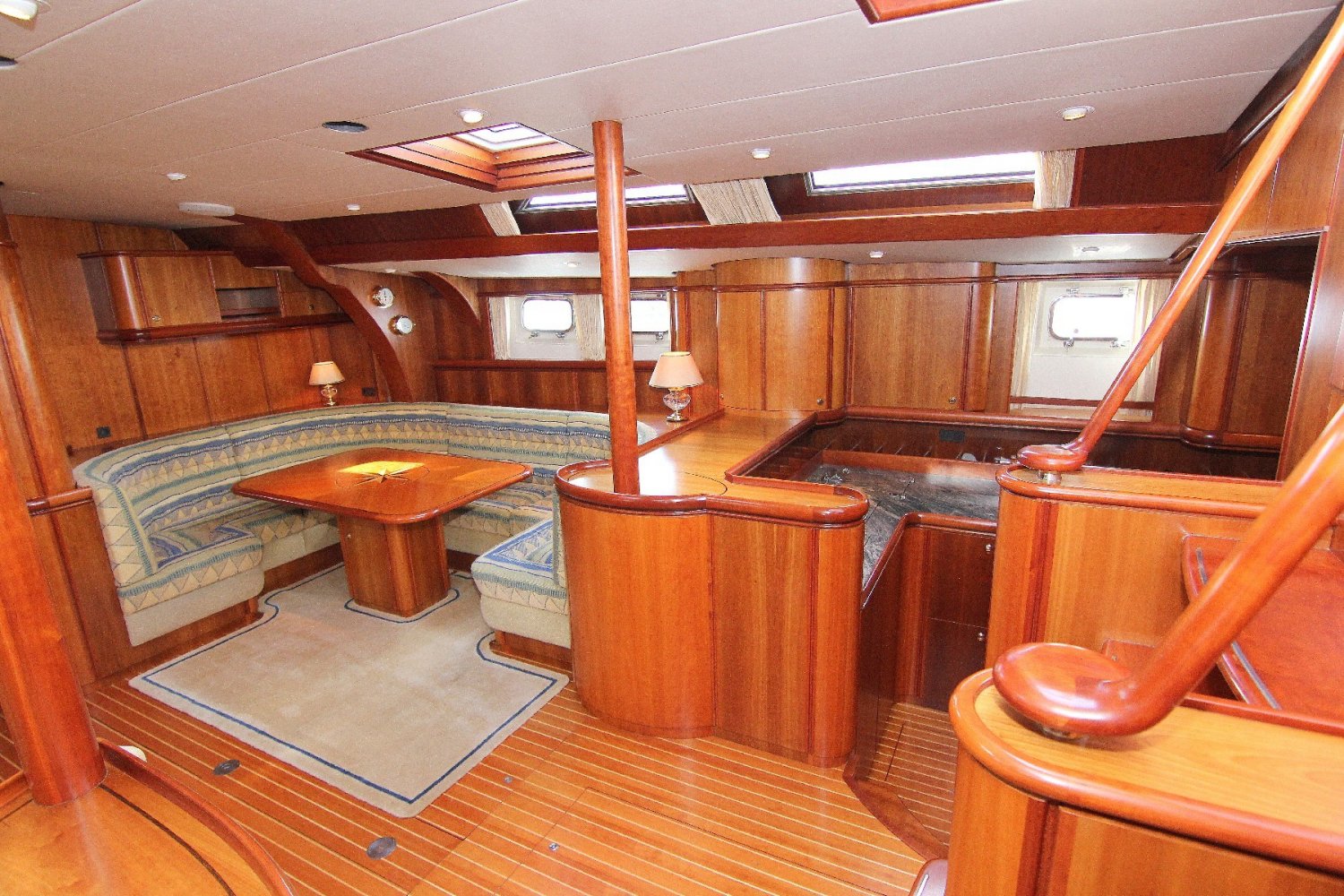

Type interieur:
Klassiek, warm
Cherrywood
Matrassen:
Kussens:
Gordijnen:
Watertank & materiaal:
2.000 liter aluminium
Appr. 2.000 litres
Watertankmeter:

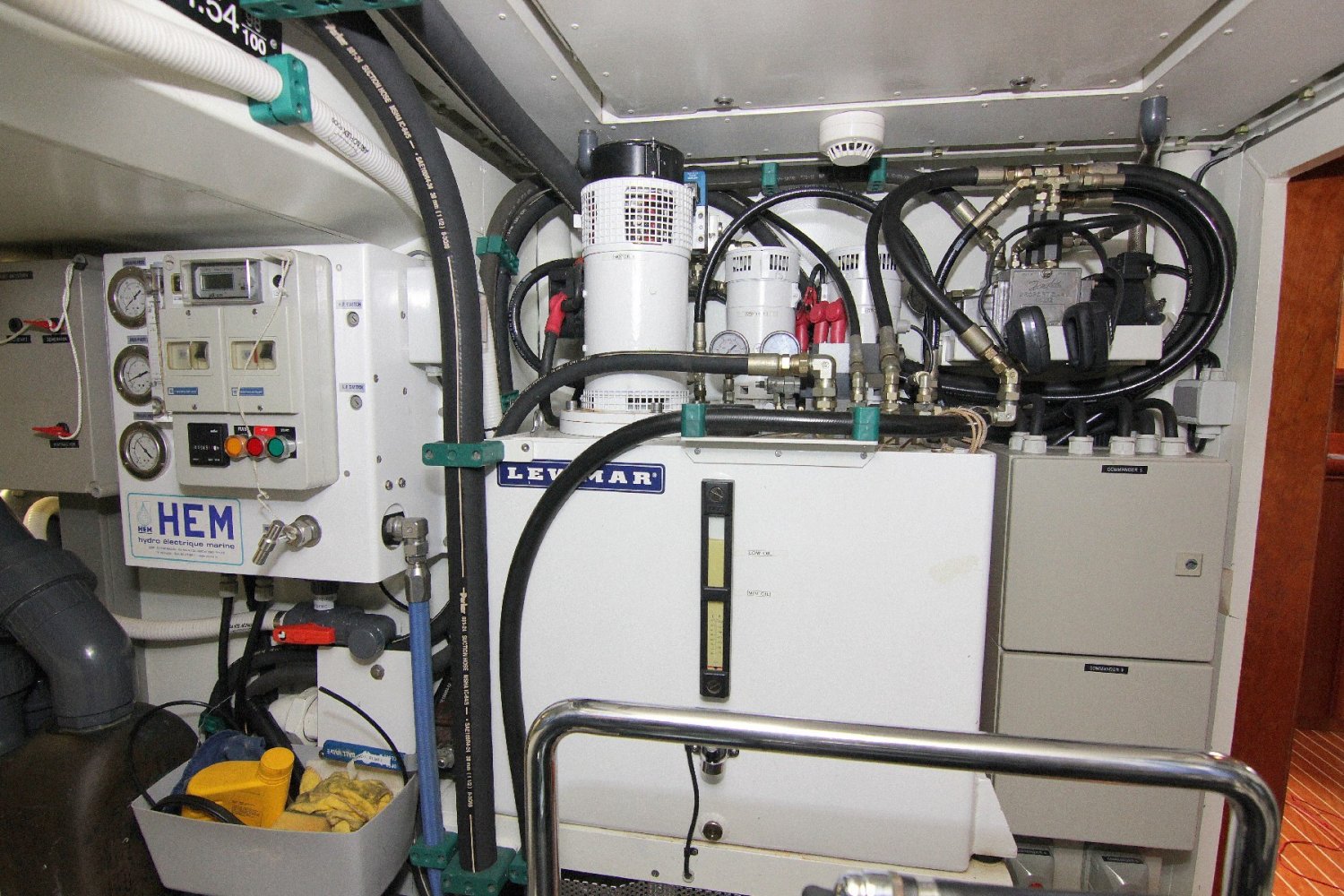

Watermaker:
300 liter/uur
HEM 30/2100 (300 litres/hour)
Vuilwatertank & materiaal:
950 liter
in total
Watersysteem:
druksysteem
Rheinstrom hydrofore
Warm water:

Rheinstrom 70 litres boiler

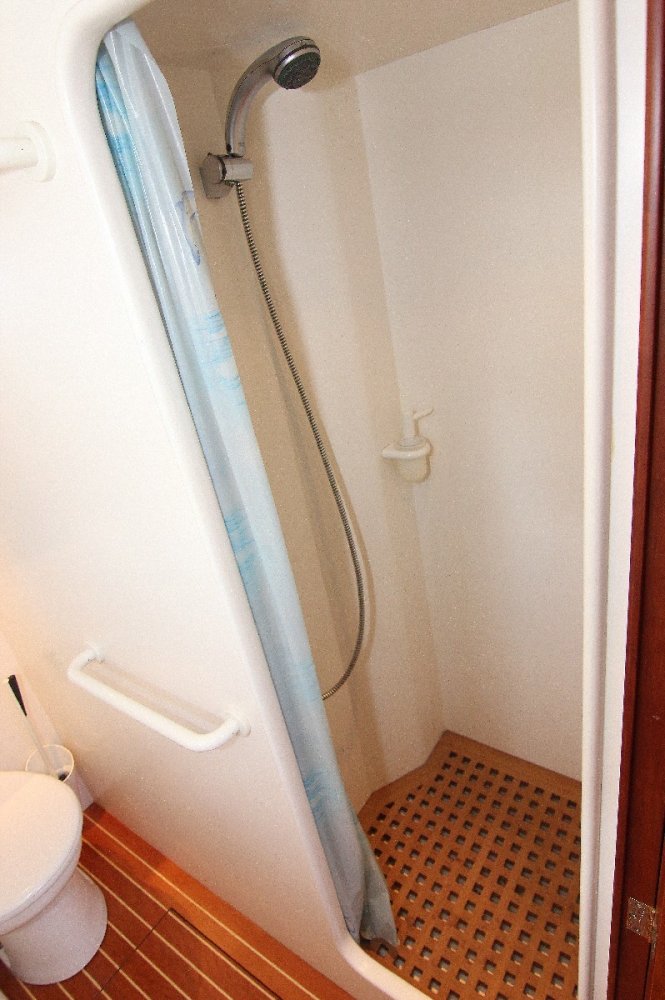

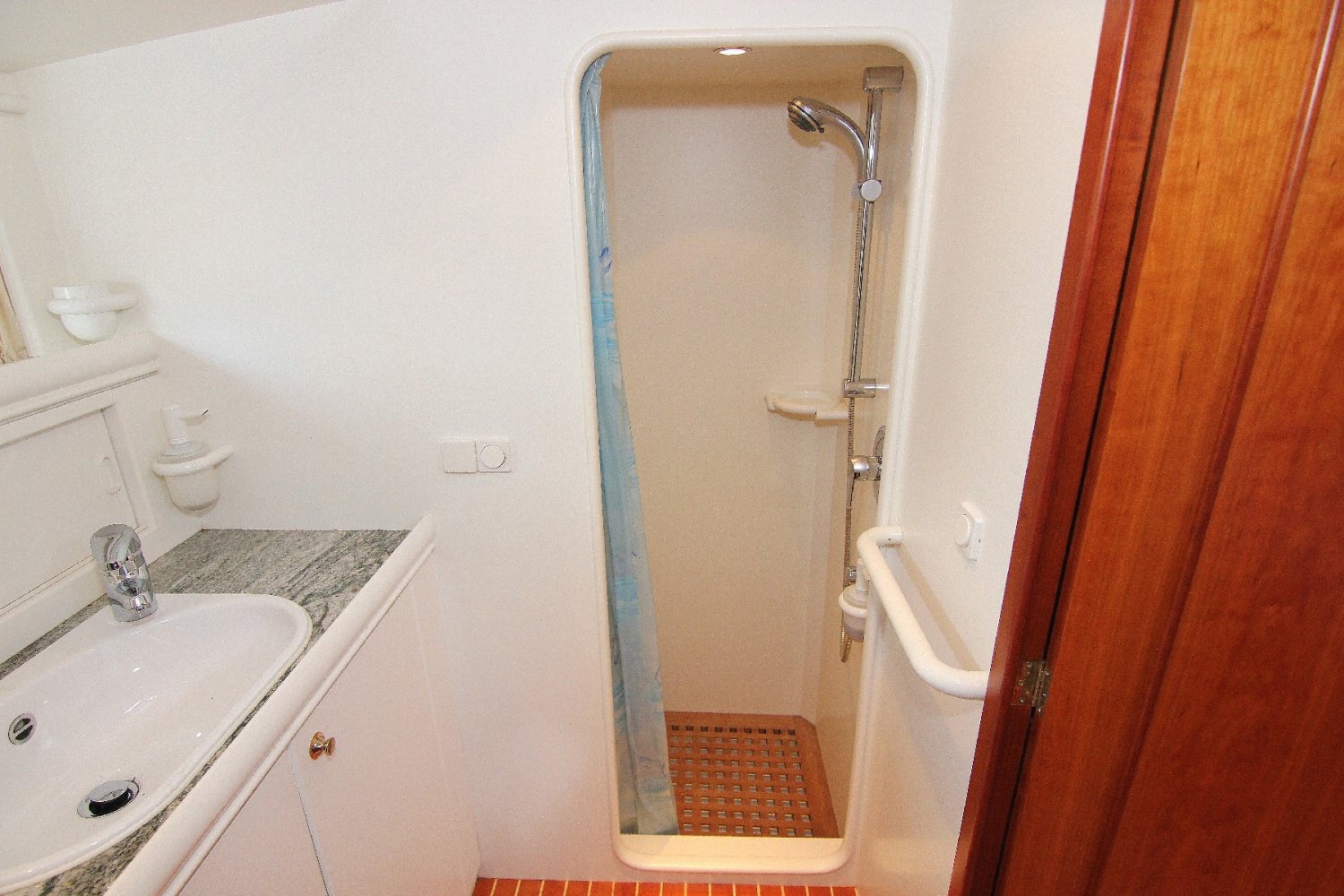

Aantal douches:
3
3x seperate cabin + outside h/c

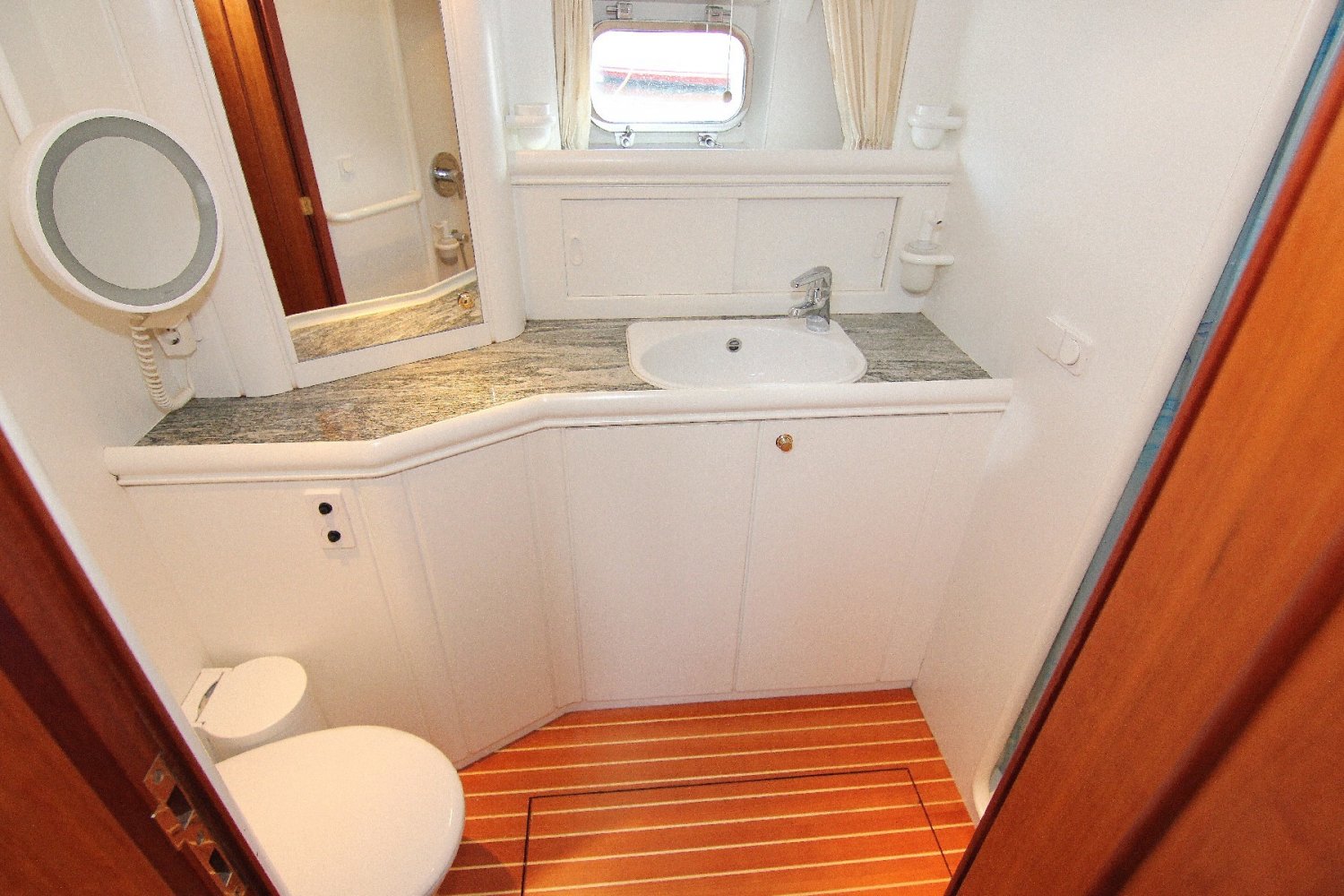

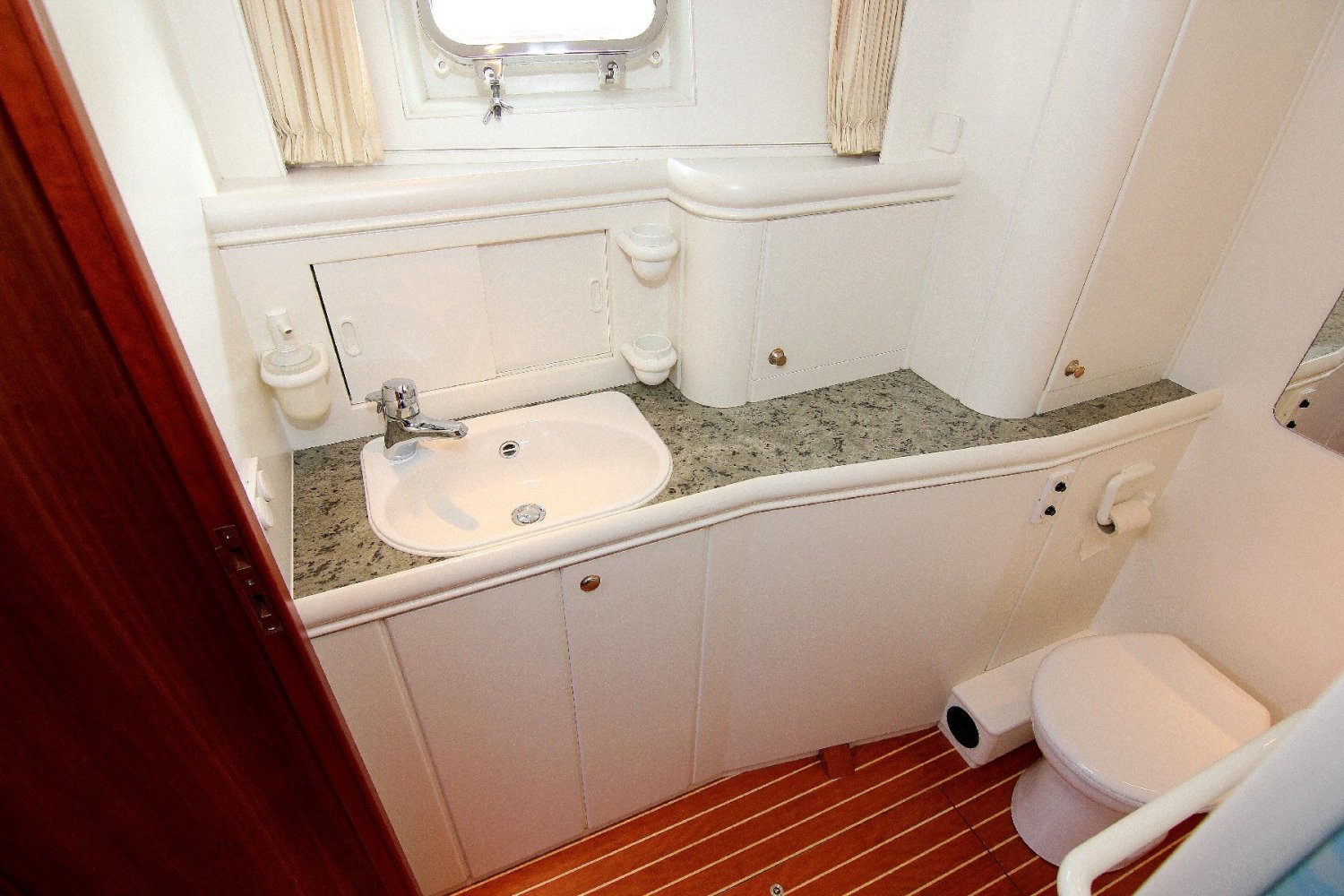

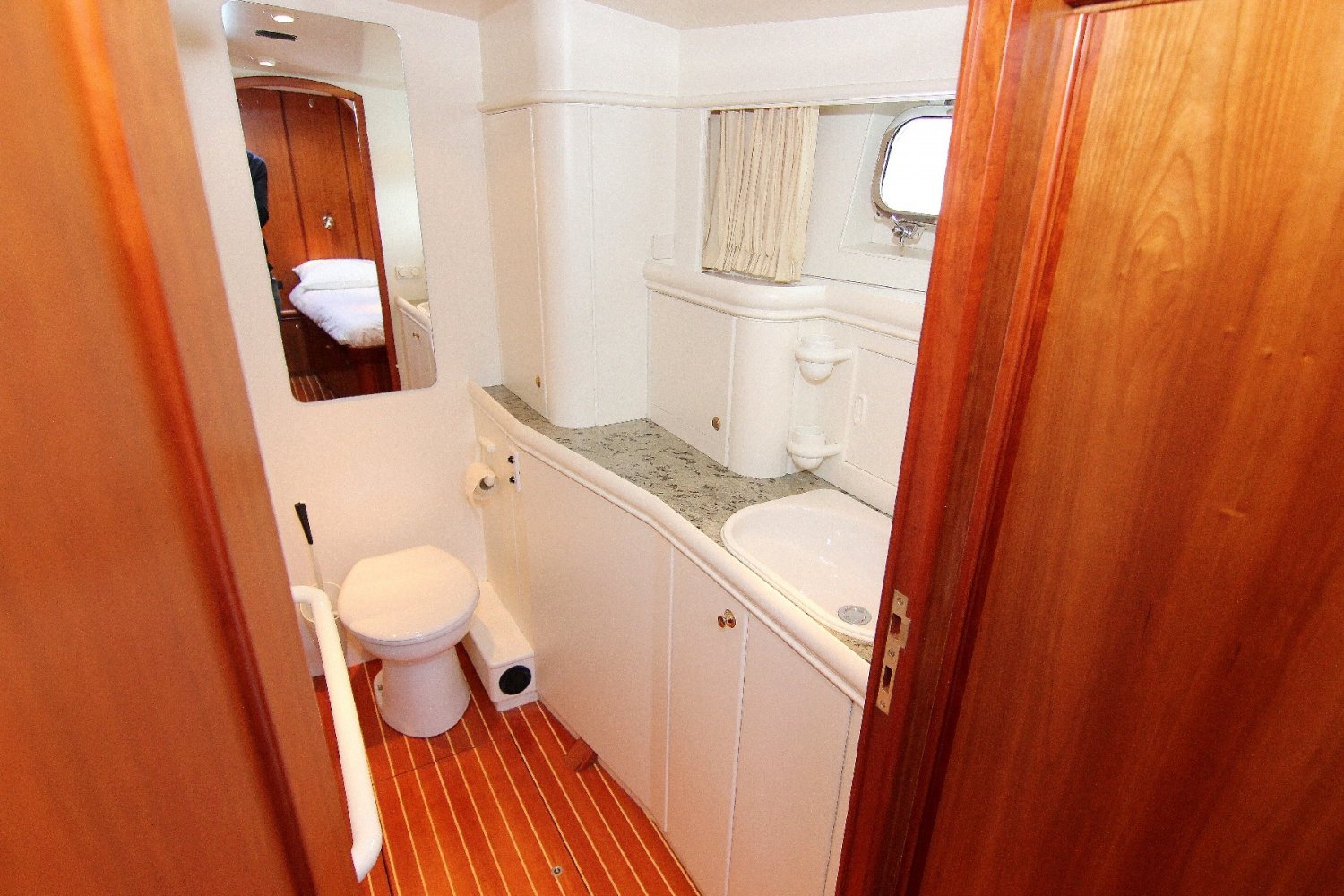

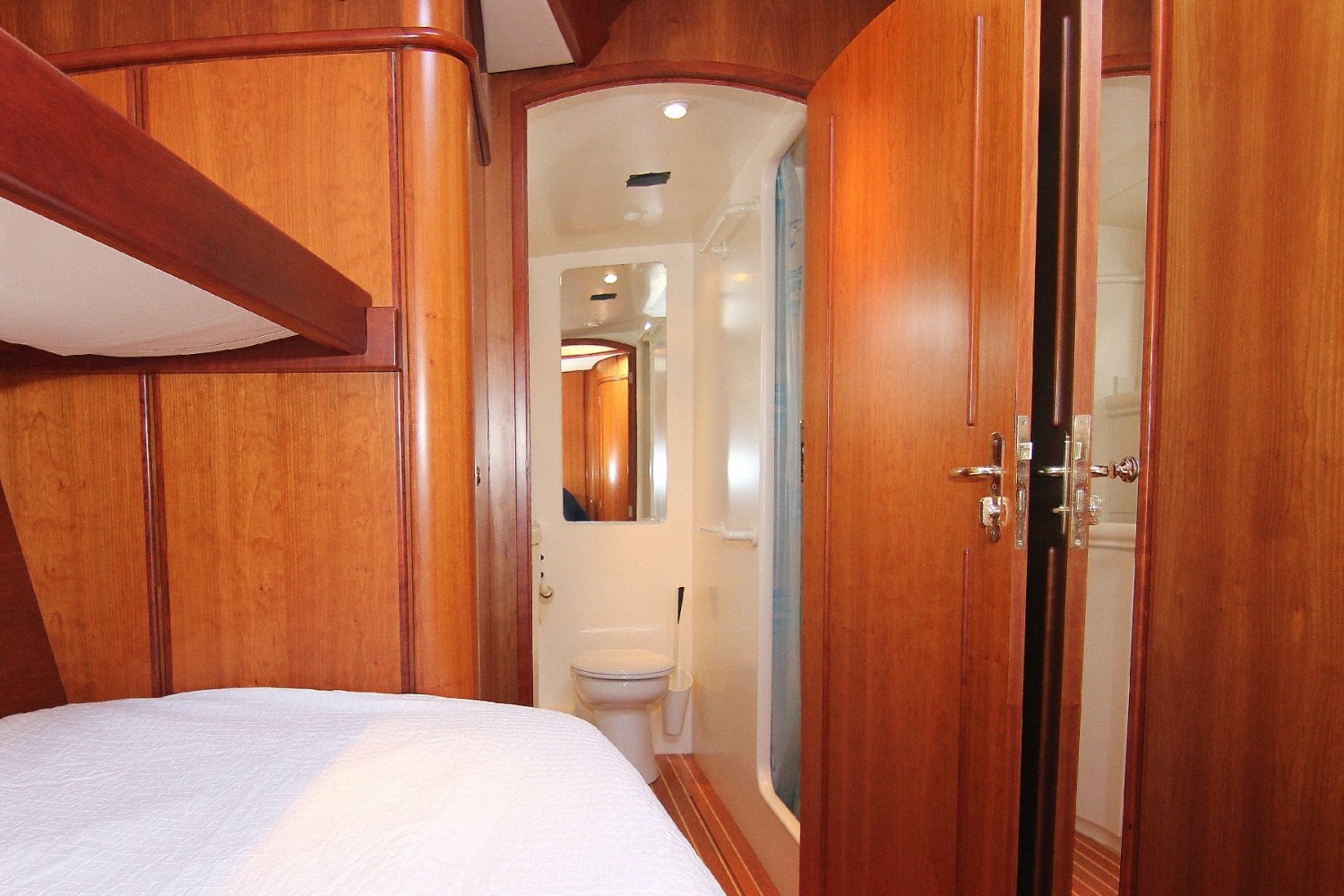

Toiletten:
3
3x Rheinstrom electric

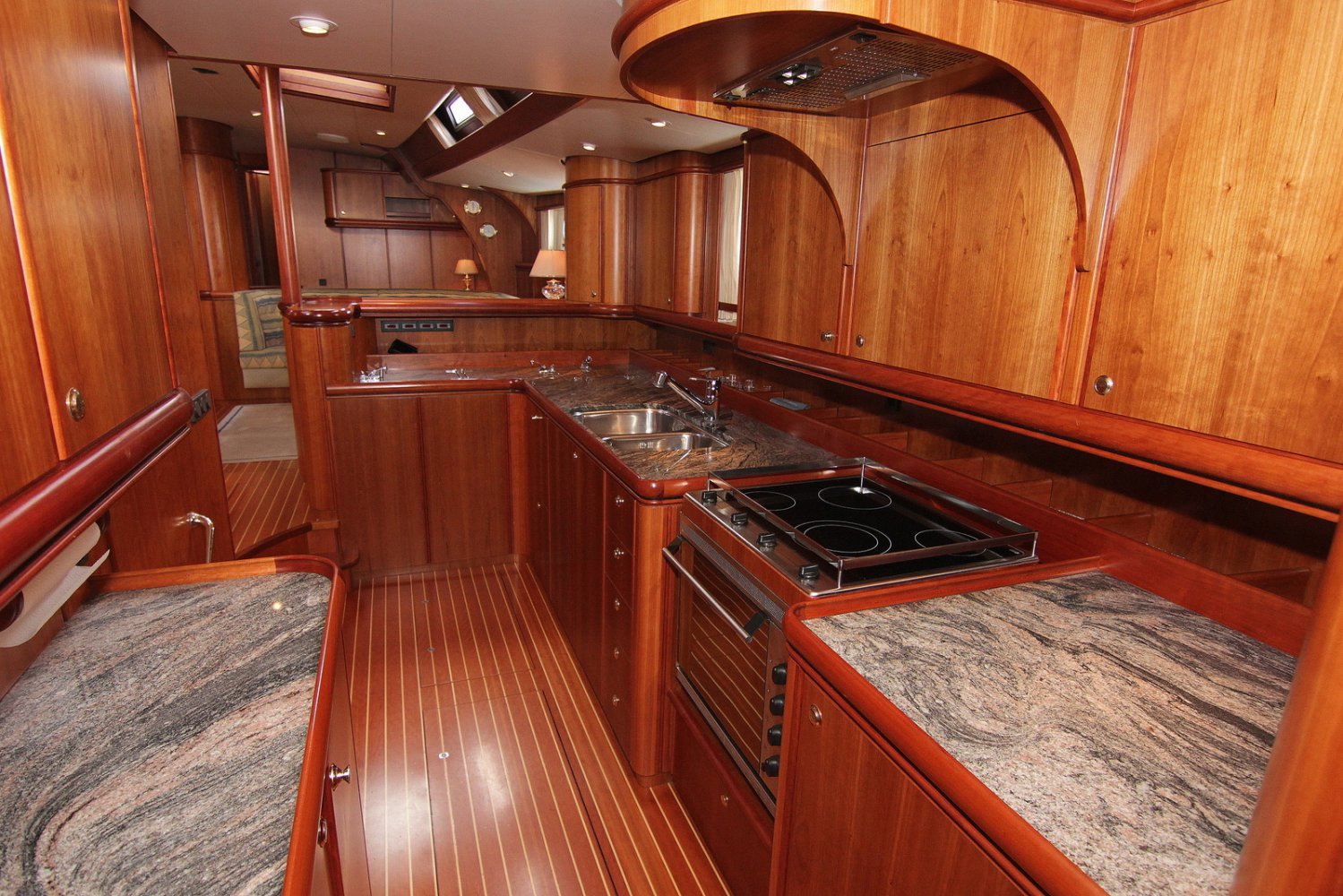

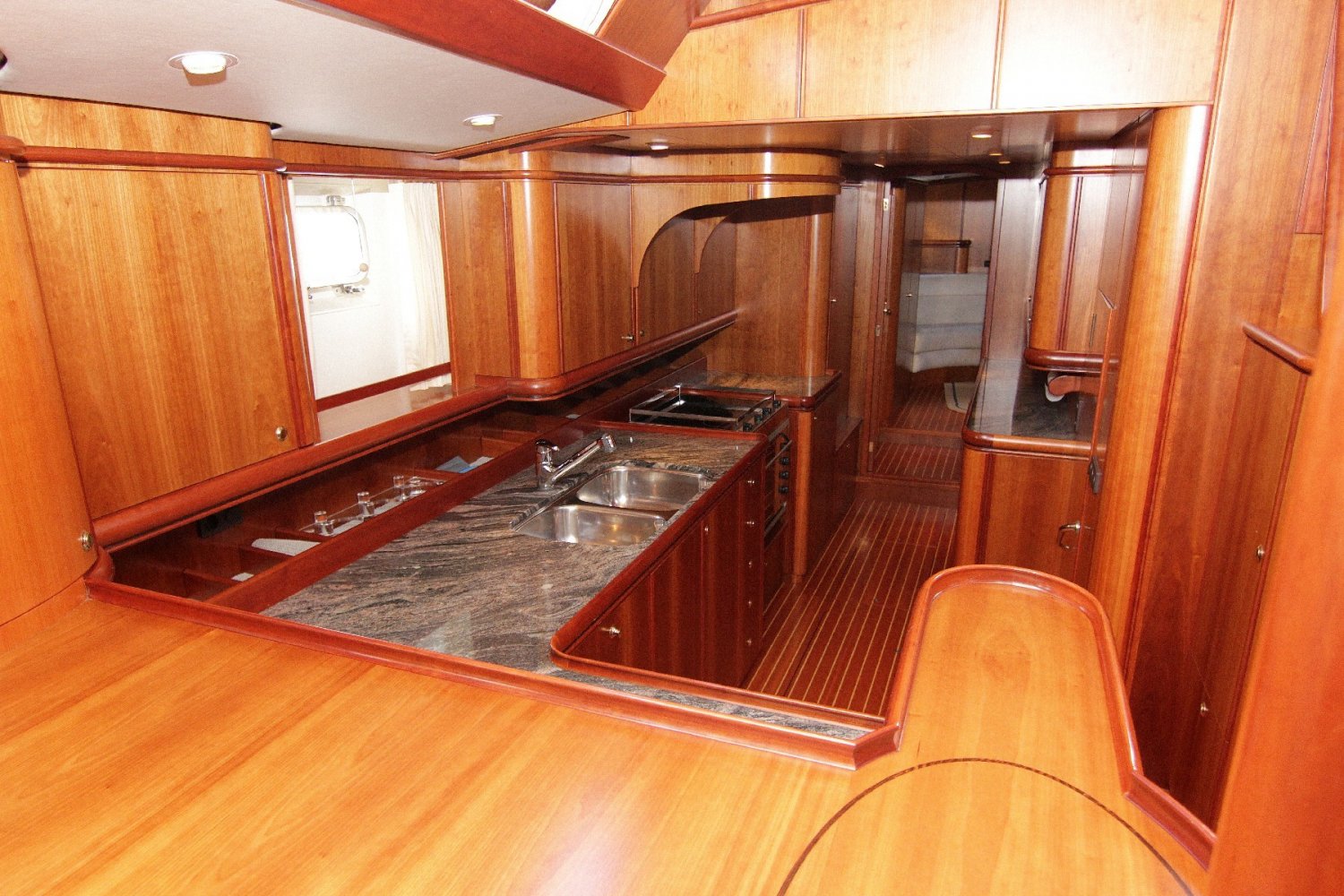

Kooktoestel & brandstof:
elektrisch
Atag 4-burner
Oven:

Combi
Magnetron:

Combi
Koelkast & voeding:
400 liter elektrisch
Frigomatic 2x 200 litres
Vriezer:
400 liter
Frigomatic 2x 100 litres
Verwarming:

hete lucht
2x Eberspacher
Airconditioning:
No
Opmerkingen:
- Dishwasher - Siemens Washer/Dryer

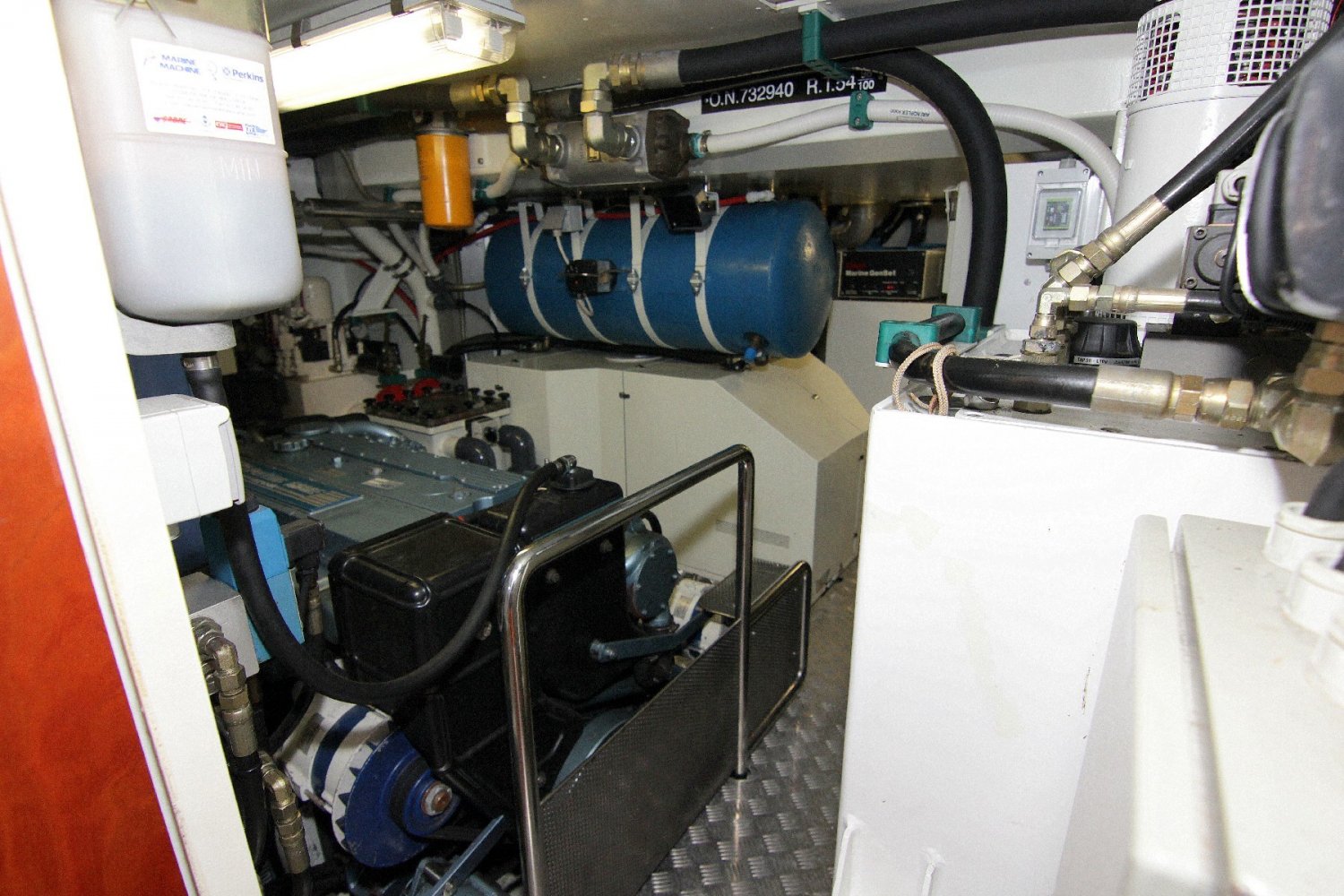

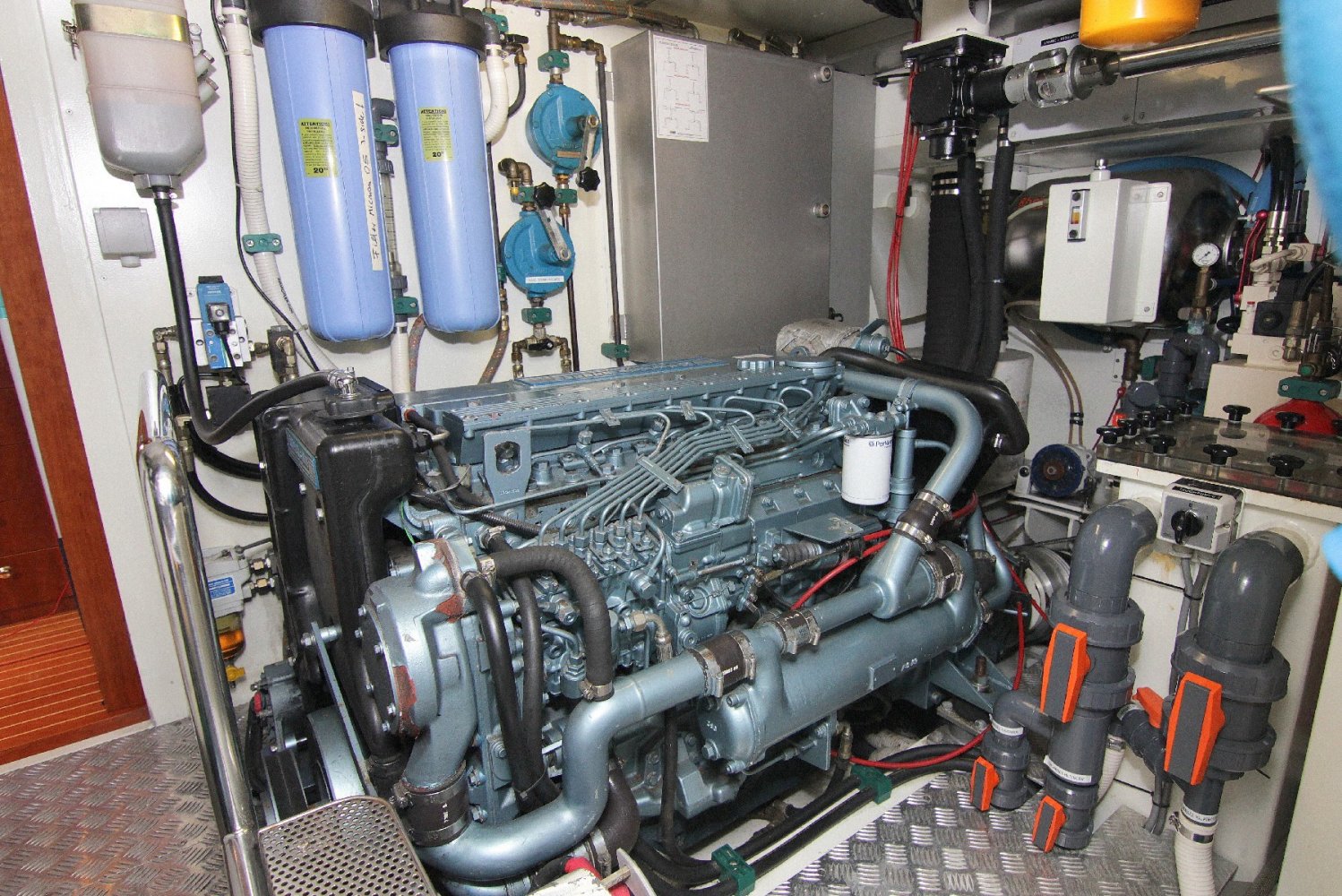

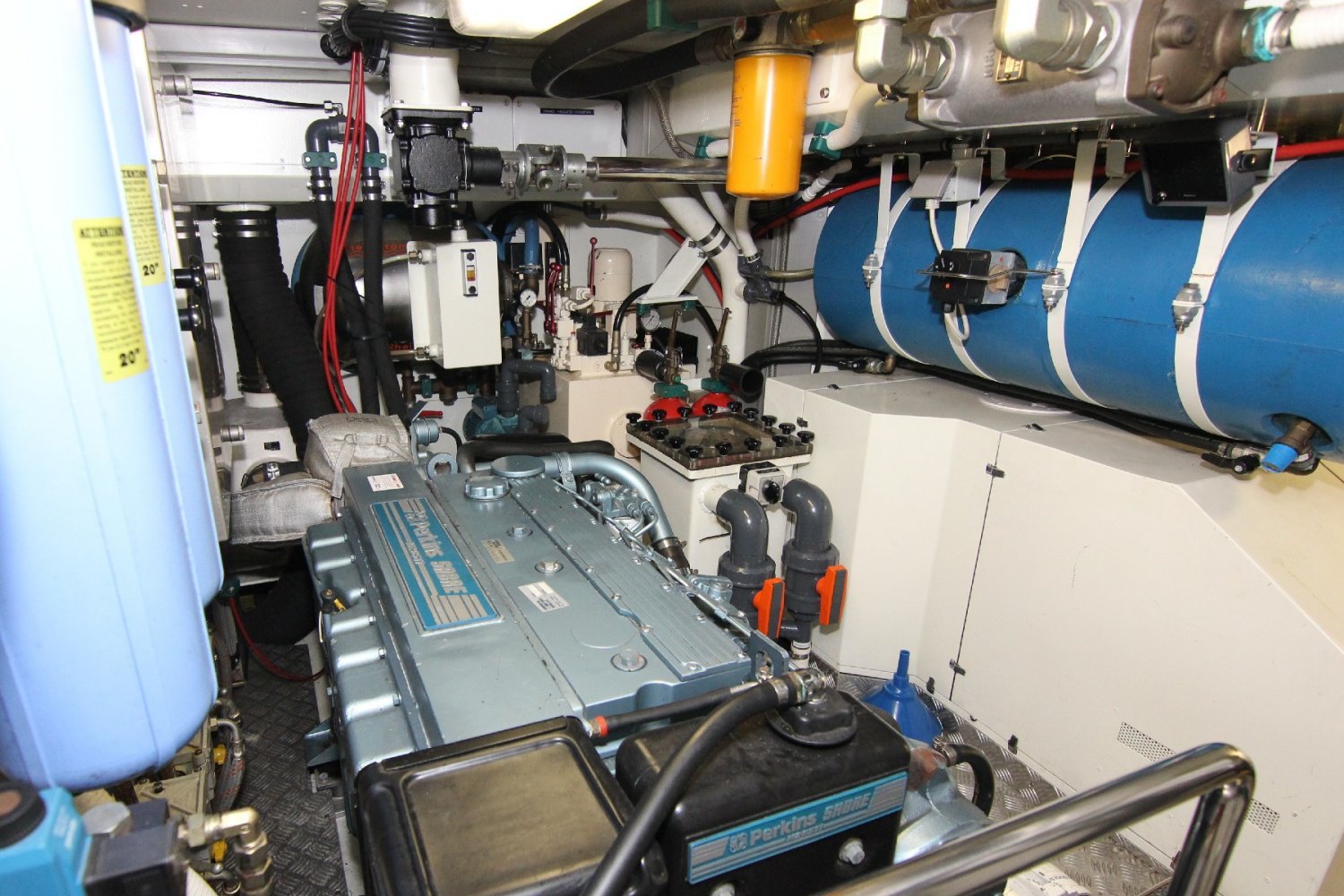

Motor en elektra
Aantal identieke motoren:
1
+ support engine for hydraulics
Merk:
Perkins Sabre M265TI + Perkins Sabre M55 support engine
Bouwjaar:
2000
Vermogen:
1x 265 pk
Draaiuren:
580
(apr. 150 hours for the support)
Brandstof:
diesel
Overbrenging:
schroefas
Voortstuwing:
schroef
carbon 5 blade
Koeling:
indirect
Brandstoftank aantal:
1
Appr. 3.000 litres
Inhoud brandstoftank(s):
3.000 liter
Max snelheid:
9 knopen
Kruissnelheid:
8 knopen
Brandstoftankmeter:
Toerenteller:
Boegschroef:
hydraulisch
Lewmar 400SAH 45 Hp Hydraulic Swing (via support engine)

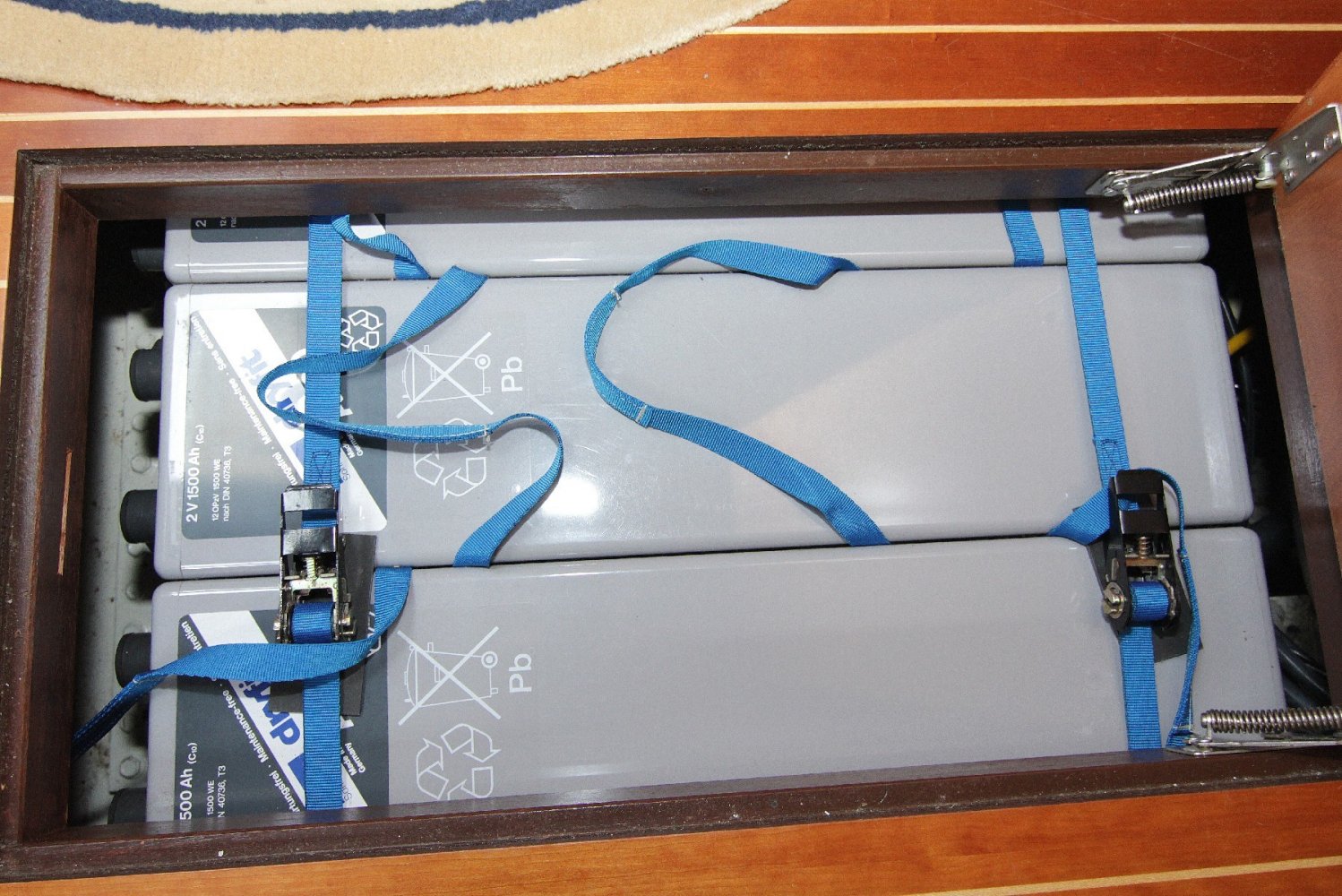

Accu:

Dryfit Gel 12x 2 volt 1.500 Ah each
Acculader:

4x Victron 24Volt /100 Ah
Generator:
Onan 20Kw
Omvormer:

Several Mastervolt
Voltmeter:
Walstroom:
Walstroomkabel:
Voltage:

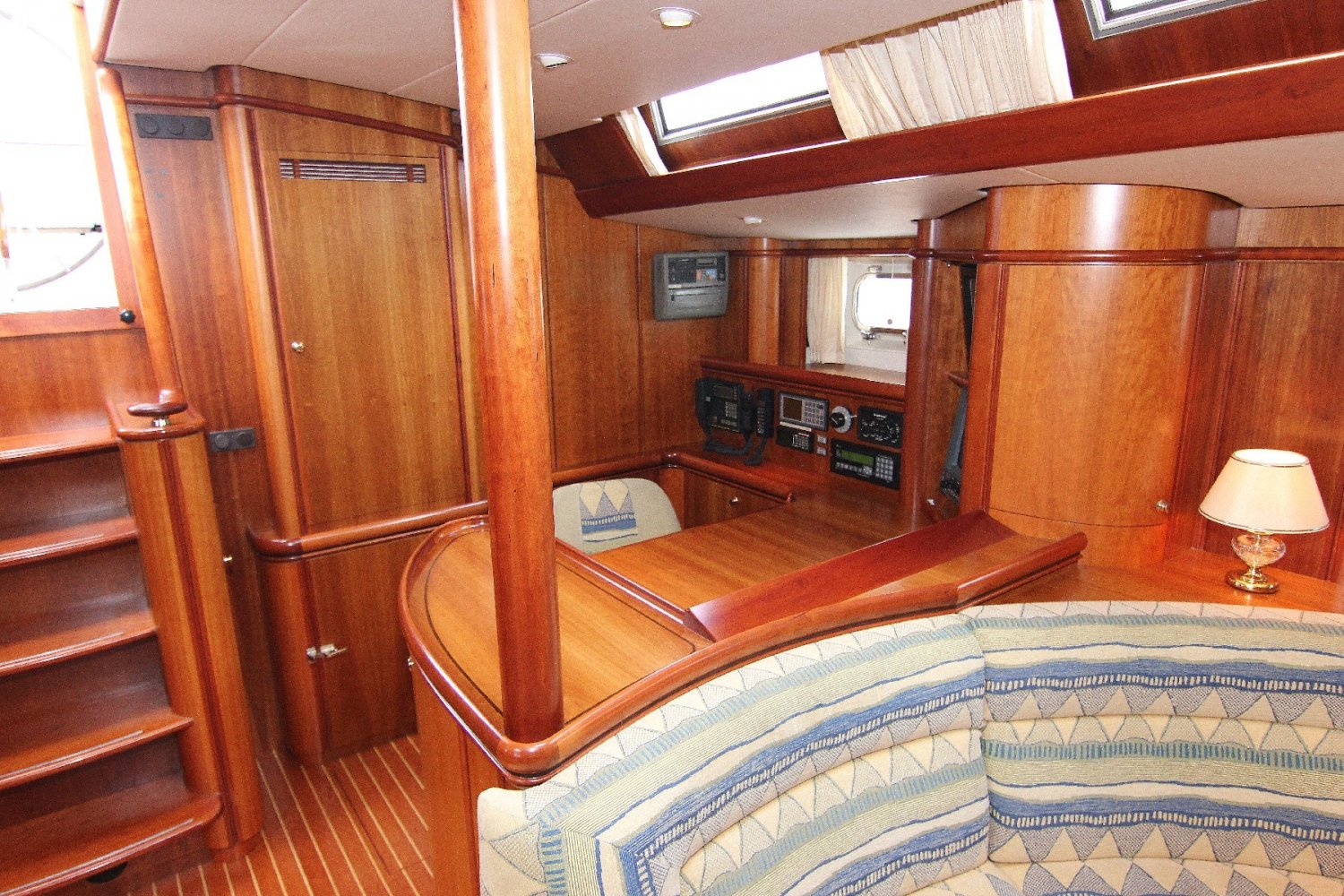

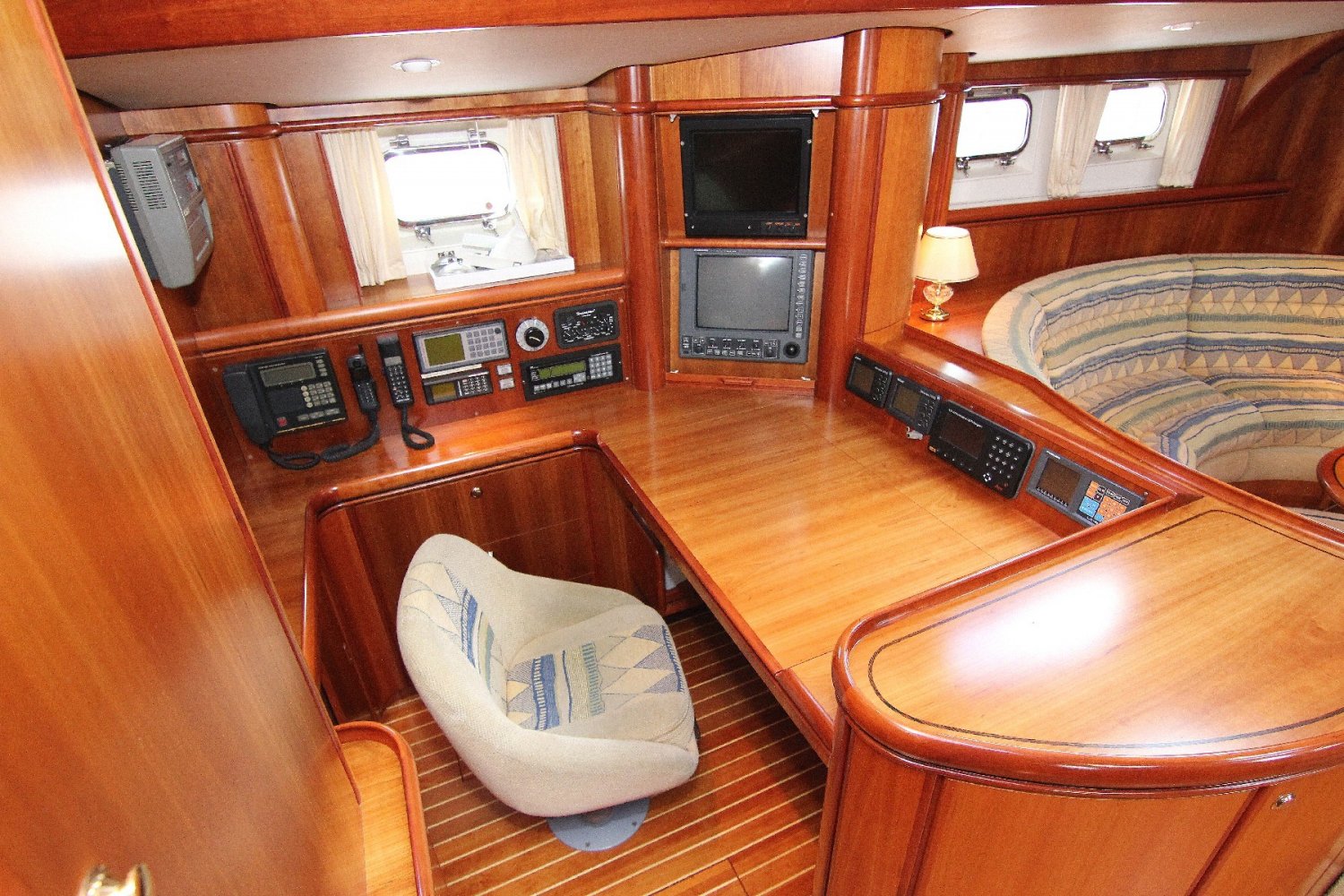

Navigatie en elektronica
Kompas:
B&G electric, Whitlock magnetic and Plath Gyro
Log/snelheid:
B&G Hercules 2000
Dieptemeter:
B&G Hercules 2000
Windmeter:
B&G Hercules 2000
Navigatieverlichting:
Roerstandaanwijzer:
Autopilot:
Segatron Hydraulic
GPS:
Radar:
Furuno FR151 oDA MK2
Marifoon:
Shipmate RS 8400
Weatherfax/Navtex:
Satellietcommunicatie:
Sailor inmarsat c1622 D

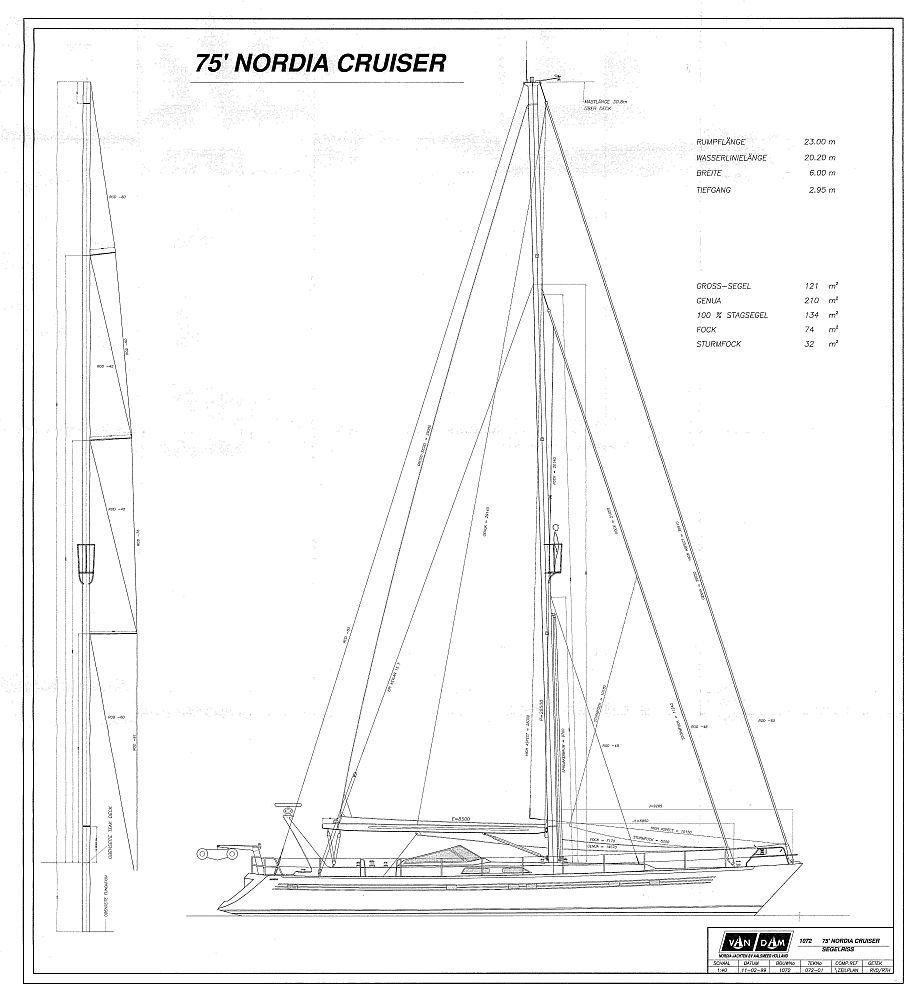

Tuigage
Type tuigage:
masttop
Proctor Stowaway Top rig
Aantal masten:
1
Mast materiaal:
aluminium
Verstaging:
rod rigging
Aantal zeilen:
3
Grootzeil:

121 m2
Rolgrootzeil:

Hydraulic in mast
Genua:

210 m2
Fok:

134 m2
Voorzeil rolsysteem :

Hydraulic
Genua reefsysteem:
Hydraulic Reckman

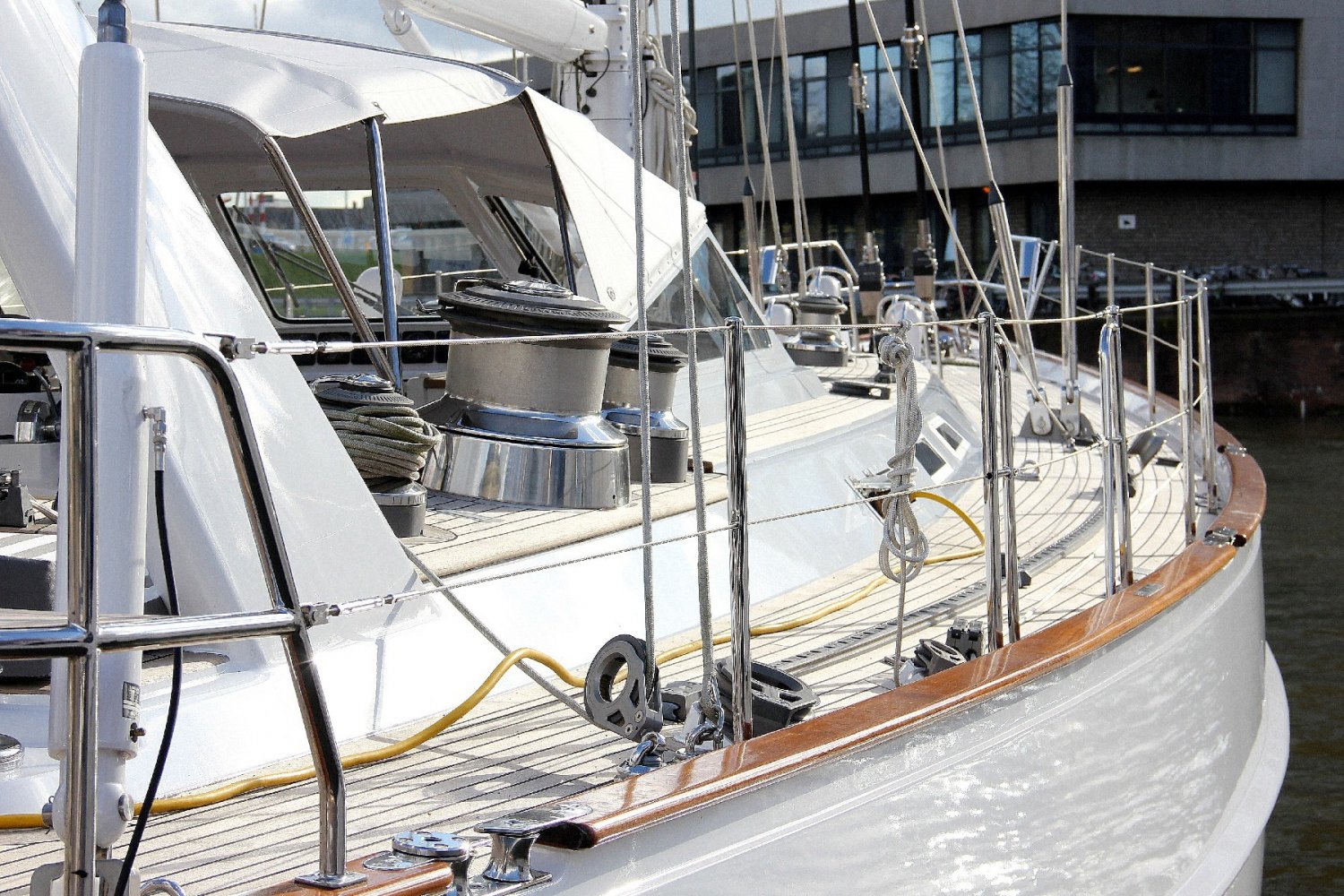

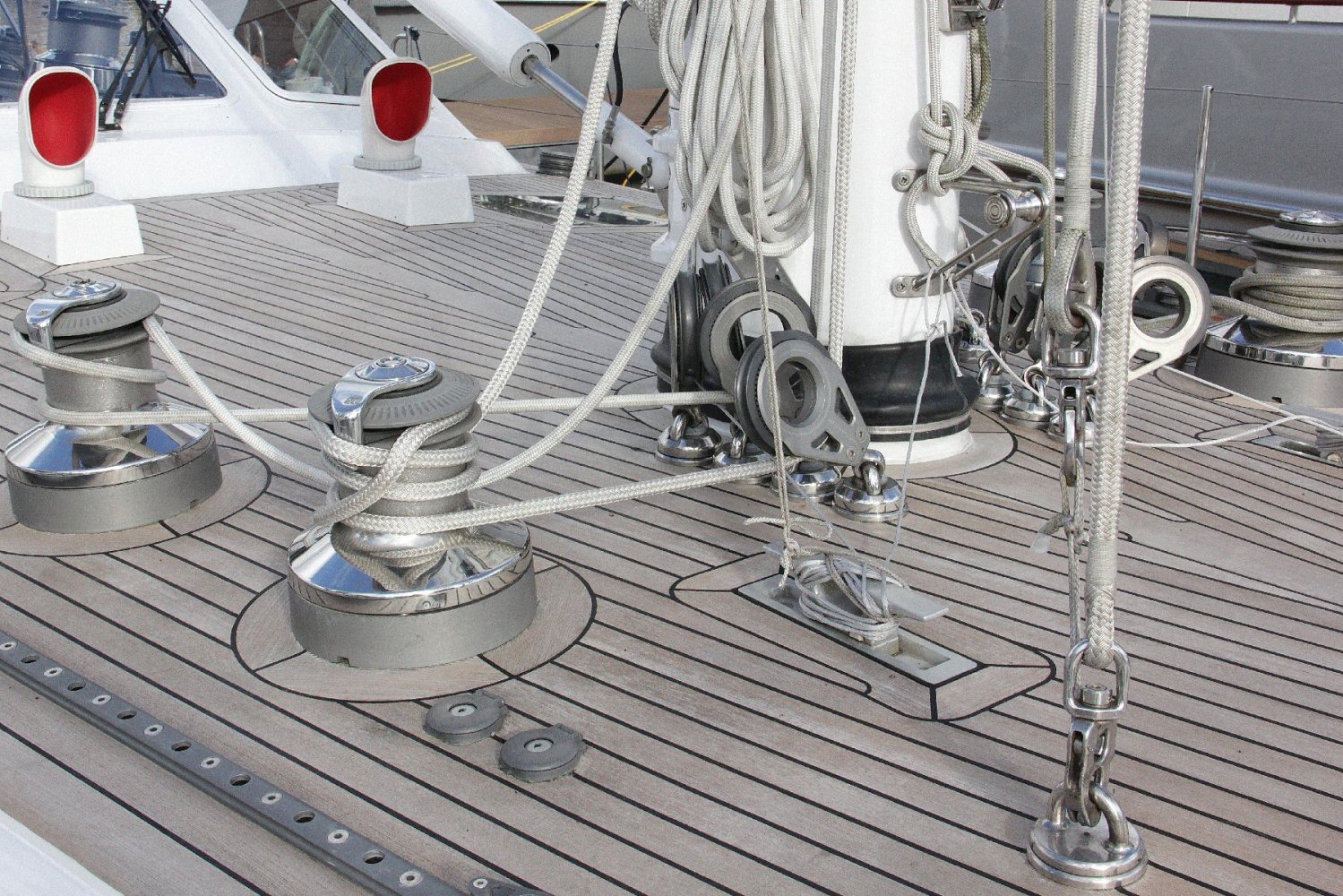

Lieren:
2x Lewmar 122 SHST Hydraulic + several Lewmar ST electrics
Opmerkingen:
- Carbon Proctor Spinnaker boom - Navtec Rod-rigging - Navtec hydraulic backstay + halyard tensioner
Uitrusting buitenom

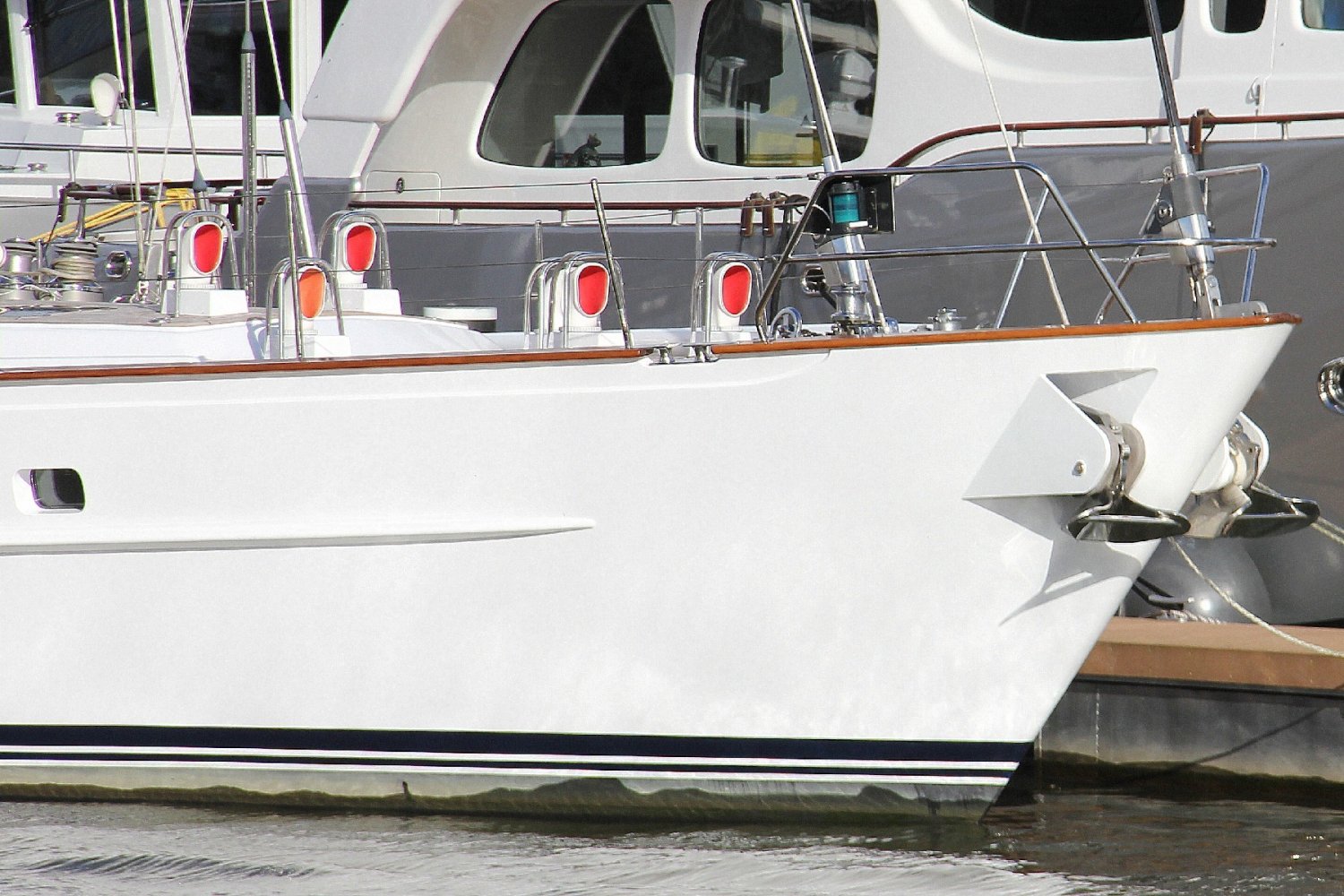

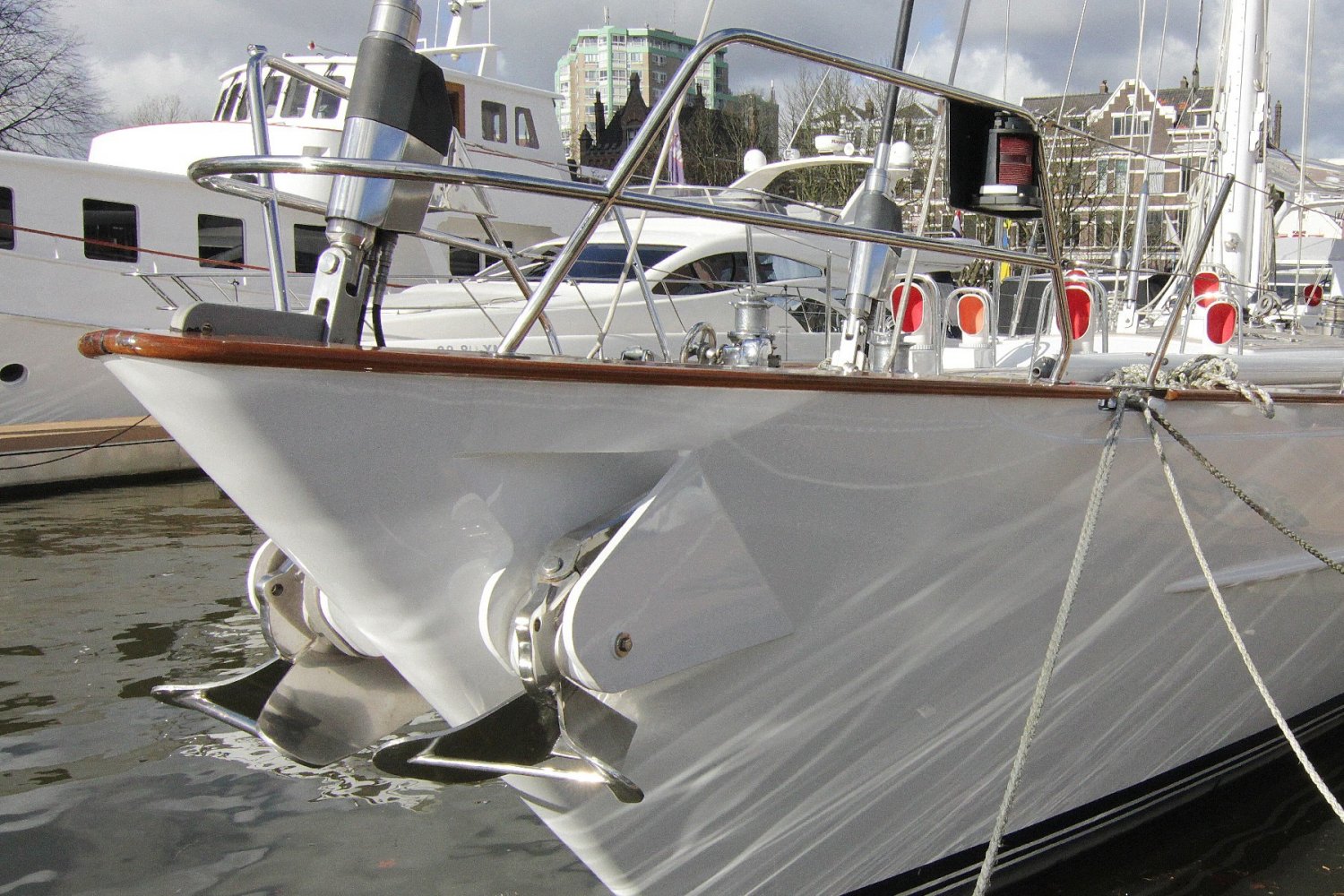

Ankers & materiaal:
2 CQR Stainless anchors rvs
Anker bevestiging:
ketting

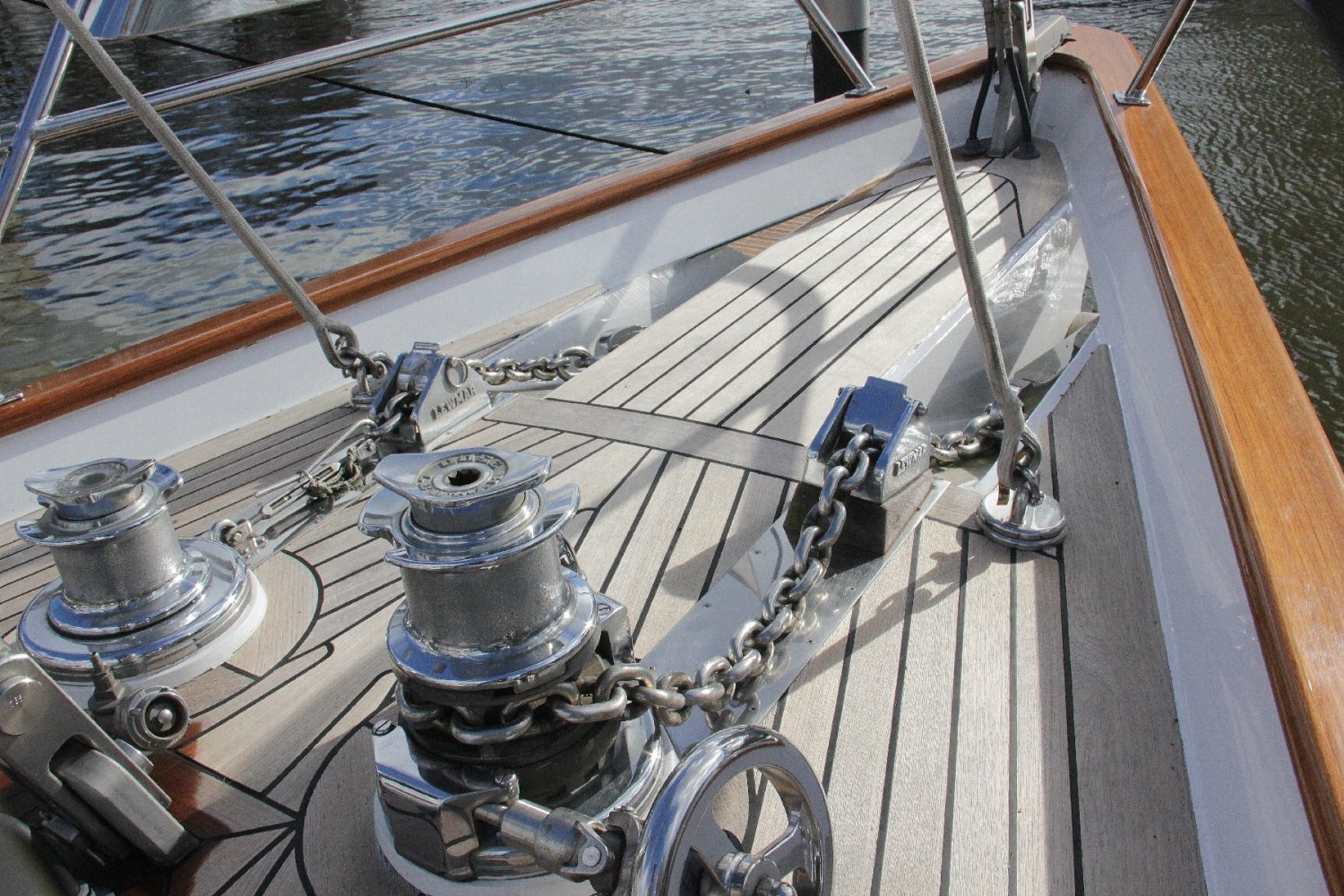

Ankerlier:
hydraulisch
Lewmar 3500 Hydraulic + manual
Buiskap:

(new 2017)
Bimini:

(new 2017)

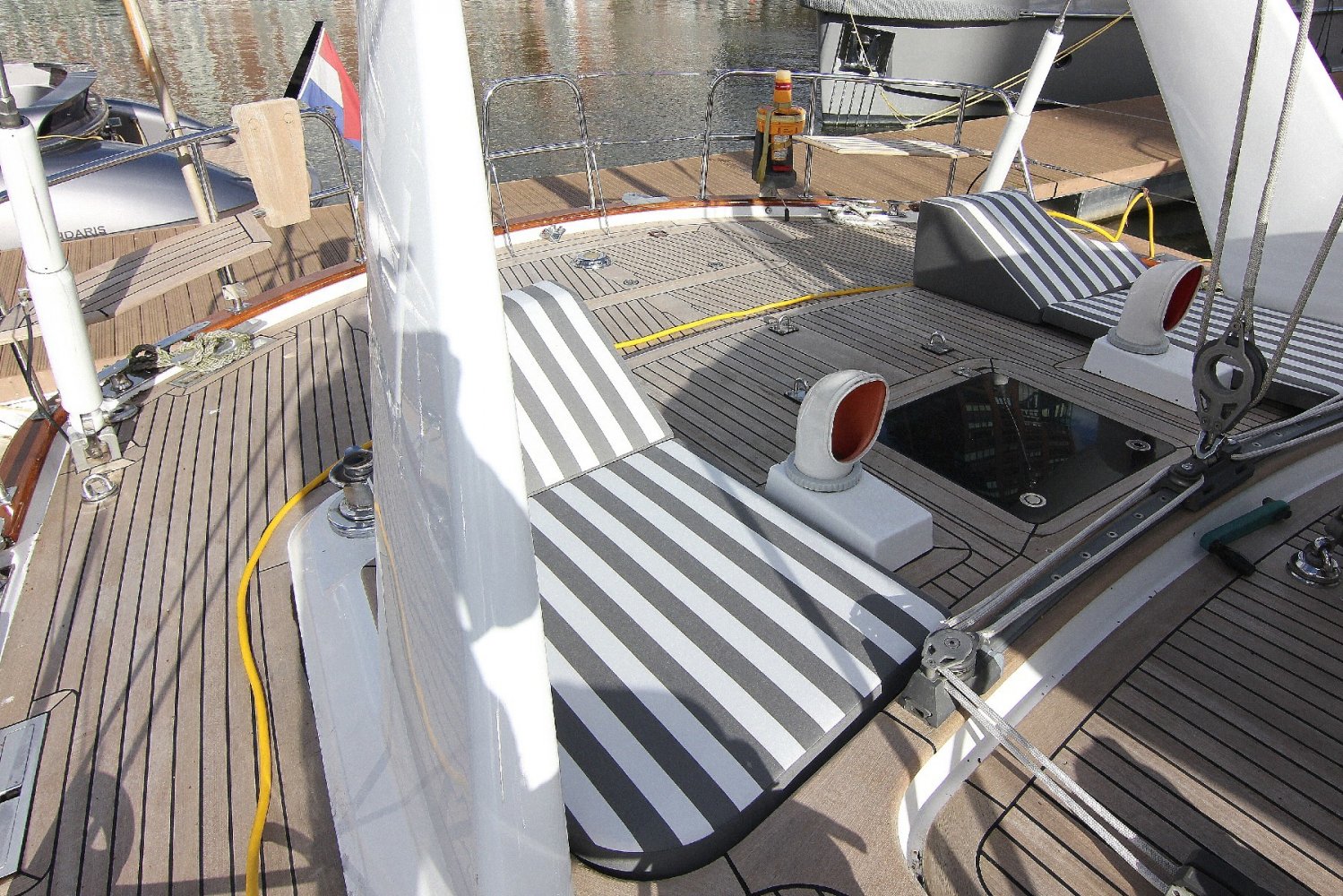

Buitenkussens:

Cockpit cushions + sundeck cushions (new 2017)
Zwemplatform:
Zwemtrap:

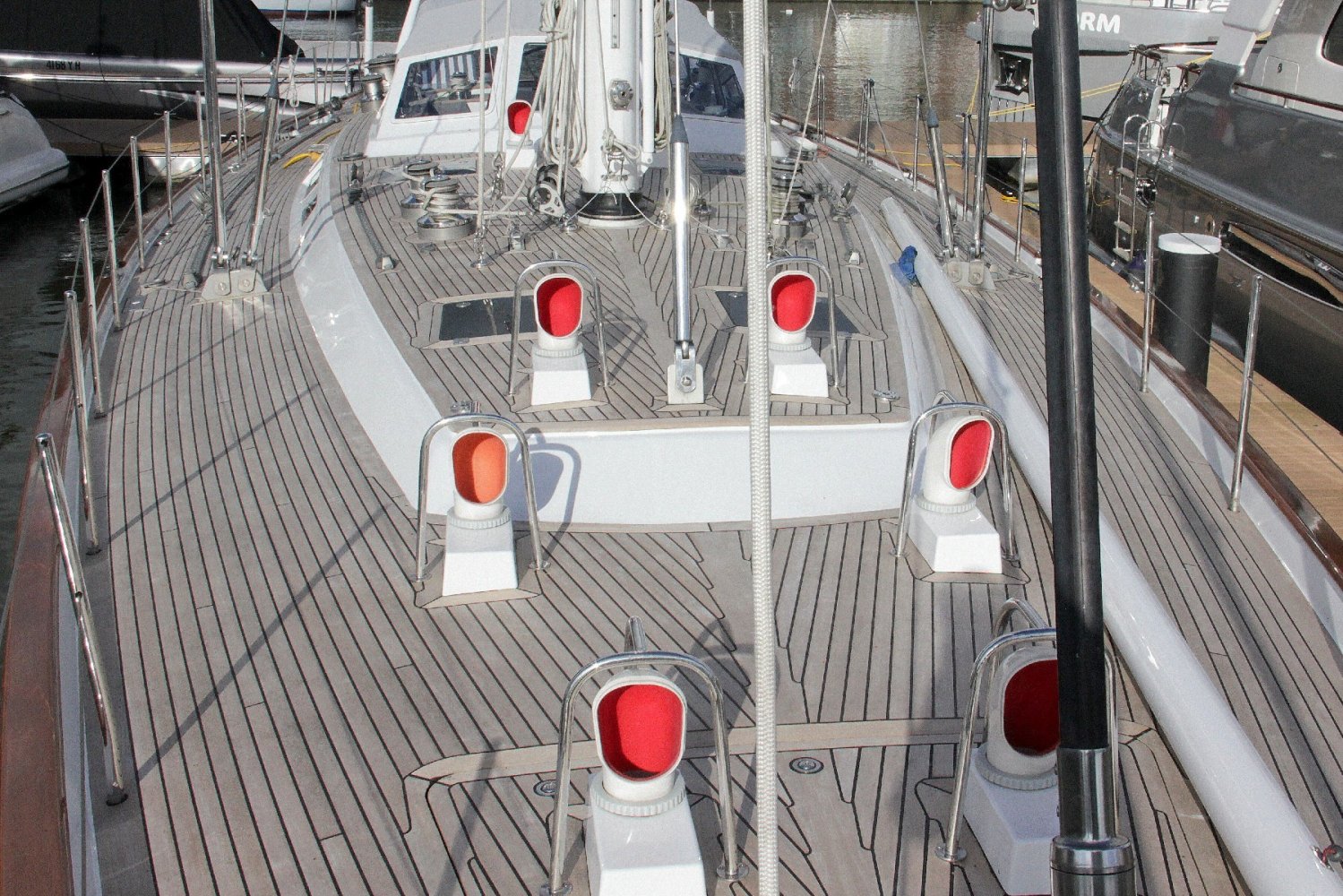

Teakdek:
Kuiptafel:
Veiligheid
EPIRB:
Bilgepomp:

Handmatig

Elektrisch
Brandblusser:

Several systems
Waterdichte deur:

in bow section
