St Francis 48 verkocht

Verkocht
St Francis 48St Francis 48St Francis 48St Francis 48St Francis 48St Francis 48St Francis 48St Francis 48St Francis 48St Francis 48St Francis 48St Francis 48St Francis 48St Francis 48St Francis 48St Francis 48St Francis 48St Francis 48St Francis 48St Francis 48St Francis 48St Francis 48St Francis 48St Francis 48St Francis 48St Francis 48St Francis 48St Francis 48St Francis 48St Francis 48St Francis 48St Francis 48St Francis 48St Francis 48St Francis 48St Francis 48St Francis 48St Francis 48St Francis 48St Francis 48St Francis 48St Francis 48St Francis 48St Francis 48St Francis 48St Francis 48
Slideshow
Print specs
Delen
Prijs:

Verkocht

Bouwjaar:

2003

Afmetingen:

14,63 m x 8,00 m x 1,25 m

Materiaal:

Polyester

Motor:

2x Yanmar 4JH3-TE 75Hp

Ligplaats:

ALMERIA (ES)

Meer over de St Francis 48

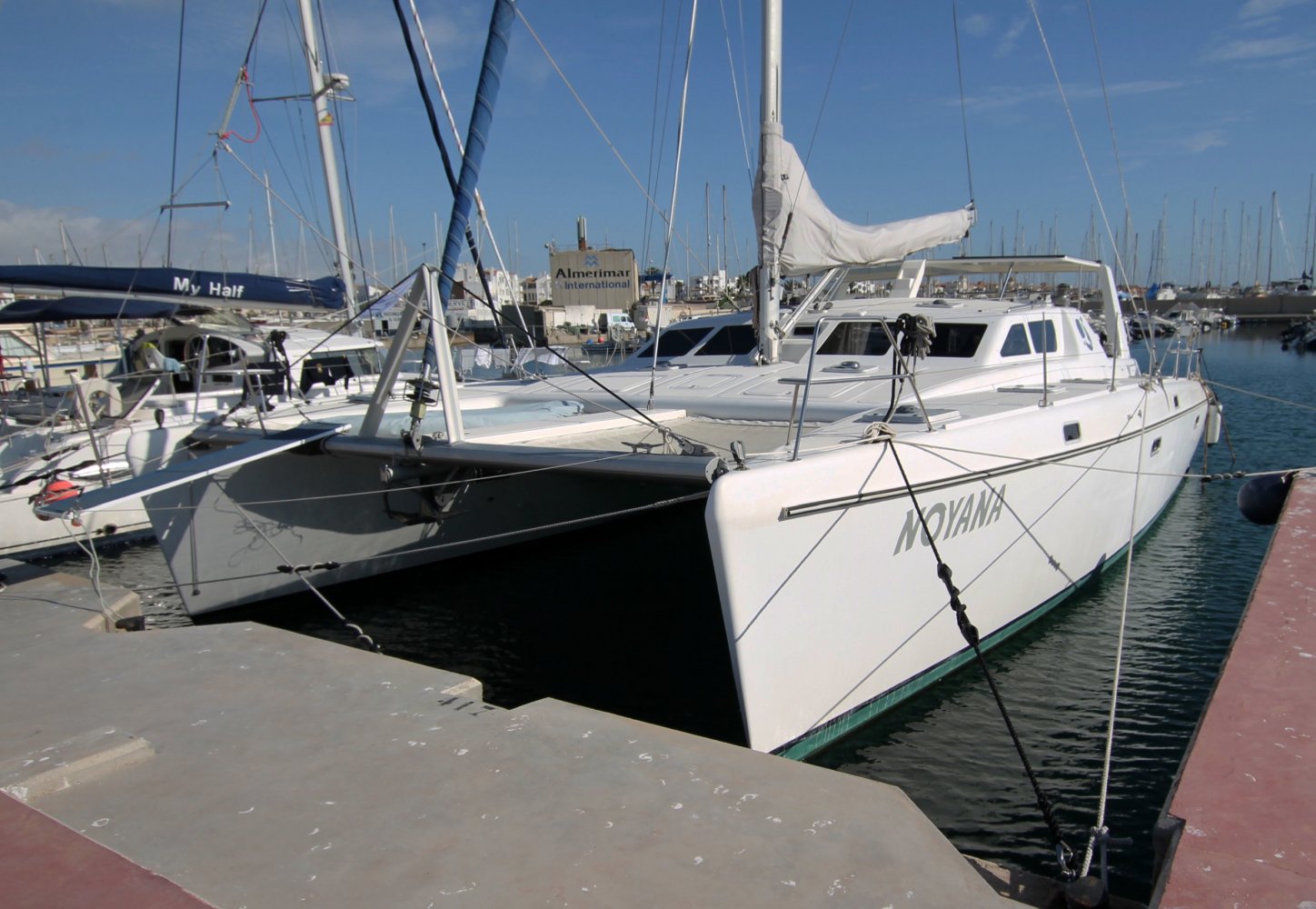

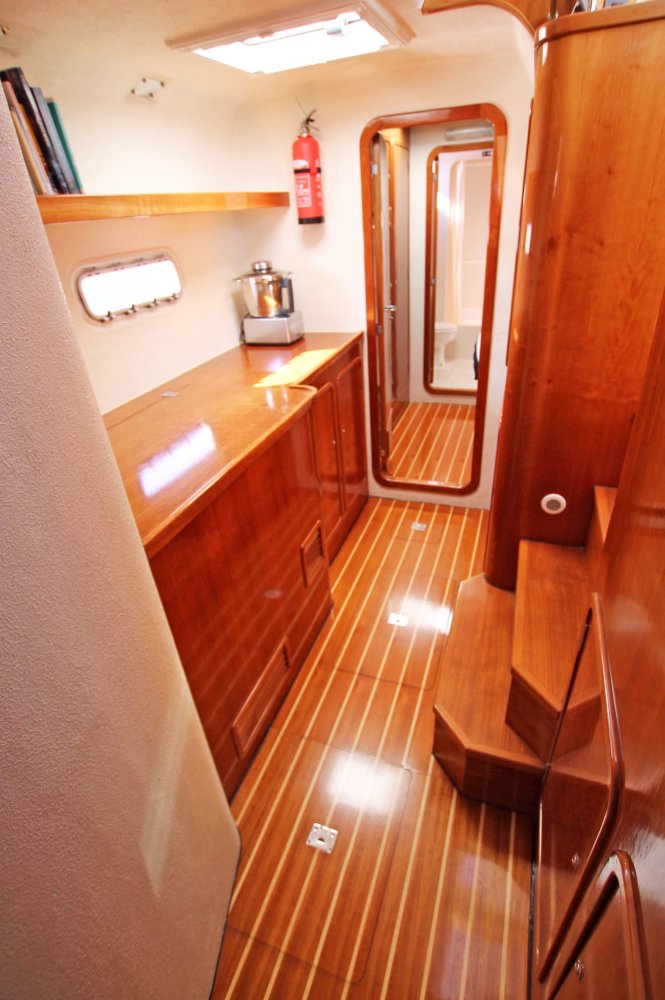

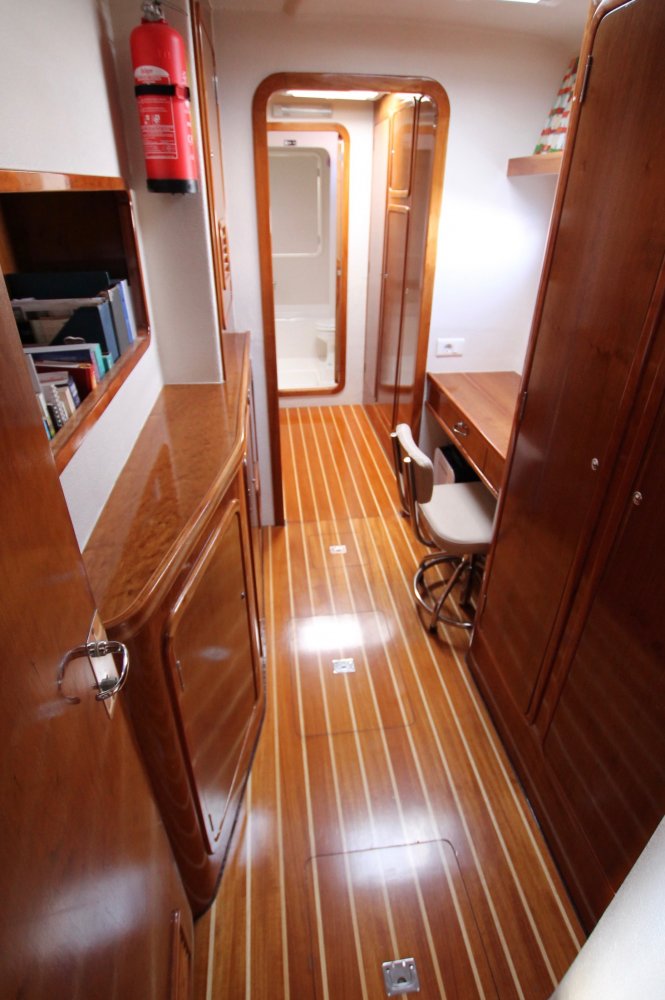

St Francis 48 catamaran NOYANA in excellent condition, located in Marina Almerimar, South Spain. Designed by Angelo Lavranos, this catamaran is a good compromise for serious voyagers. She has the strength and quality to go anywhere with magnificent overall performance. Fine bridge deck clearance with outstanding deck and handling ergonomics. Superb construction quality by St Francis Marine in South Africa with foam core hull/bridgedeck and deck for strength and weight reduction. Her furniture and cabinets are to a much higher standard than you´ll find on most french production cats. NOYANA has a distinguished yachtly feel inside, with real teak and holly floors. A true “home away from home”.

Equipped with optional Turbo Rig to enhance this St Francis 48's existing sailing performance and daily runs of over 200 miles are the norm. The current (2nd) owners bought her in October 2016 with the intention to go world cruising. She was up to than lightly used with only 3000NM on her log and 600 engine hrs and kept on fresh water in Amsterdam. In 2018 the owners made serious investments for undisturbed 10 years of world sailing. In the summer of 2019 they sailed from the Netherlands to the Mediterranean, unfortunately, due to changed personal circunstances, they gave up their circumnavigation dream and with pain in their heart put her up for sale.

NOYANA is in a truly excellent cosmetic & mechanical condition for her age, and constantly maintained by her current owners, who are living on board since June 2018. She is really ready to go anywhere.

Algemeen

Ontwerper:
Lavranos Marine Design Ltd
Werf:
St Francis Marine South Africa
Bouwnummer:
ZA-XGF48004L203
CE:
A
CE max gewicht:
17.328 kg
CE aantal opvarenden:
10
Rompvorm:
Rondspant
Rompkleur:
Wit
Dek en opbouw kleur:
Wit
Dek en opbouw materiaal:
Polyester sandwich
Kuip:
Achterkuip
Diepgang:
125 cm
Waterverplaatsing:
11.500 kg
Besturing:
Stuurwiel
Plek besturing:
Buiten
Roer:
Dubbel
Kiel/zwaard:
Vaste kiel
Opmerkingen:

St Francis catamarans are characterized by slender bows, high freeboard, bridgedeck clearance and low water displacement. This St Francis 48 has a weight of only 11.500 Kg. Construction consits of one mold for the deck and only one mold for the hulls/bridgedeck, both of which are cored with closed cell foam using quadriaxial non-crimp fabric, isopthalic resin, and NPG gel coat.

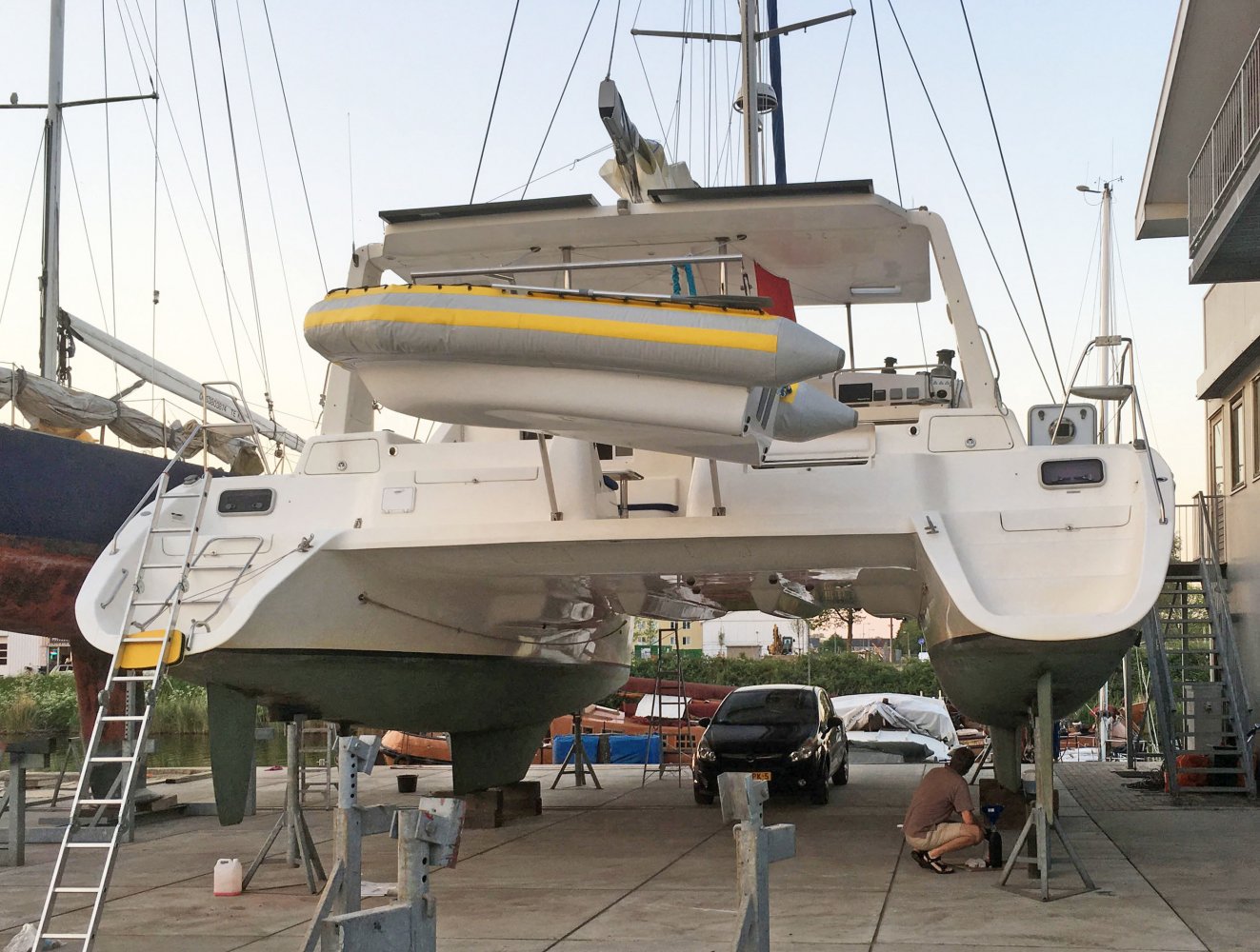

This St Francis 48 is coppercoated below the waterline.

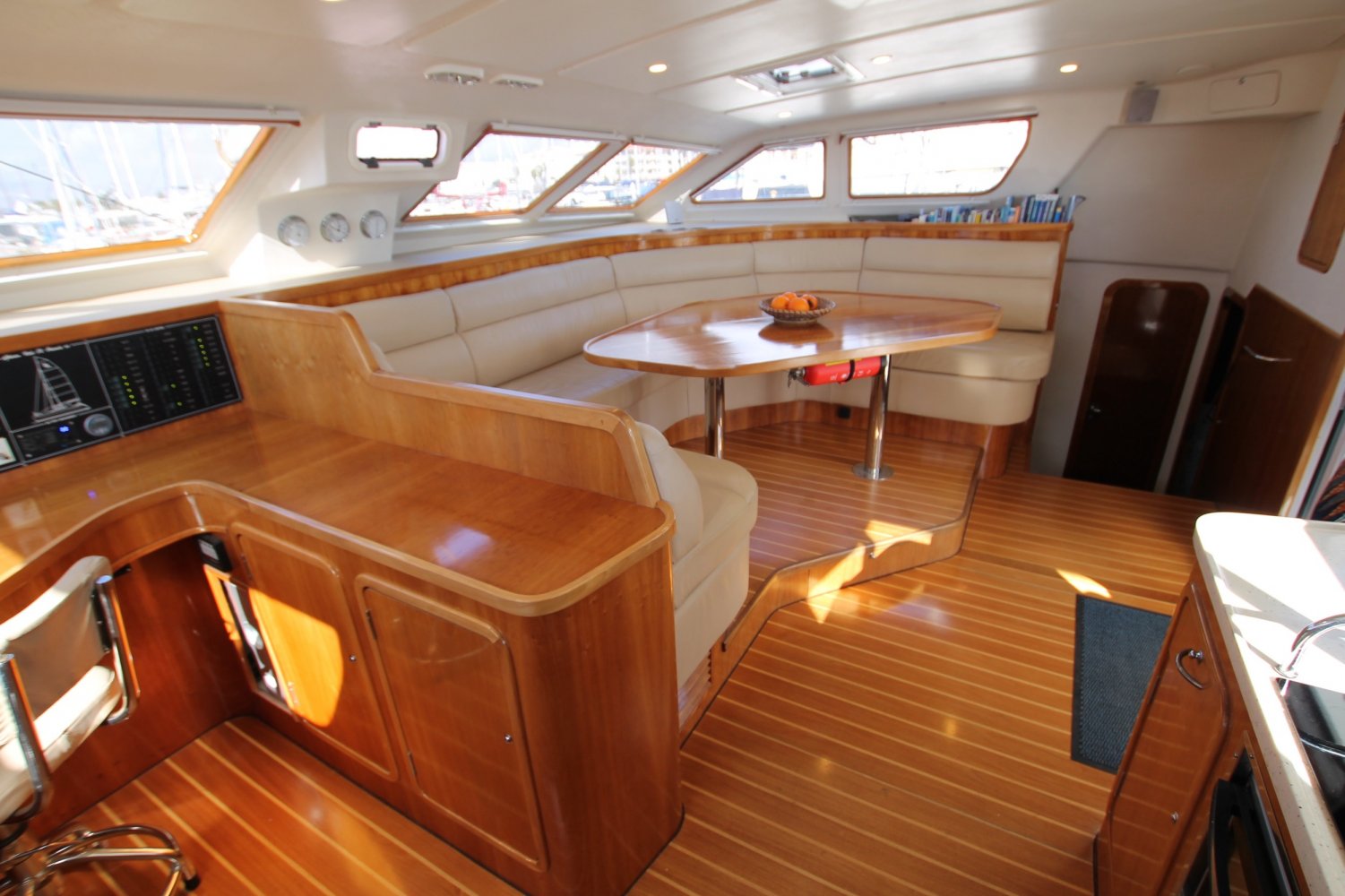

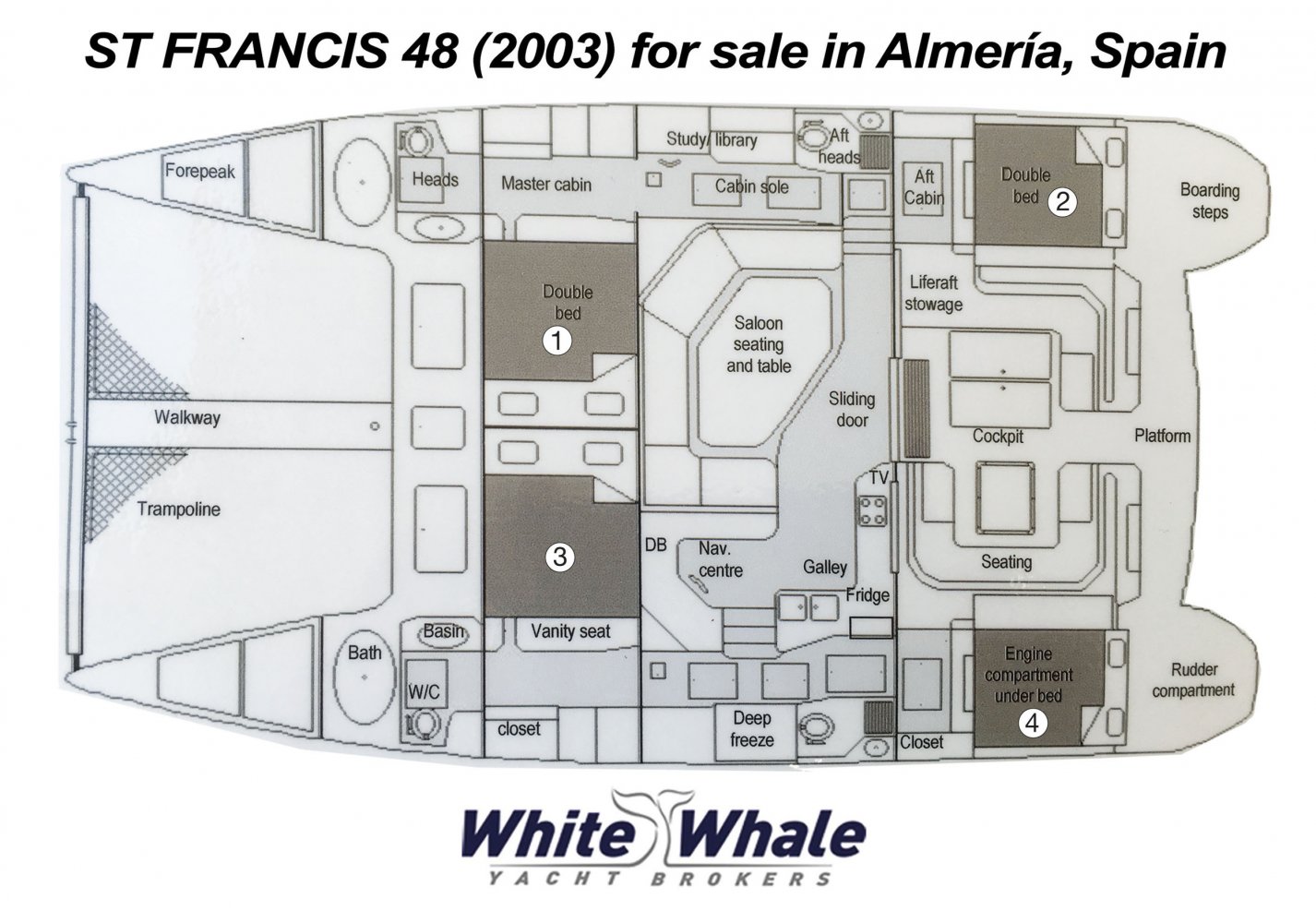

Accommodatie

Salon:
Machinekamer:

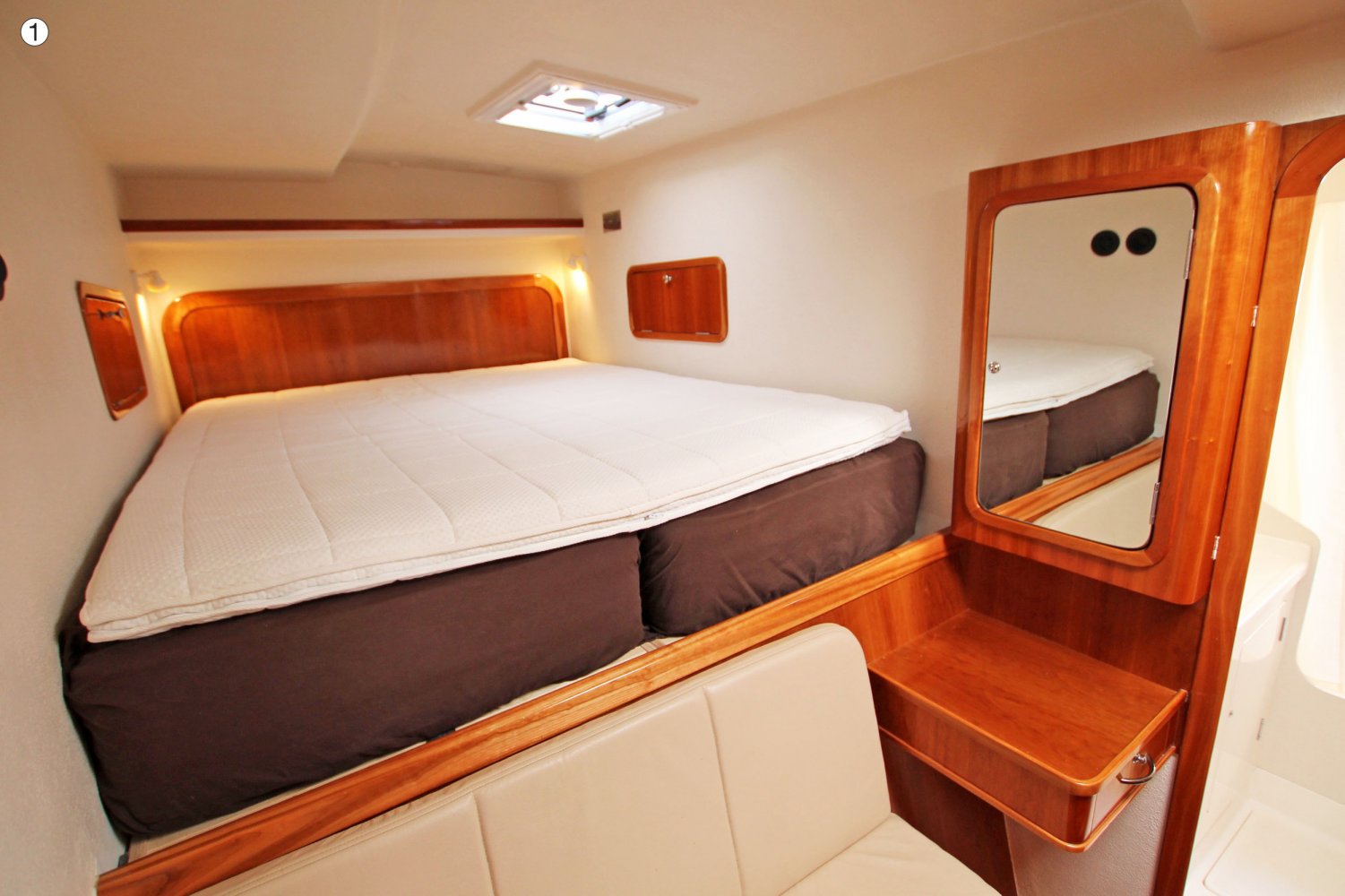

Hutten:
4

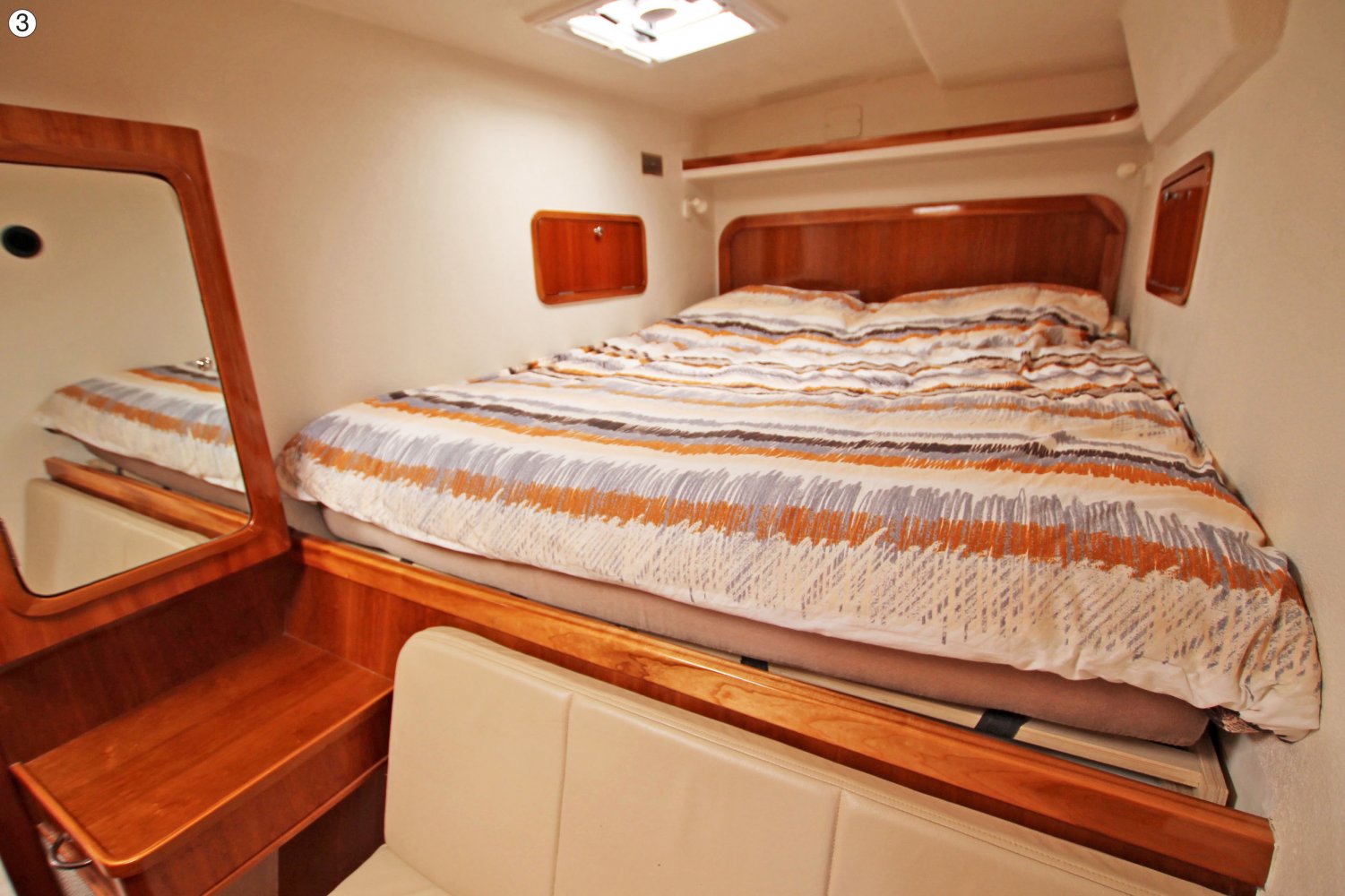

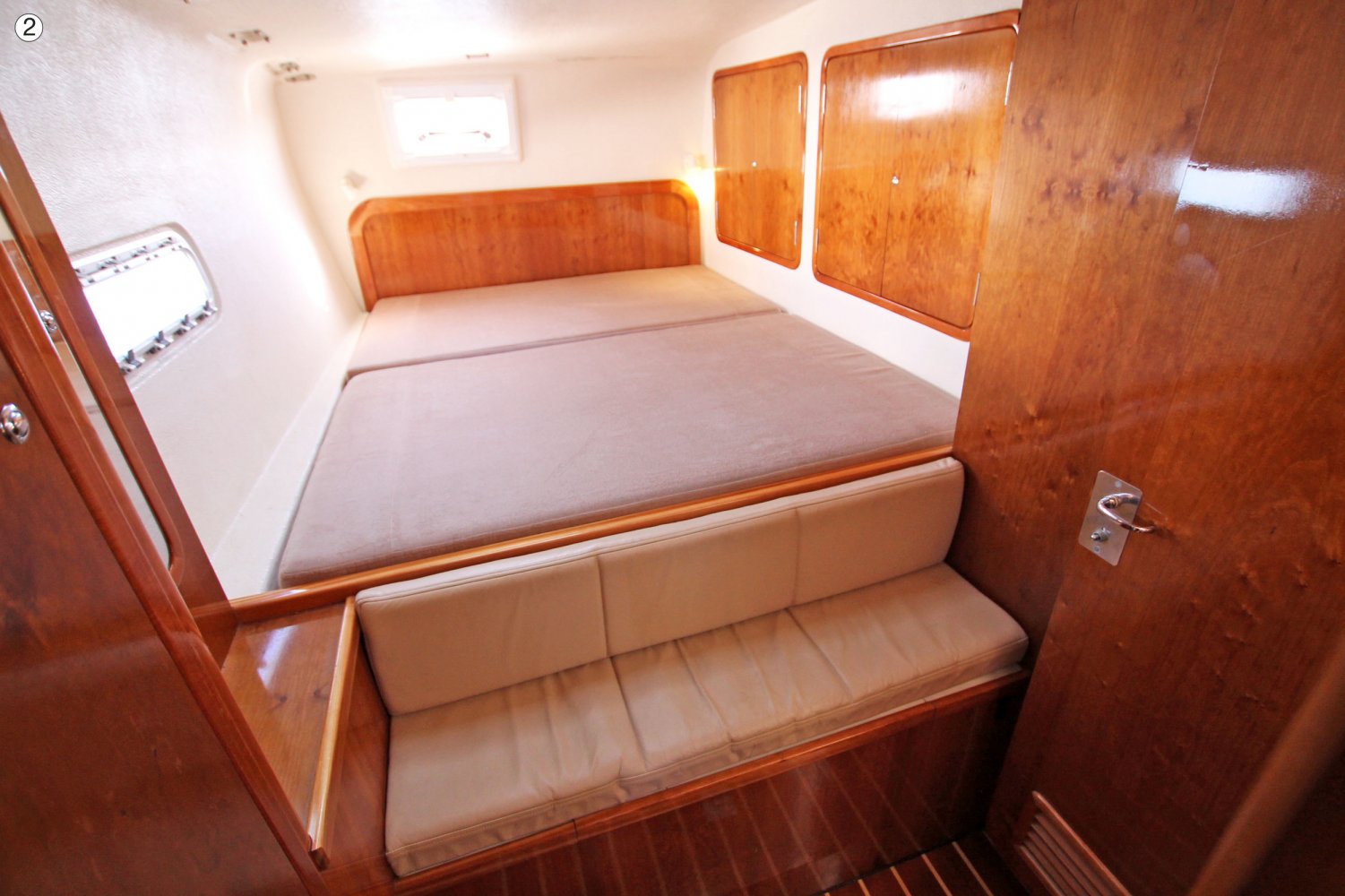

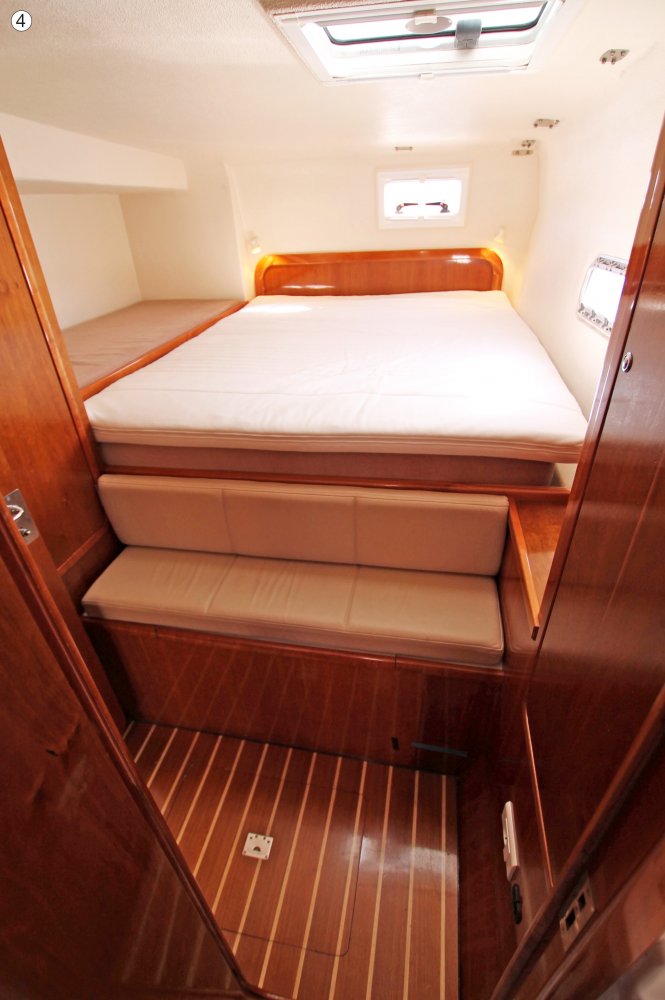

Double cabins each with individual bathroom
Slaapplaatsen:
Vast: 8
2 Double 155x200cm, 2 double 163x210cm
Type interieur:
Klassiek, warm
with leather upholstery
Kleur stoffering:
Beige
Matrassen:
Kussens:
Gordijnen:
Ocean Air Blinds
Watertank & materiaal:
1.350 liter Polyester
Watertankmeter:
Watermaker:
60 liter/uur
Spectra Santa Cruz, completely overhauled 2018 (before it was never used)
Vuilwatertank & materiaal:
600 liter Polyester
(In-keels)
Watersysteem:
Druksysteem
Warm water:
SPA 25L 1300W (2019)
Buitenwater:
buitendouche

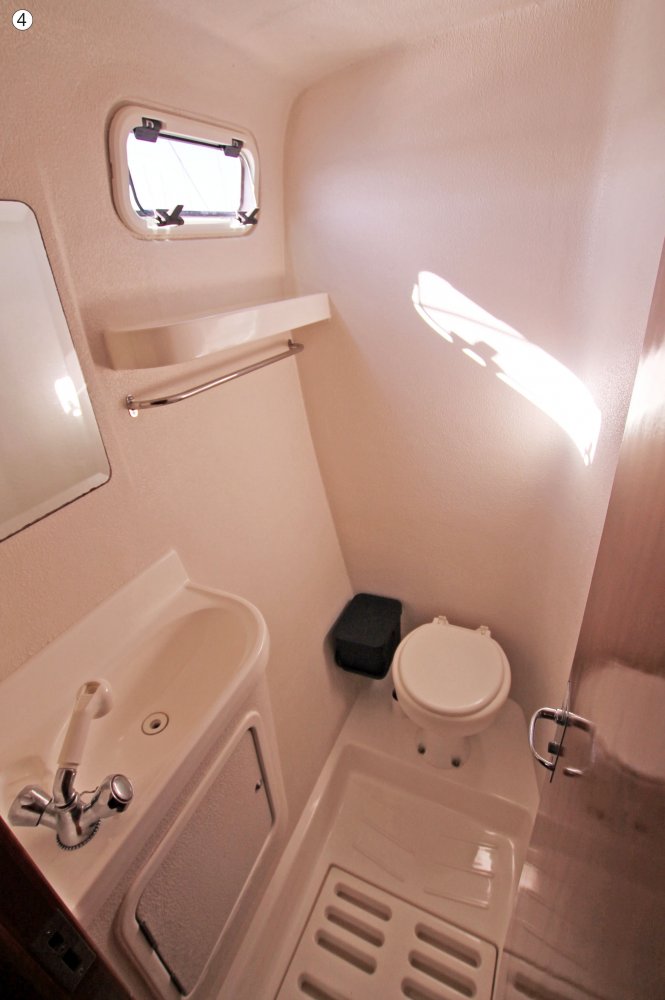

Aantal douches:

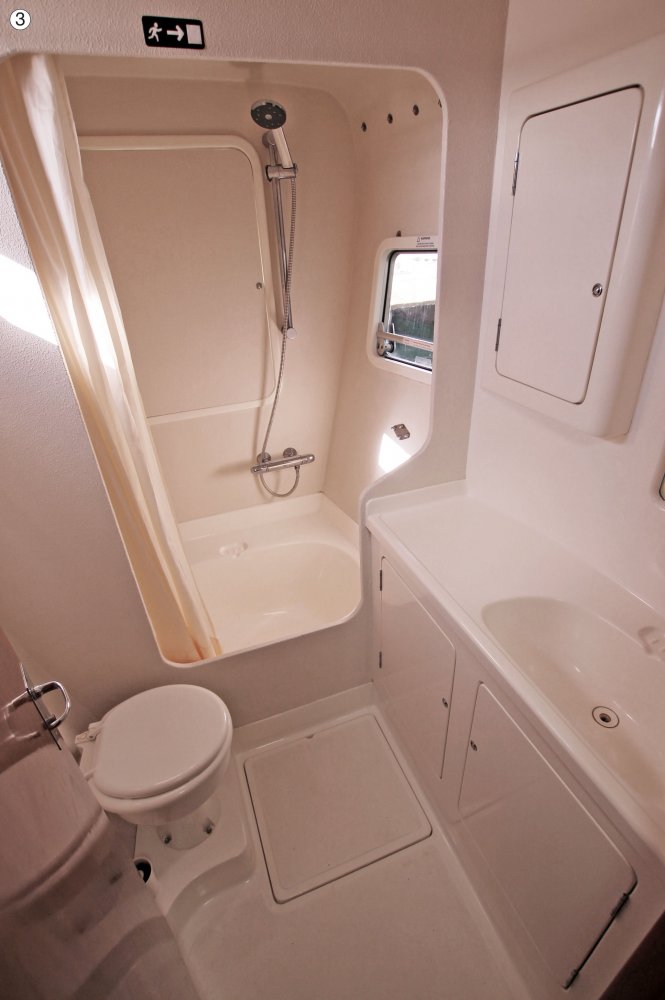

4

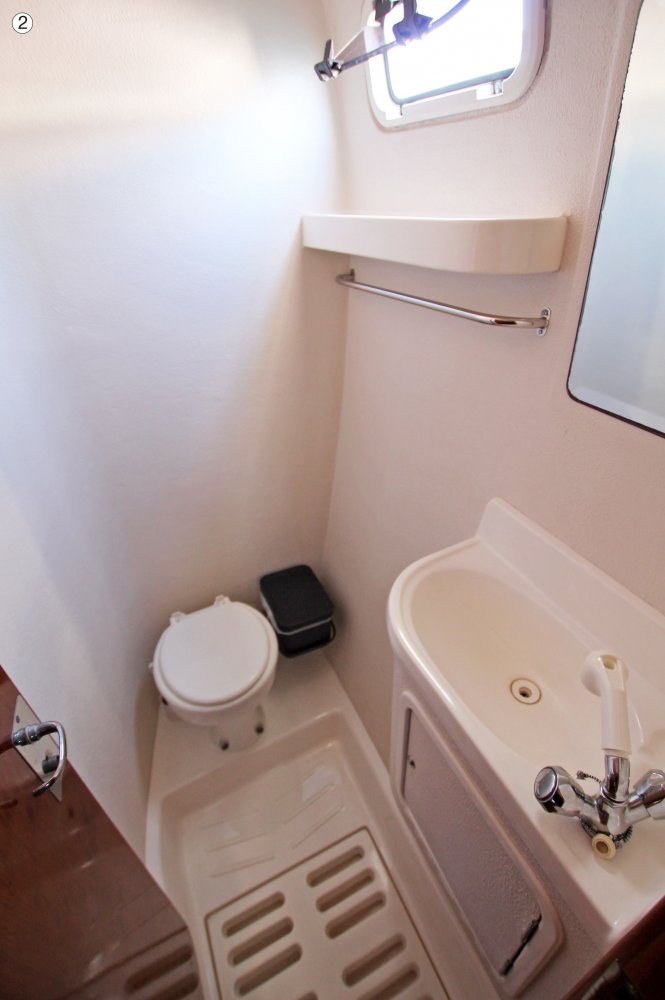

2 Showers including hip bath
Toiletten:
4
Electric fresh water toilets
TV:
Flatscreen in salon
Radio/CD-speler:
Pioneer HiFi Surround System with 5 speakers and 1 subwoofer
DVD-speler:
Kooktoestel & brandstof:
4 pit(ten) Inductie
Burner
Oven:
Electric
Magnetron:
Koelkast & voeding:
115 liter Elektrisch
12V (2018)
Vriezer:
60 liter
Dometic CFX (2018)
Verwarming:
hete lucht Webasto 2x5Kw
Airconditioning:
Marine Air Systems
2x 16.000 Btu
Opmerkingen:

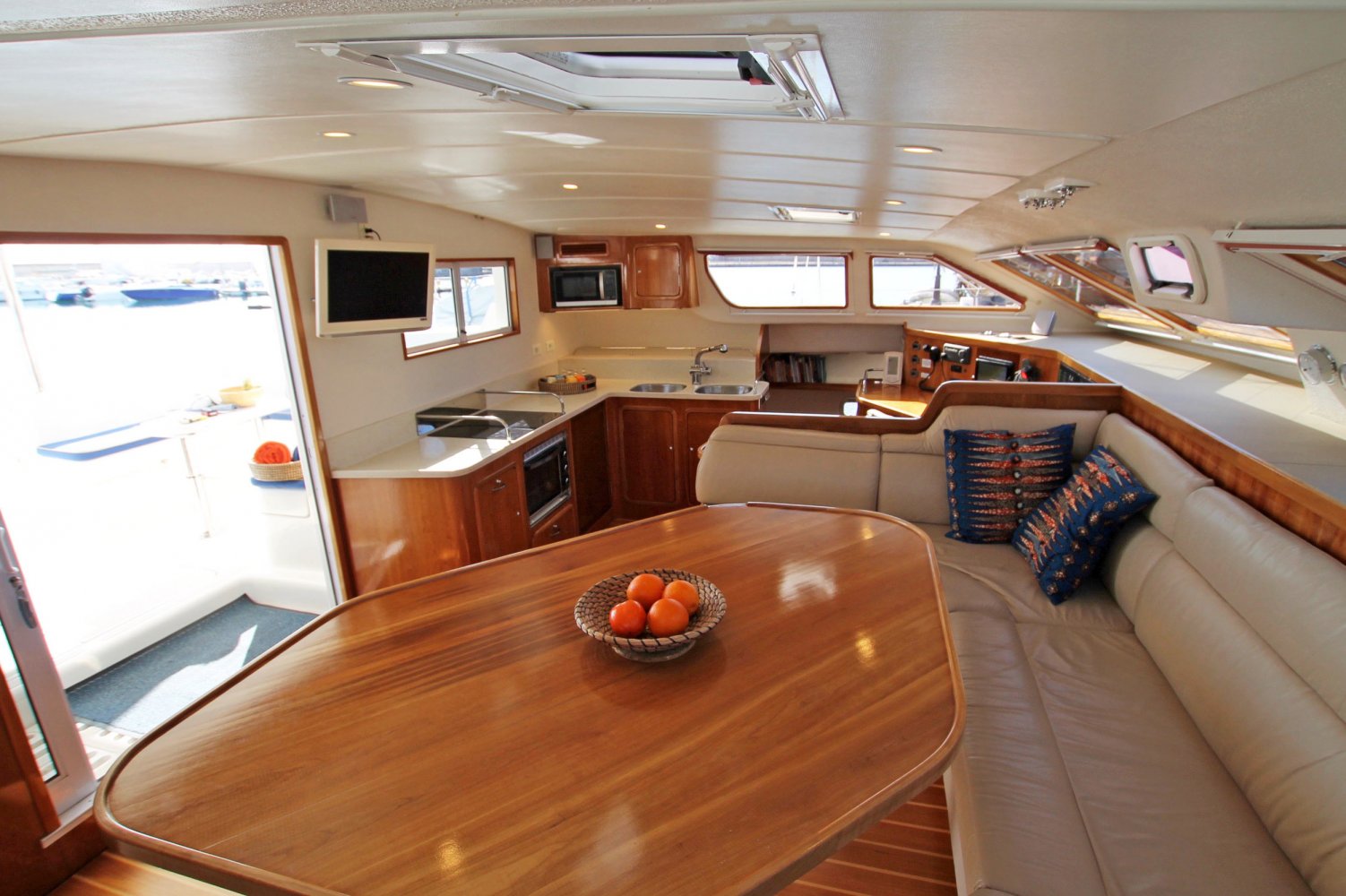

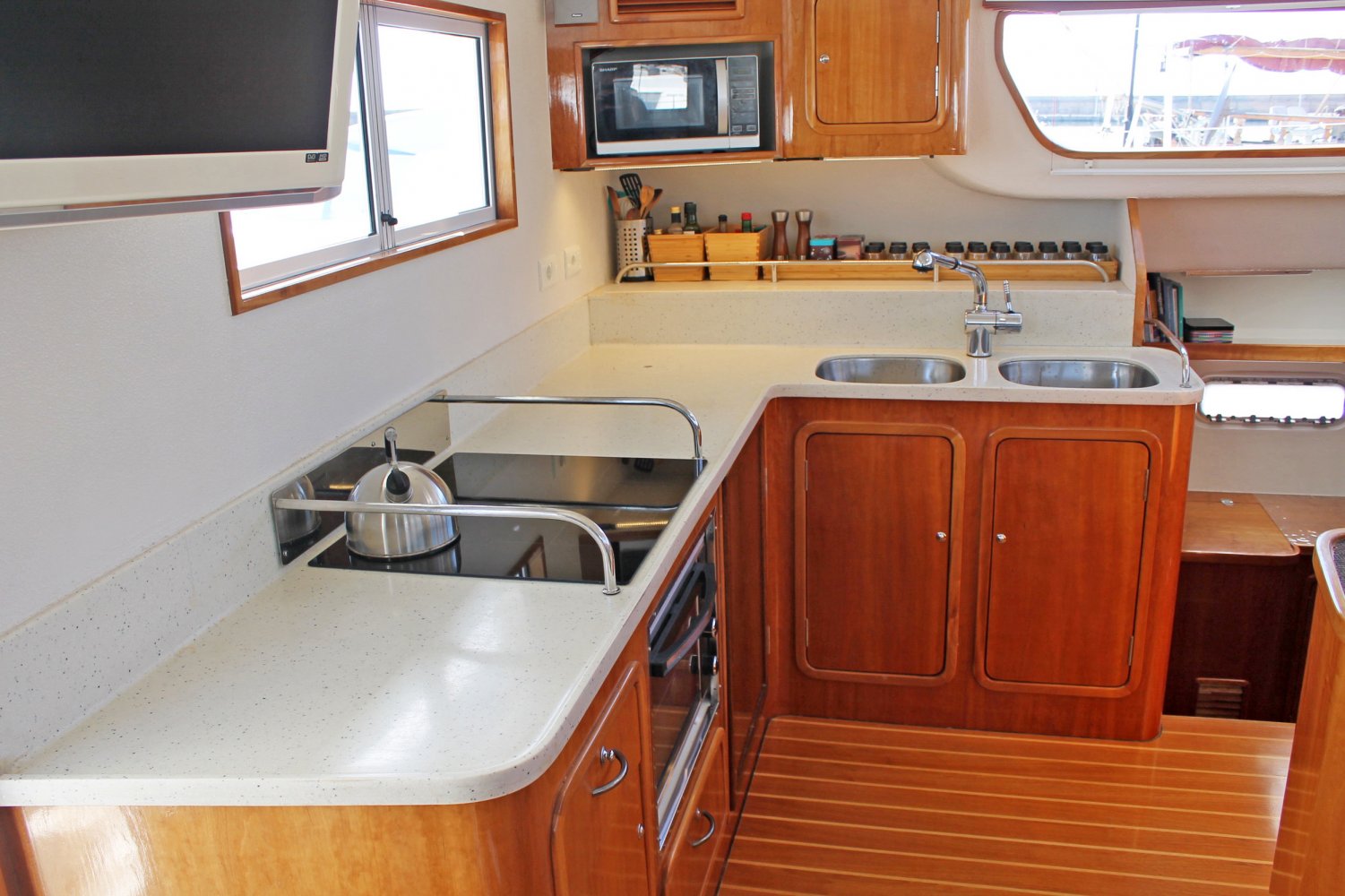

Kitchen with Corian worktop and double sink. Kitchenware: 8 Drink glasses with St Francis logo included.

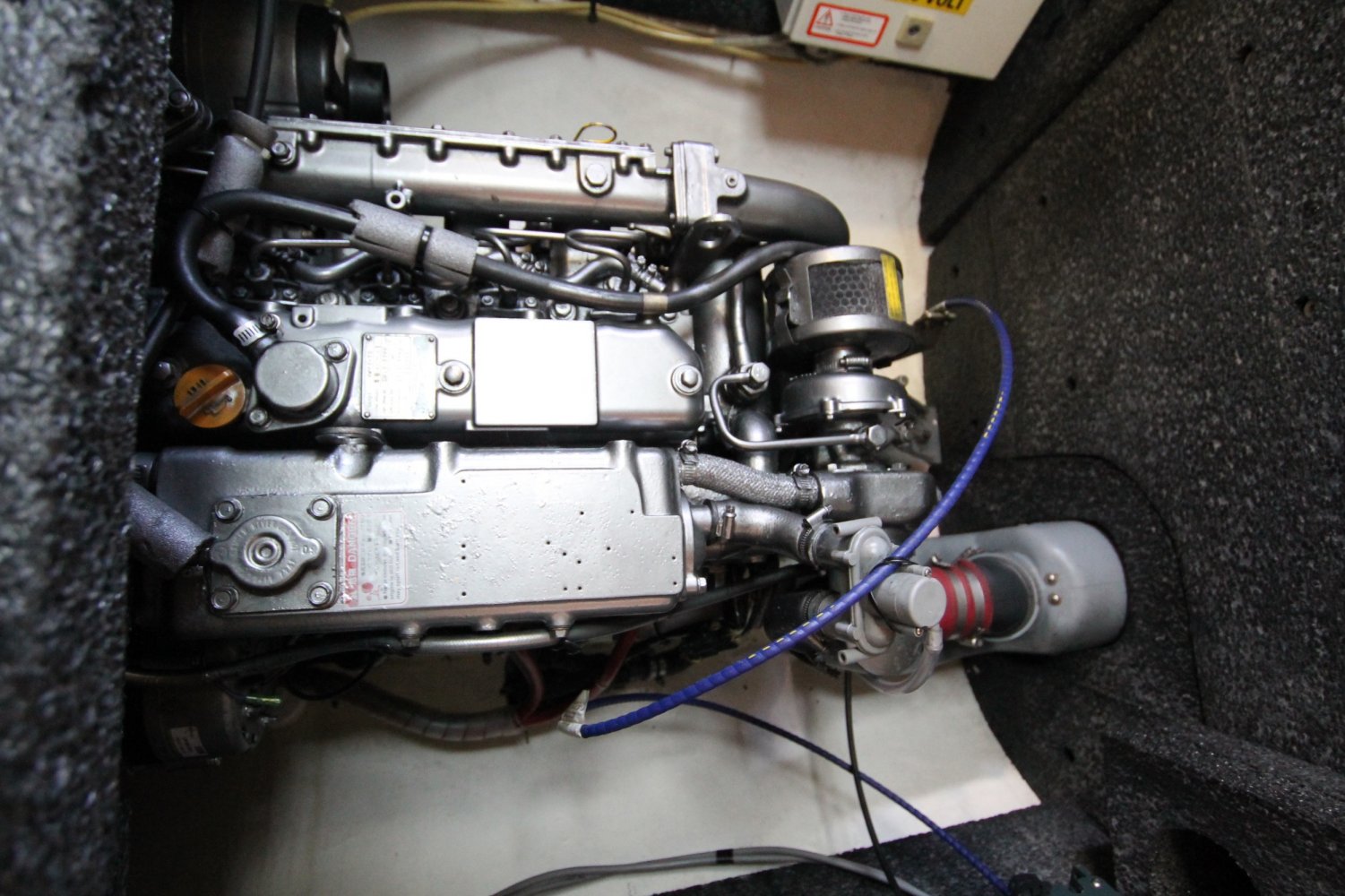

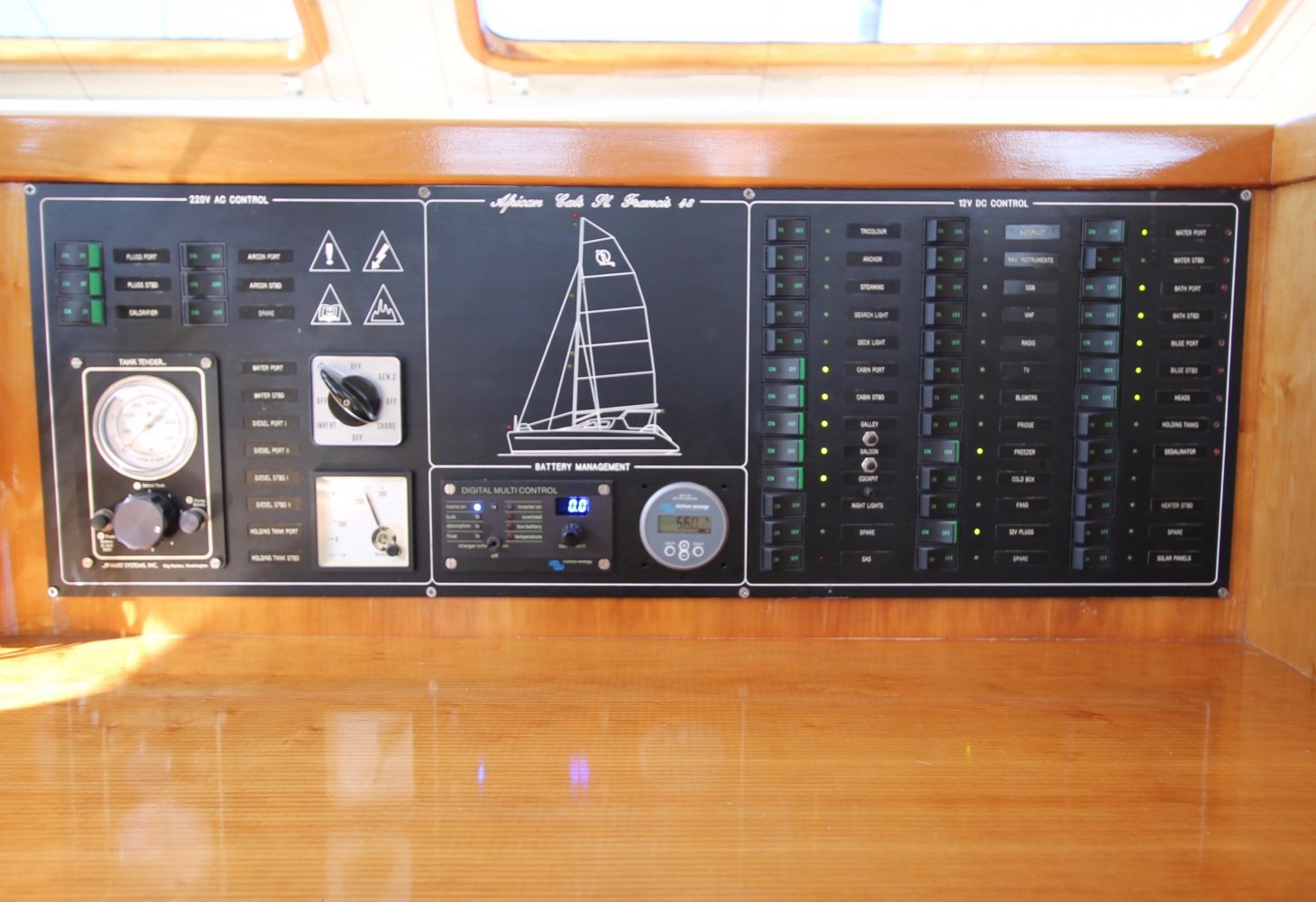

Motor en elektra

Aantal identieke motoren:
2
Start type:
Elektrisch

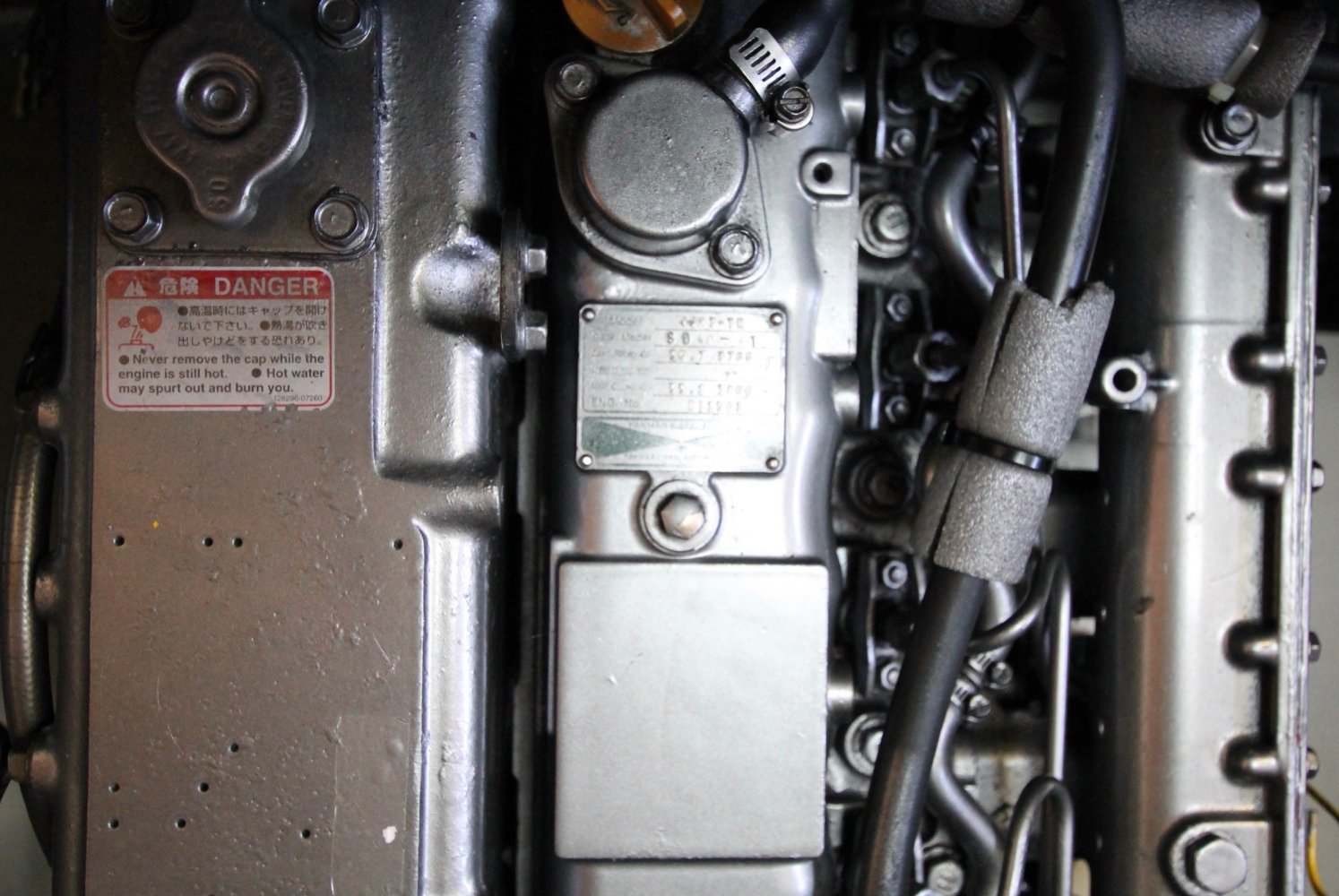

Type:
Binnenboord
Merk:
Yanmar
Model:
4JH3-TE
Serienummer:
E12475 and E12502
Bouwjaar:
2003
Vermogen:
2x 75 pk
Urenteller:
Draaiuren:
1.017
December 2020
Brandstof:
Diesel
Overbrenging:
Saildrive
Voortstuwing:
Klapschroef
SD40 Saildrives with Gori 3 blade feathering props
Koeling:
Indirect
Brandstoftank aantal:
4
Totale inhoud brandstoftank(s):
720 liter
Materiaal brandstoftank:
Epoxy
Max snelheid:
10 knopen
Kruissnelheid:
7 knopen
Meetinstrumenten:
With alarm for oil pressure and temperature
Brandstoftankmeter:
Toerenteller:
Accu:
100 Ah
7x Lithium Life PO4 (2017)
Acculader:
Victron Quattro 12/5000/220 (2017)
Dynamo:
Accumonitor:
Generator:
Elja Power on engine 5 kW
Omvormer:
Victron Quattro 12/5000/220 (2017)
Voltmeter:
Walstroom:
Walstroomkabel:

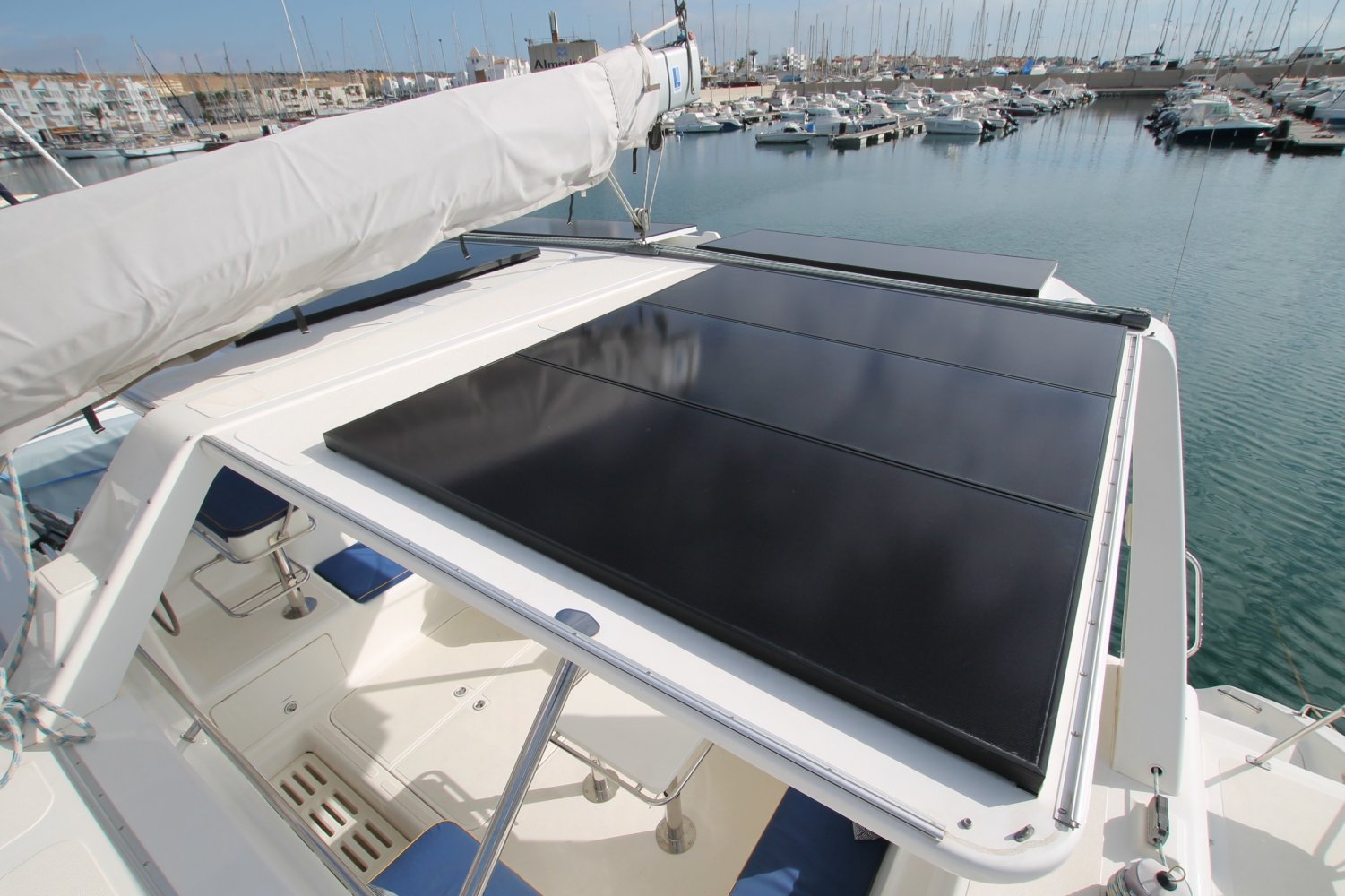

Zonnepaneel:
1.120 Watt
Fixed on cockpitroof (2017)
Voltage:
12V 220V

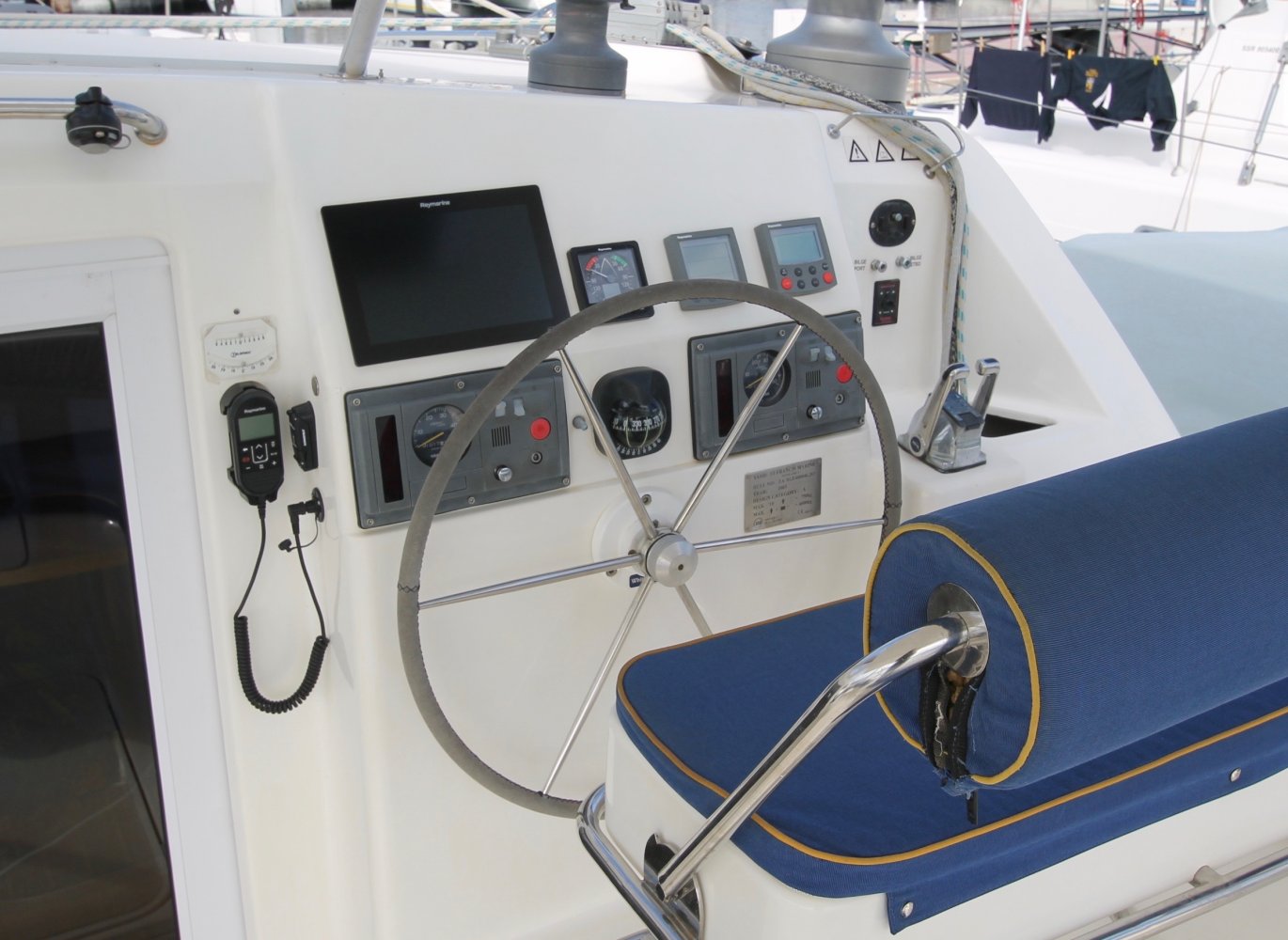

Navigatie en elektronica

Kompas:
Log/snelheid:
Raymarine ST60
Dieptemeter:
Raymarine ST60
Windmeter:
Raymarine I60 (2018)
Navigatieverlichting:
Autopilot:
Raymarine ST6001+
Kaartplotter:
Raymarine Axiom 12
(2018)
Radar:
Raymarine Quantum Chirp Q24C
(2018)
AIS:
Raymarine 650 Class B Transponder (2018)
Marifoon:
Raymarine Ray60 (2018)
In- and outside

Tuigage

Type tuigage:
Sloep
Aantal masten:
1
Mast materiaal:
Aluminium
Verstaging:
Staaldraad
Aantal zeilen:
6
Grootzeil:
Hagoort Sails NL (2018) 88M2, 12.46 Oz, Fibercon Pro Dacron Cross Cut, fully battened, 3 reefs, like new.
Genua:
Hagoort Sails NL (2019) 55M2, 10.8 Oz, Fibercon Pro Dacron tri-radial with UV strip with sailcover grey.
Stormfok:
19M2
Halfwinder, bollejan:
Quantum Screecher 95M2

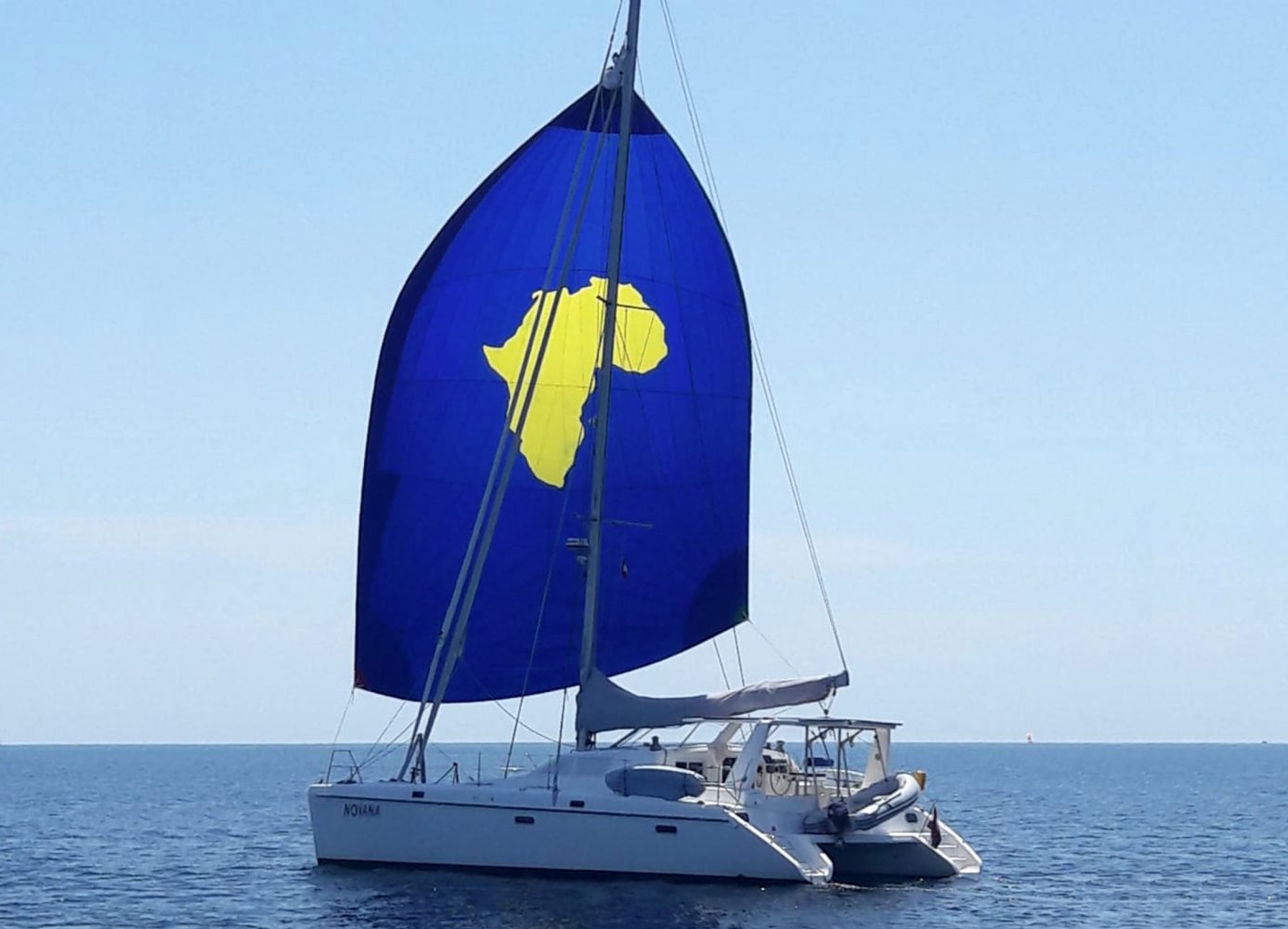

Gennaker:
200M2
Lieren:
Winches: 2x Meissner 34ST-67 electrtic on coachroof, 1x Meissner 23STA-41 on coachroof, 2x Meissner 25STC-43 in cockpit, 1x Meissner 25STC-43, 1x ANTAL XT40 on mast
Elektrische lieren:
2
Handmatige lieren:
4
Opmerkingen:

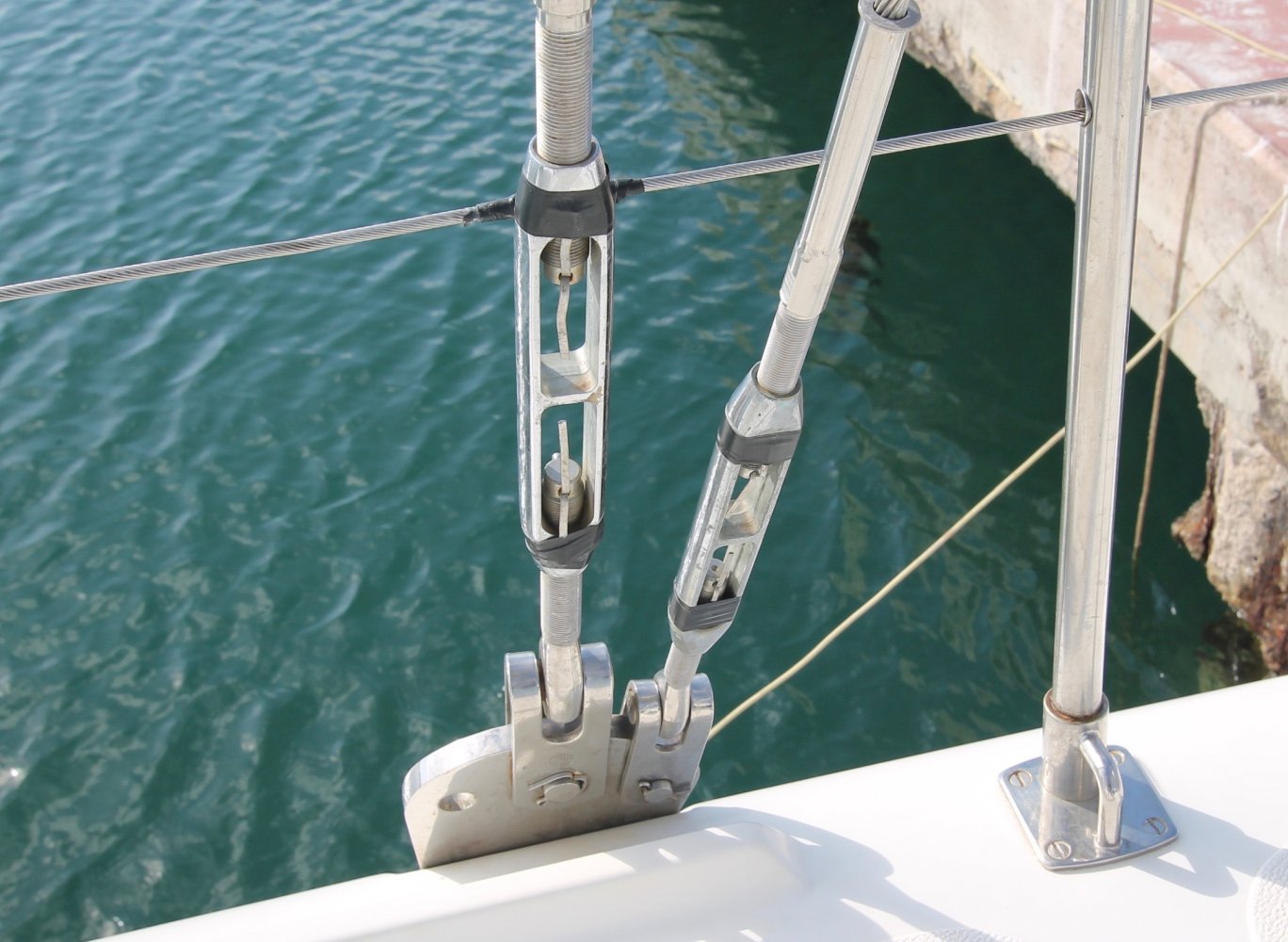

Standing rigging SS (2018)

Original furling boom replaced by standard boom in 2018.

Retractable pole 1.6M

Original Quantum Cruising Genoa 55M2 Laminate in good state

Grey sail cover for mainsail (2018)

Running rigging in good state, most replaced 2018

Uitrusting buitenom

Ankers & materiaal:
1 x Gegalvaniseerd
Rocna 40 Kg anchor with galvanised G40 chain of 80M long
Anker bevestiging:
Ketting
Ankerlier:
Elektrisch
Buiskap:
F
Bimini:
Rigid cockpitroof
Kuiptent:
Buitenkussens:
Zeerailing:
Preek- en hekstoel(en):
Zwemplatform:
Zwemtrap:

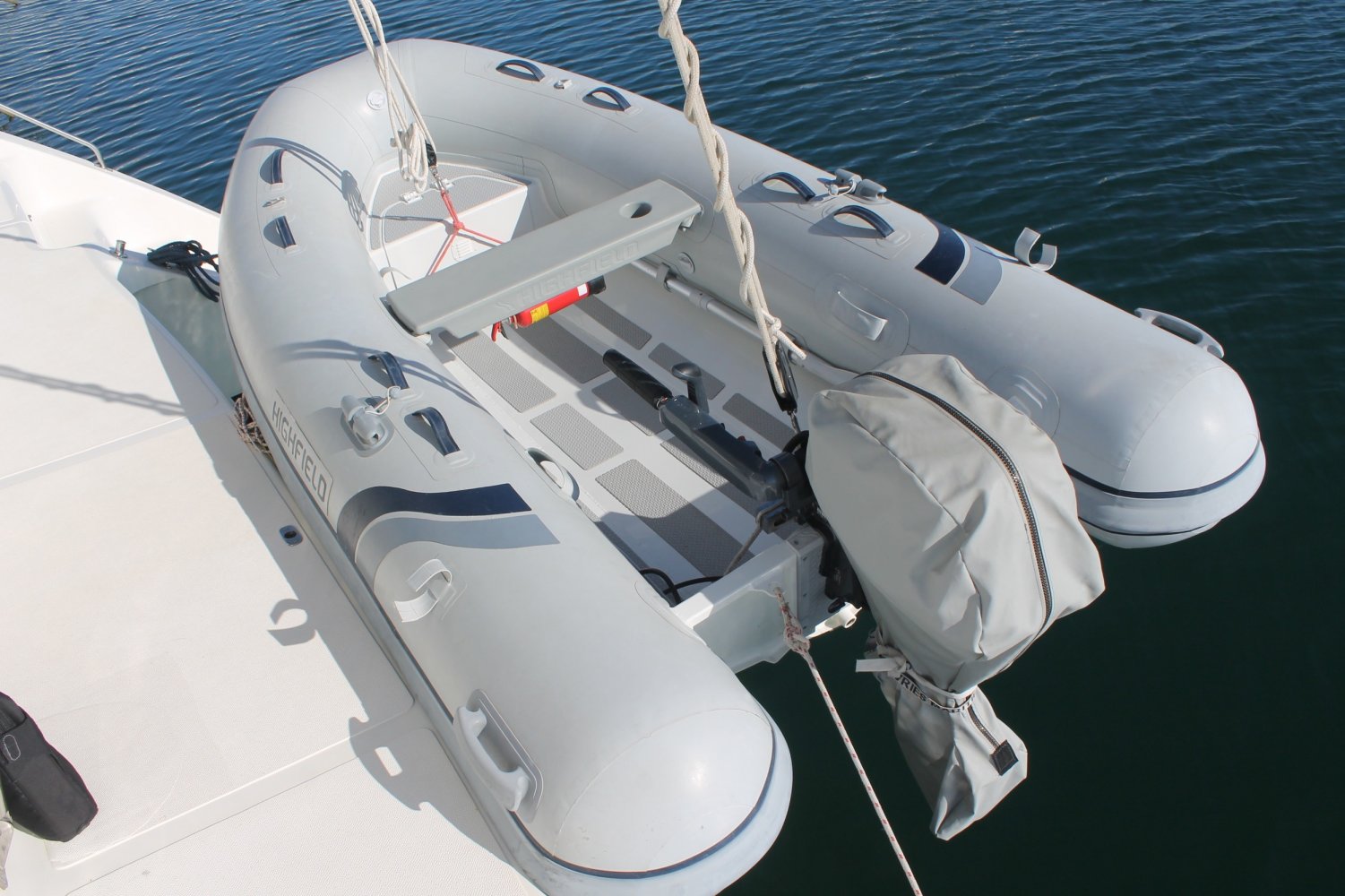

Bijboot:
Highfield CL310 (2018)
Bijboot buitenboordmotor:
Yamaha F9.9 JMHS (2018)
Davits:
Stootwillen, lijnen:
Roeispanen, peddel:
Kuiptafel:
Opmerkingen:

Extra: outer sunscreens for salon, passarelle/gangway, spare anchor 20Kg (Bruce Type) SS + 30M SS chain and 60M rope. Dinghy anchor.

Veiligheid

Reddingsboei:
Reddingsvlot:
Seasafe 06pSR ISO Container 24H (2018)
EPIRB:
Ocean Signal Class 2 GPS (2018)
Bilgepomp:

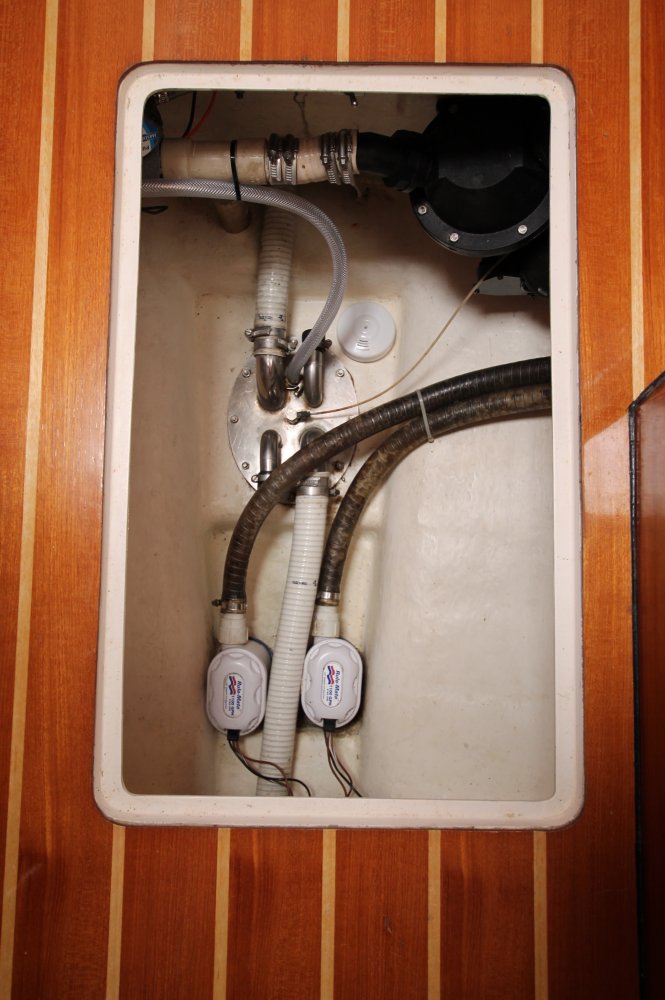

Elektrisch Electric 6x with water alarms (2018)
Brandblusser:
4x Automatic and 3x Manual (2018), 2 smoke detectors (2018)
Radarreflector:
Noodvuurwerk:
Odeo flare (2018)
Zelflozende kuip:
Opmerkingen:

All seacocks Trudesign (2018)

Documenten

Disclaimer:
Hoewel er uiterste zorg besteed is aan de correctheid, volledigheid en actualiteit van onze informatie kunnen hieraan geen rechten worden ontleend.
